Lionel Scale Prewar Steam Locomotives
All information and trains supplied by Russ MacNair unless otherwise noted
Lionel No. 700E Steam Locomotives
General Information

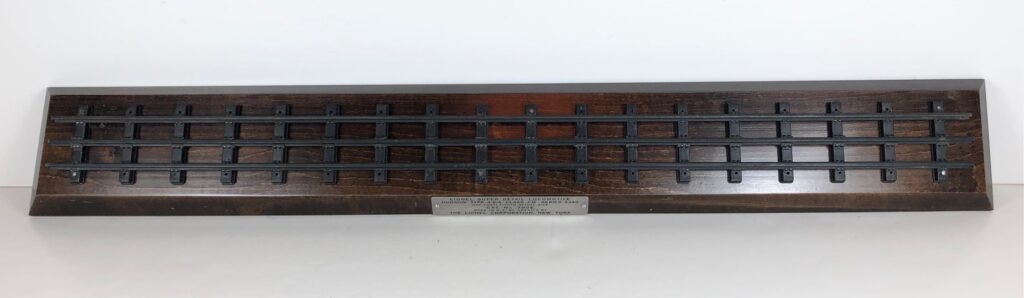

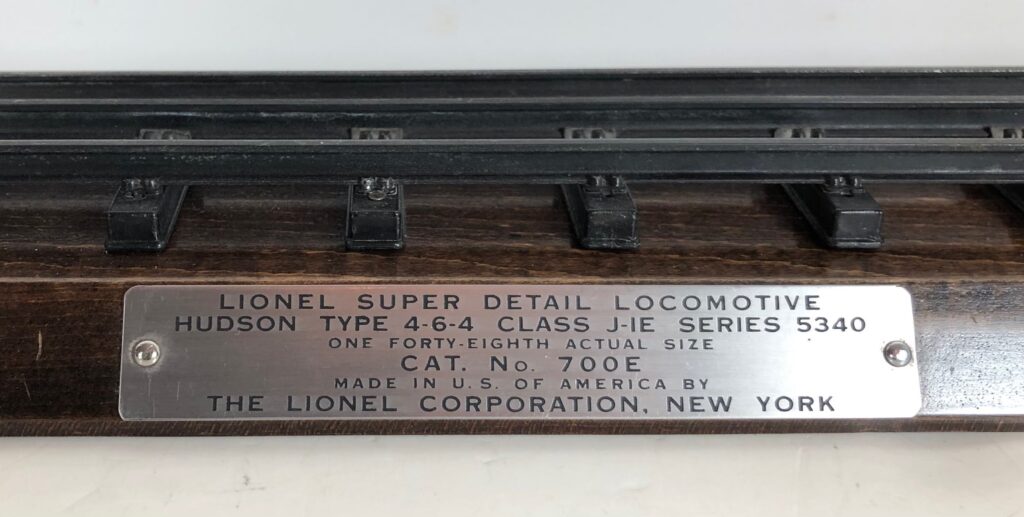

The Lionel No. 700E 4-6-4 New York Central Scale Steam Locomotive was introduced in 1937 and was issued through 1942. The No. 700E Scale Steam Locomotive was based on the New York Central 1931 J1-e Hudson Locomotive. The No. 700E Steam Locomotive was available for separate sale, cataloged as No. 700EW. When sold separately, the No. 700EW included a wooden display board with a section of T-Rail Track and an identification plaque. The No. 700E Steam Locomotive was also included as a component of Set No. 709W with four “Rail Chief” streamlined passenger cars in 1937-1941 and as a component of Set No. 707W with four scale freight cars in 1940-1941. The No. 700E Steam Locomotive was always paired with the No. 700T New York Central Scale Tender with whistle.

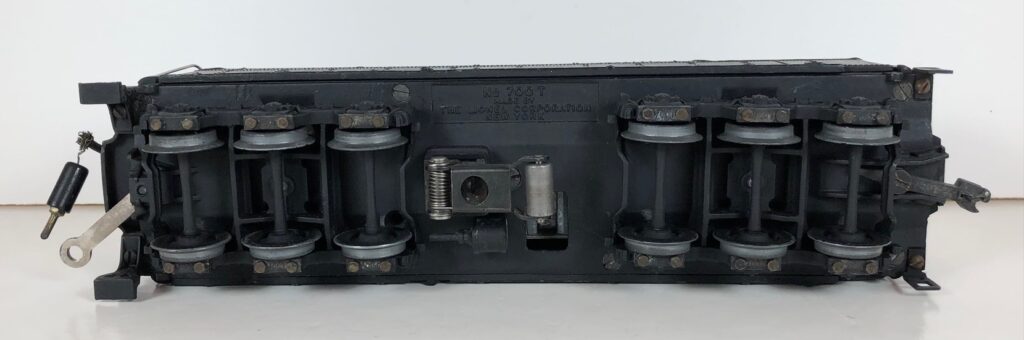

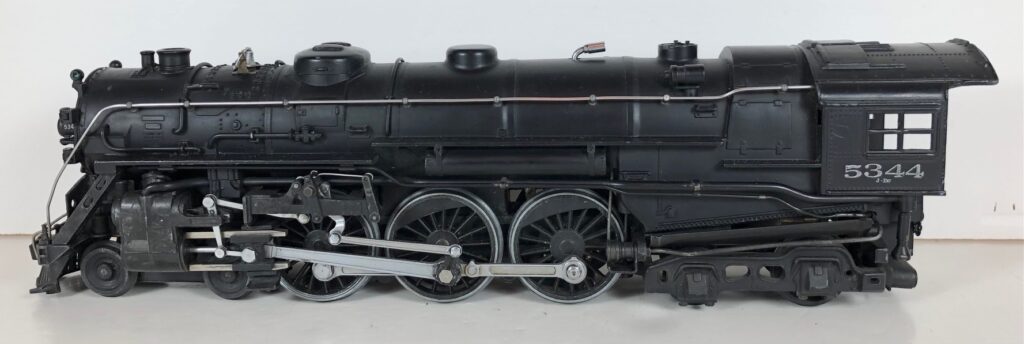

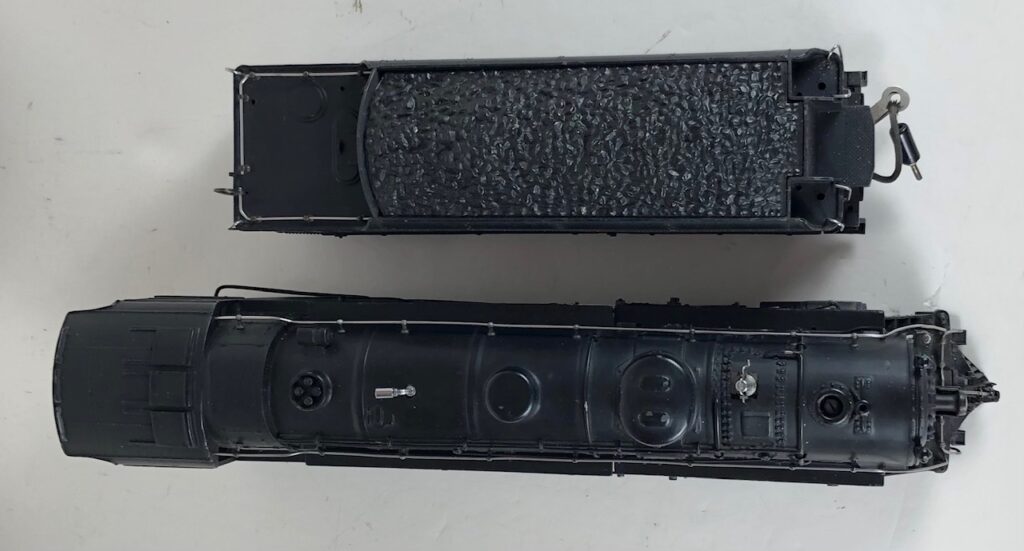

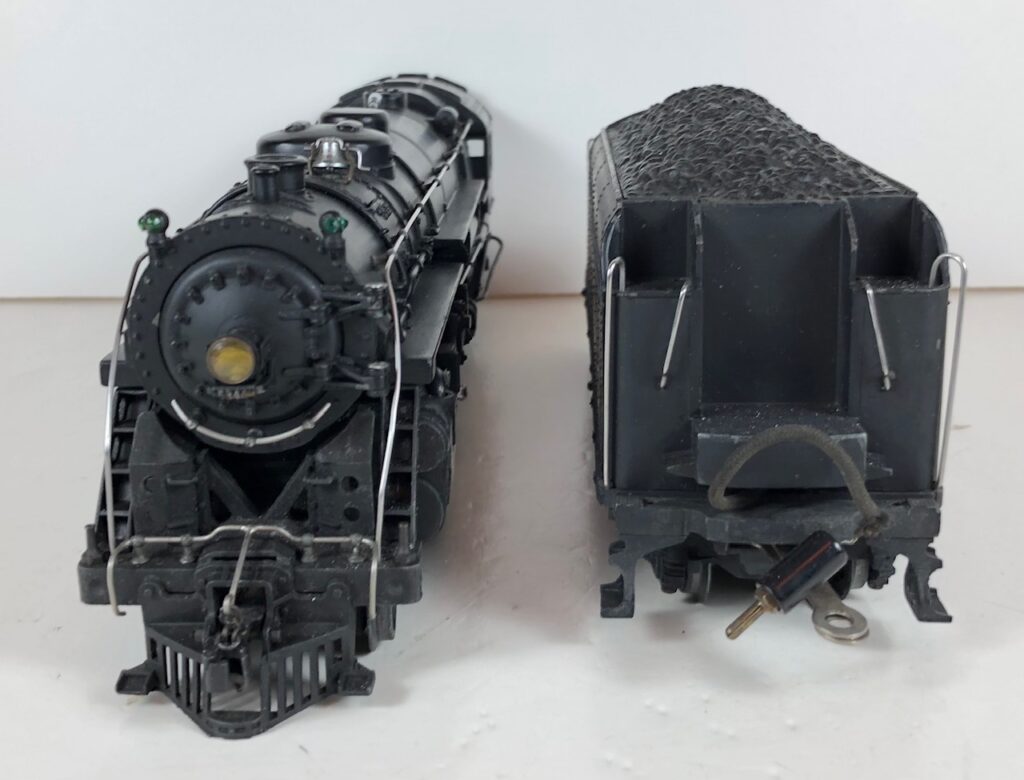

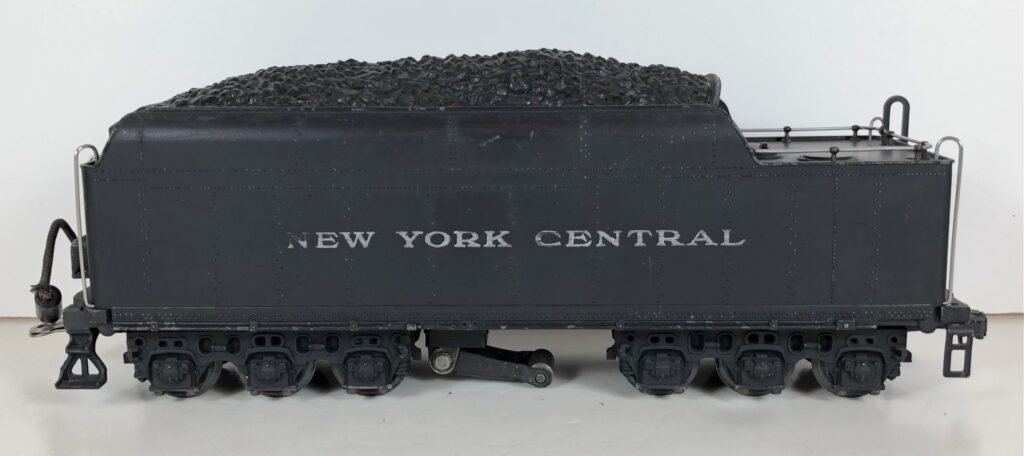

The No. 700E Steam engine and tender combined measure 24-inches in total length. The engine has a diecast body with marker lights, steel handrails, decorative bell, molded in boiler details, and added scale details. The engine has an operating headlight and a manual scale front coupler. The number “5344” is rubber stamped on the sides of the cab under the windows and appears on the sides of the headlight. Reversing of the locomotive is accomplished by a conventional E-Unit. The locomotive has scale flanges on all six drive wheels. The tender shell is diecast and has steel handrails, molded details, steps on the corners, and a simulated coal pile. The tender is equipped with an operating whistle. The tender has 6-wheel scale trucks, scale wheels and a manual scale coupler. “New York Central” is rubber stamped on the sides of the tender. This locomotive was made for use on Lionel T-Rail track.
From 1937 through 1942, Lionel made minor mechanical changes to the locomotive. Early 700E Locomotives from 1937 through 1939 had a serial number stamped on the underside. Later 700E Locomotives from 1940 and after had no serial number.
In 1938 Lionel introduced the No. 700E Scale Steam Locomotive in kit form cataloged as No. 700K. The complete kit was offered in six Construction Kits numbered 700 K-1 through 700 K-6. The No. 700K Scale Steam Locomotive was undecorated with all component parts in primer gray paint.
Lionel No. 700E Steam Locomotives
1. No. 700E / 700T New York Central Hudson 4-6-4 Steam Locomotive in black (1937-1942).
2. No. 700K / 700T New York Central Hudson 4-6-4 Steam Locomotive undecorated kit (1938-1942).
3. No. 700E / 700T New York Central Hudson 4-6-4 Steam Locomotive Construction Kits (1938-1942).

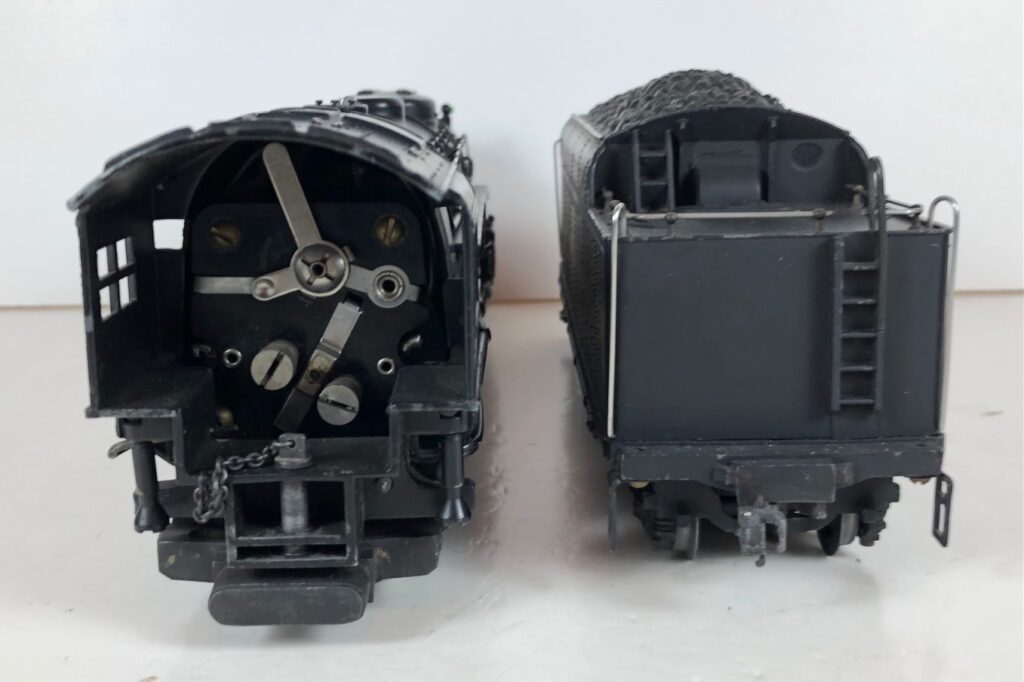

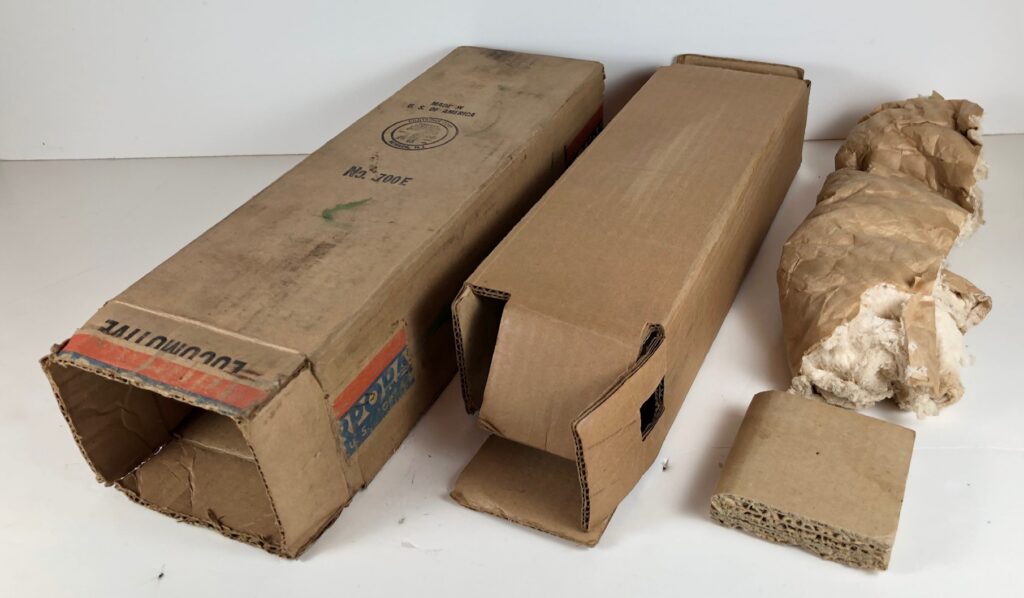

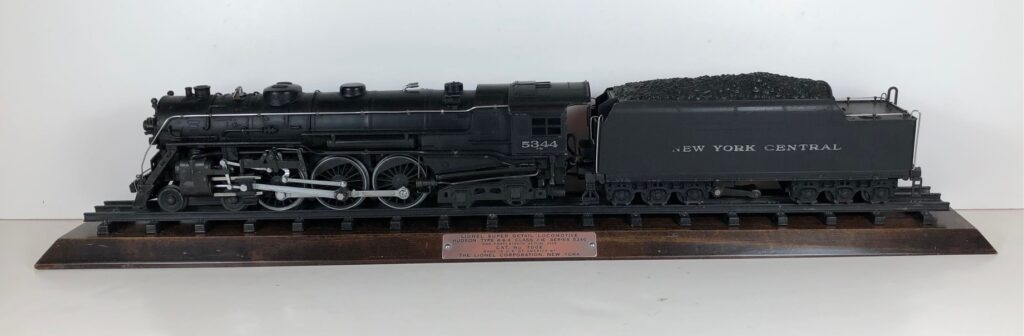

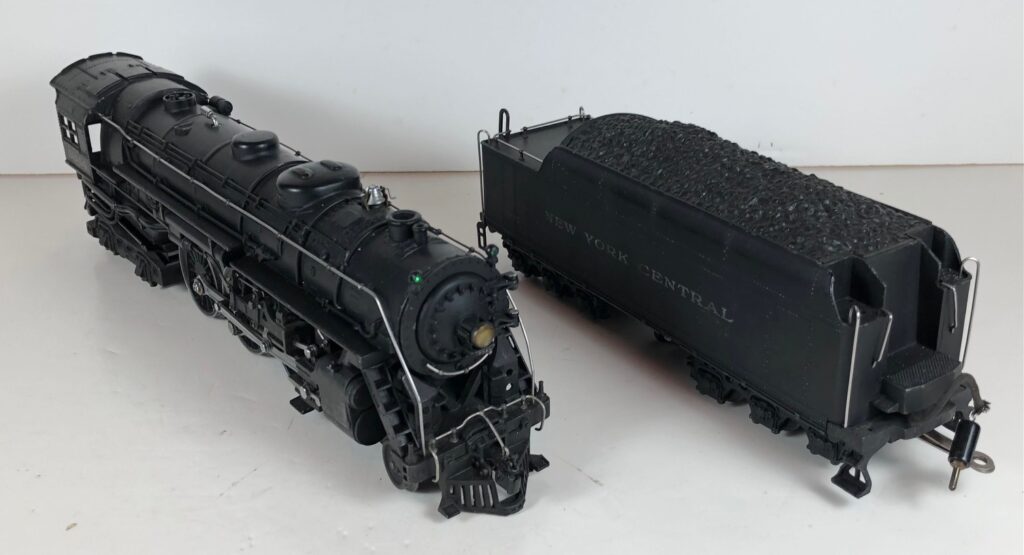

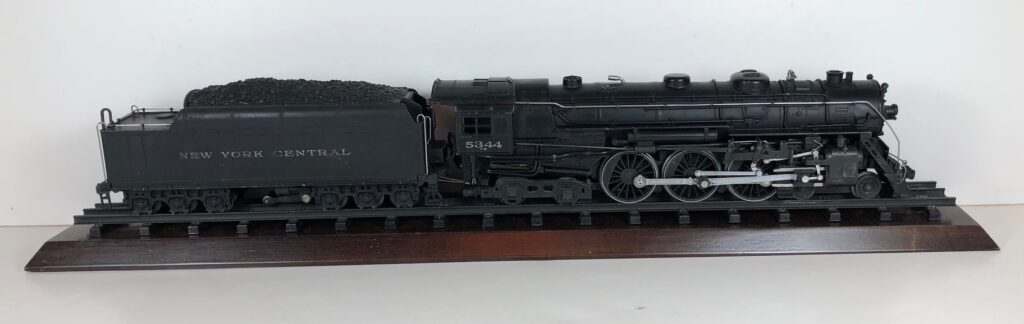

1. No. 700E / 700T New York Central Hudson 4-6-4 Steam Locomotive in black (1937-1942).
2. No. 700K / 700T New York Central Hudson 4-6-4 Steam Locomotive undecorated kit (1938-1942).
No. 700K KIT 1938 – 1942
RIGHT SIDE VIEW
No. 700K KIT 1938 – 1942
LEFT SIDE VIEW
700 T KIT 1938 – 1942
RIGHT SIDE VIEW
700 T KIT 1938 – 1942
RIGHT SIDE VIEW
700 T KIT 1938 – 1942
BOTTOM VIEW
3. No. 700E / 700T New York Central Hudson 4-6-4 Steam Locomotive Construction Kits (1938-1942).
KITS 1 THROUGH 6 ARE FOR THE BUILDING OF A 700 K LOCOMOTIVE AND TENDER
THE FIRST FOUR KITS ARE FOR THE 700 K LOCOMOTIVE
THE 700 – 1 CONSTRUCTION KIT
THE 700 – 2 CONSTRUCTION KIT
THE 700 – 3 CONSTRUCTION KIT
THE 700 – 4 CONSTRUCTION KIT
THE FOLLOWING TWO KITS ARE FOR THE 700 T TENDER
THE 700 – 5 CONSTRUCTION KIT
THE 700 – 6 CONSTRUCTION KIT
COURTESY OF “THE STANTON COLLECTION”
PARTIALLY ASSEMBLED 700 K SCALE LOCOMOTIVE 1938 – 1942
RIGHT SIDE VIEW
LEFT SIDE VIEW
FRONT VIEW
BACK VIEW
COURTESY OF “THE STANTON COLLECTION”
PARTIALLY ASSEMBLED 700 T SCALE TENDER 1938 – 1942
RIGHT SIDE VIEW
LEFT SIDE VIEW
TOP VIEW
BOTTOM VIEW
FRONT VIEW
BACK VIEW
COURTESY OF “THE STANTON COLLECTION”
