Lionel Ives Transition Steam Locomotives
All information and trains supplied by Russ MacNair unless otherwise noted
Lionel No. 1661 Steam Locomotives
Lionel No. 1681 Steam Locomotives
Lionel No. 1661 Steam Locomotives
General Information

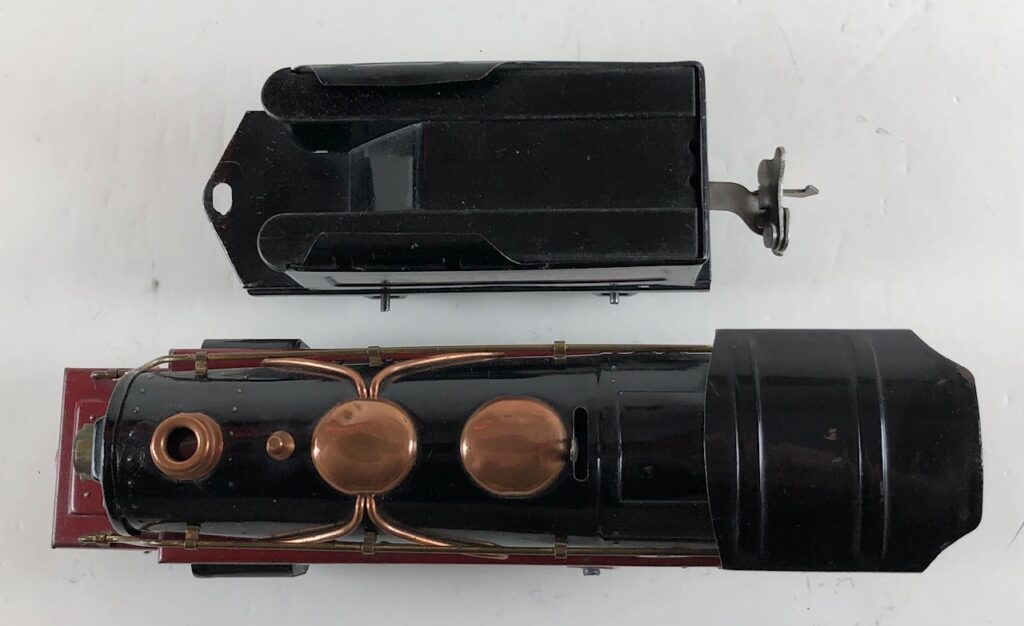

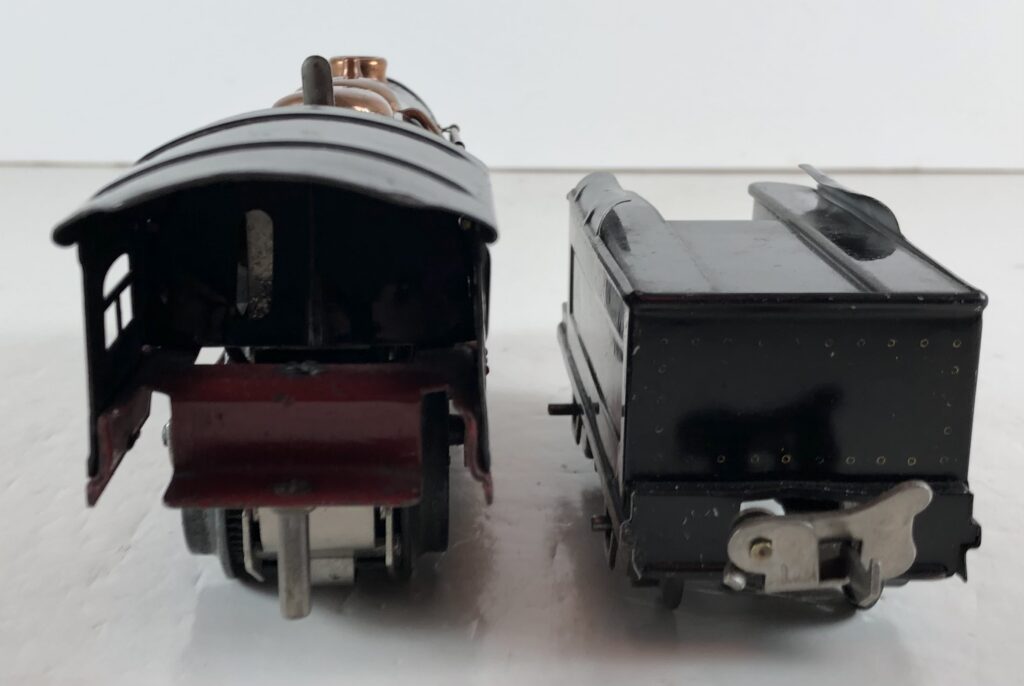

The No. 1661 2-4-0 Steam Locomotive was offered by Lionel in the 1932 Ives Catalog. The No. 1661E version of the locomotive appeared in the 1933 Lionel Catalog. The engine utilized a sheet metal boiler, cab, frame, steam chest, boiler front and pilot. The locomotive boiler, cab and steam chest are painted black. The frame and pilot are painted dark red. The locomotive has copper and brass trim.

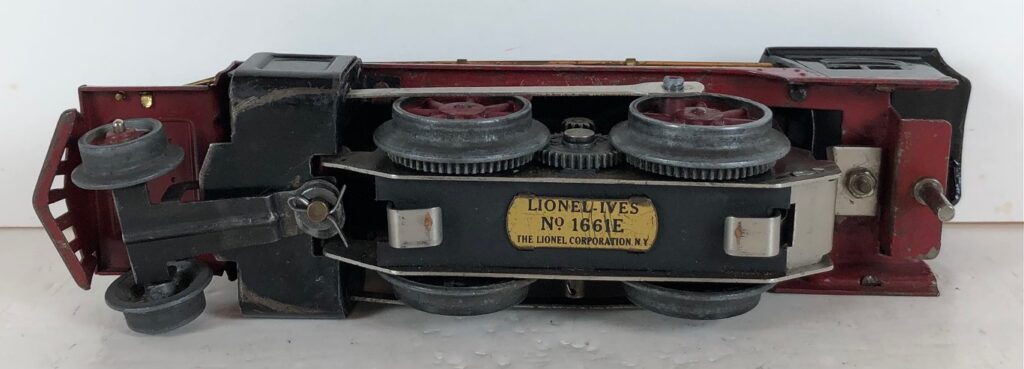

The No. 1661 Locomotive has an operating cast headlight located in the center of the boiler front and two small marker lights located below the headlight. The number “1661” or “1661E” is stamped on a white celluloid insert at the top of the boiler front. The No. 1661 Locomotive has no reverse and runs in one direction only. The No. 1661E Locomotive has a remotely operated reverse. It has a lever on the top of the boiler that engages or disengages the reversing unit. The No. 1661E Locomotives utilize Lionel’s E-Unit reverse unit.

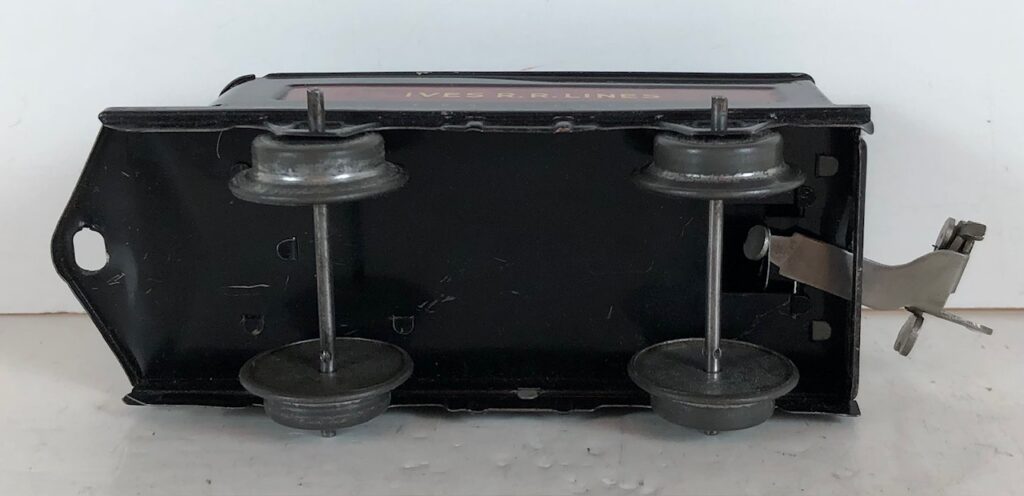

The No. 1661 and No. 1661E Steam Locomotives were both paired with a No. 1661T 4-Wheel Tender. The No. 1661T Tender has a black sheet metal body with lithographed sides. The tender has a red insert on the sides marked “Ives R.R. Lines”. The 1661T Tender has a latch coupler. The No. 1661 / 1661T Steam engine and tender combined measure 12-inches in total length.
Lionel No. 1661 Steam Locomotives
PHOTOS NEEDED

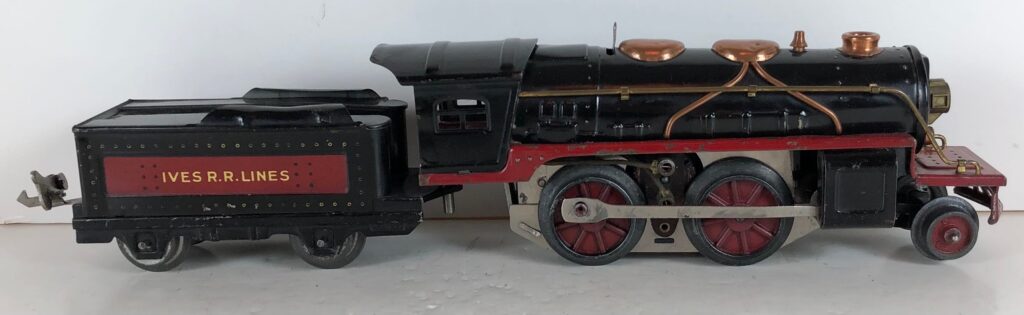

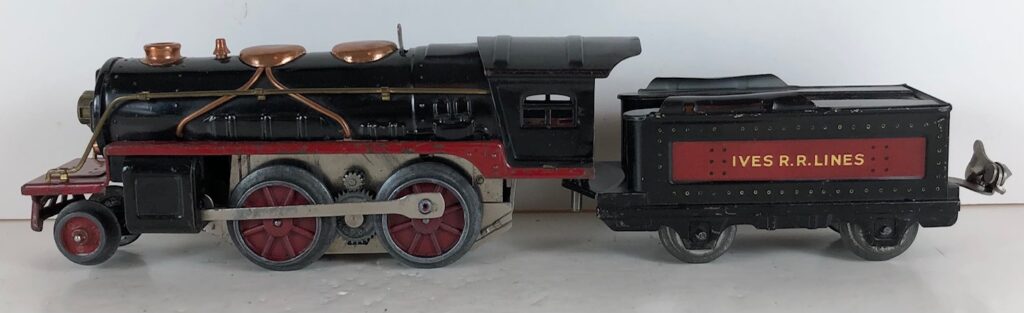

1. No. 1661 / 1661T Ives 2-4-0 Steam Locomotive in black with dark red frame and copper and brass trim (1932). The loco has no reverse. The No. 1661T Tender is black with “Ives R.R. Lines” on a red insert on the sides.
PHOTOS NEEDED

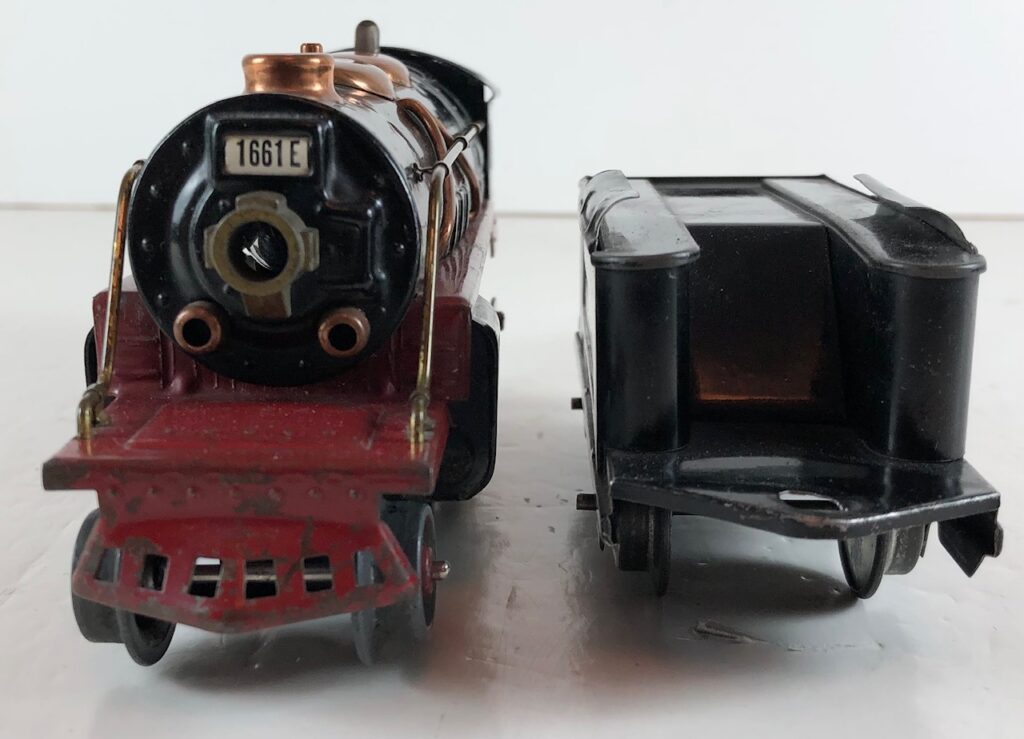

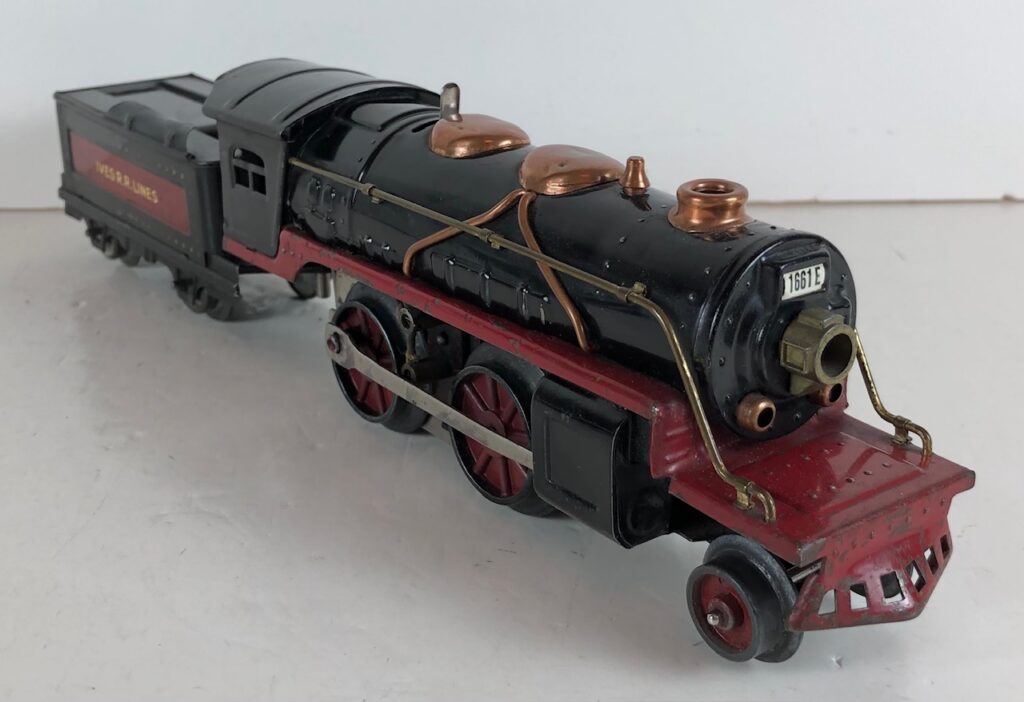

2. No. 1661E / 1661T Lionel-Ives 2-4-0 Steam Locomotive in black with dark red frame and copper and brass trim (1933). The loco has an E-Unit reverse. The No. 1661T Tender is black with “Ives R.R. Lines” on a red insert on the sides.
Lionel No. 1681 Steam Locomotives
General Information

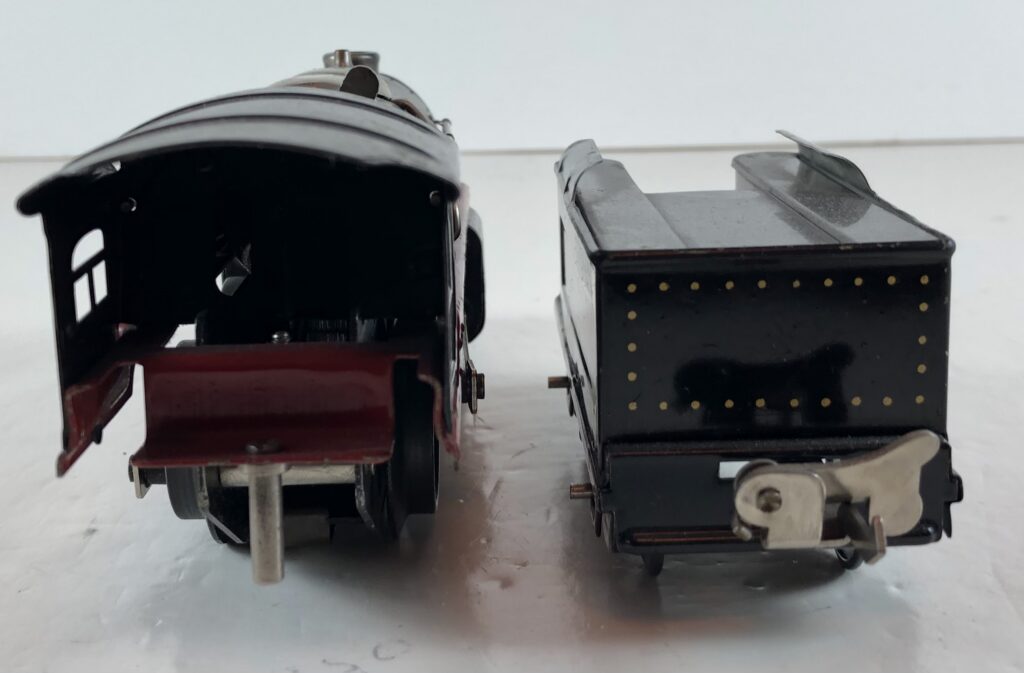

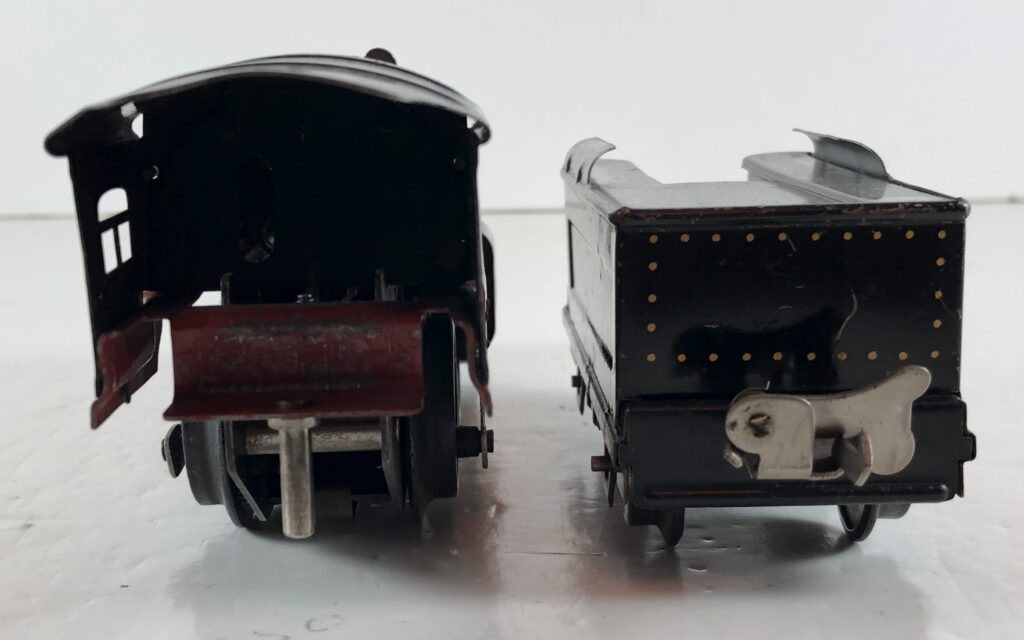

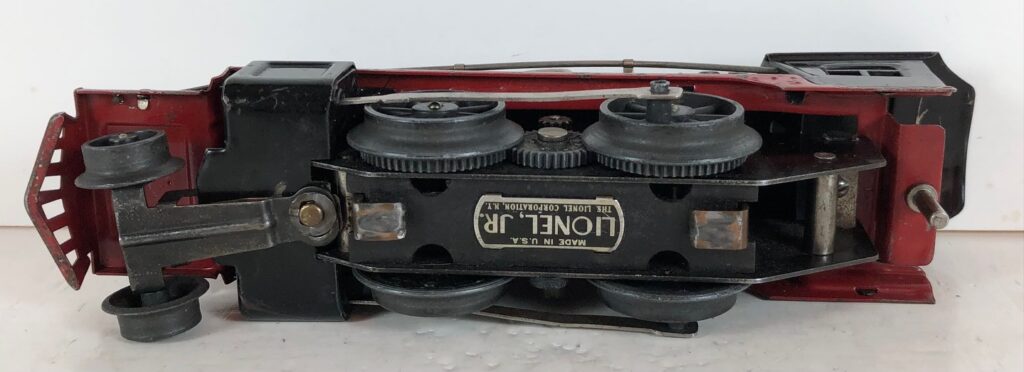

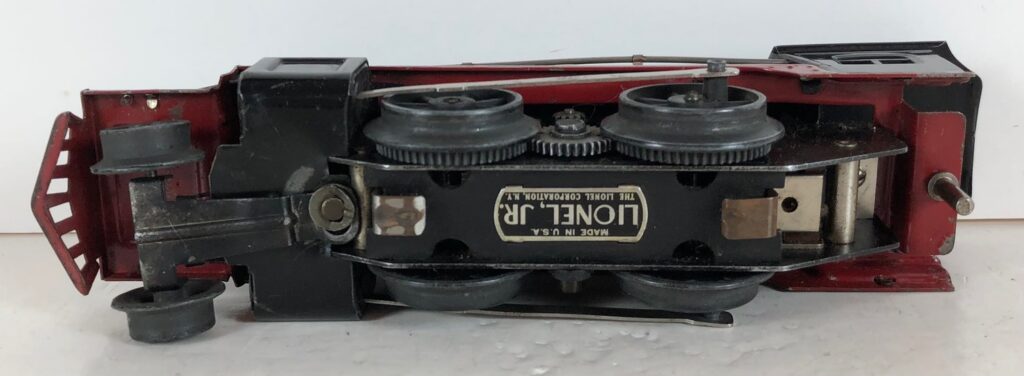

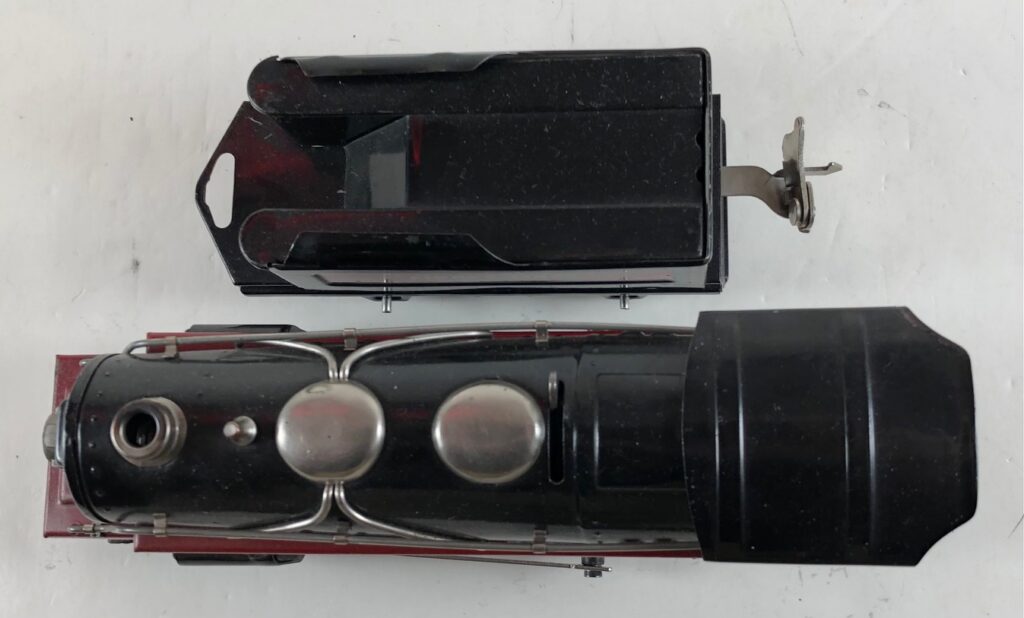

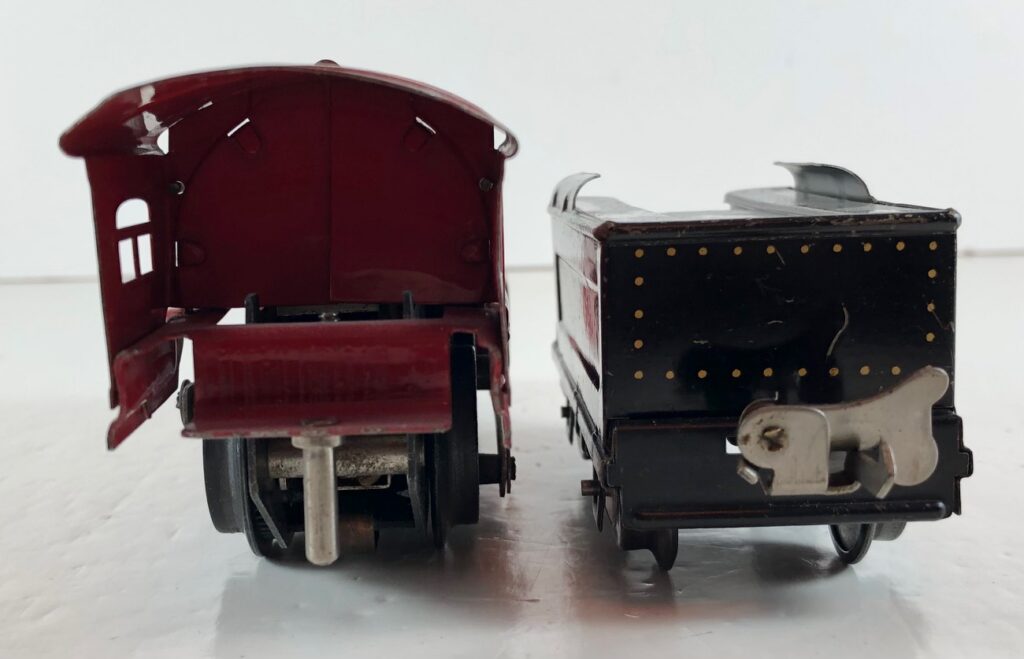

The No. 1681 2-4-0 Steam Locomotive was offered by Lionel in 1934 and 1935. The engine utilized a sheet metal boiler, cab, frame, steam chest, boiler front and pilot. The locomotives have either a black painted boiler, cab and steam chest or a bright red painted boiler, cab and steam chest. The locomotives with a black cab have an empty slot at the rear of the cab. The locomotives with a red cab have no slot. The frame and pilot are either painted dark or bright red. The locomotive has nickel trim.
The No. 1681 Locomotive has an operating cast headlight located in the center of the boiler front and two small marker lights located below the headlight. The number “1681” or “1681E” is stamped on a white celluloid insert at the top of the boiler front. The No. 1681 Locomotive has a manual reverse which is operated by a lever on the top of the boiler. The No. 1681E Locomotive has a remotely operated reverse. It has a lever on the top of the boiler that engages or disengages the reversing unit. The No. 1681E Locomotives utilize Lionel’s E-Unit reverse unit.

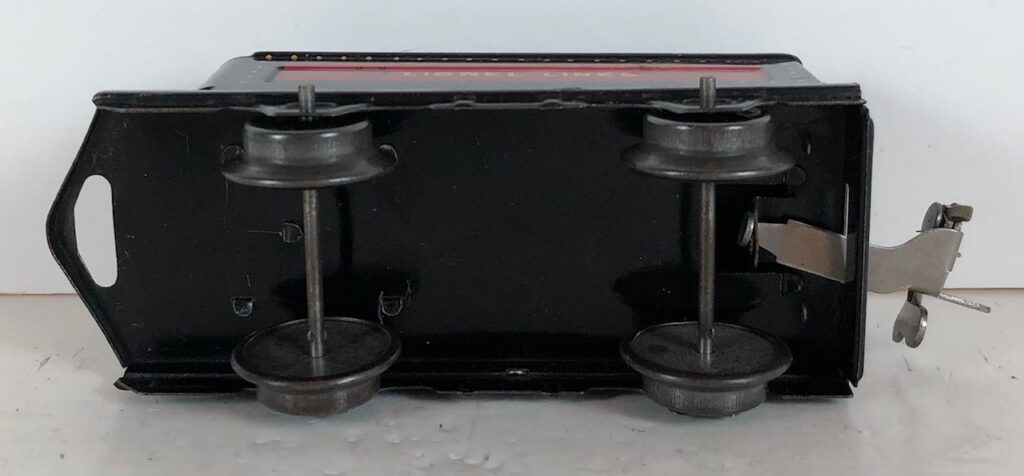

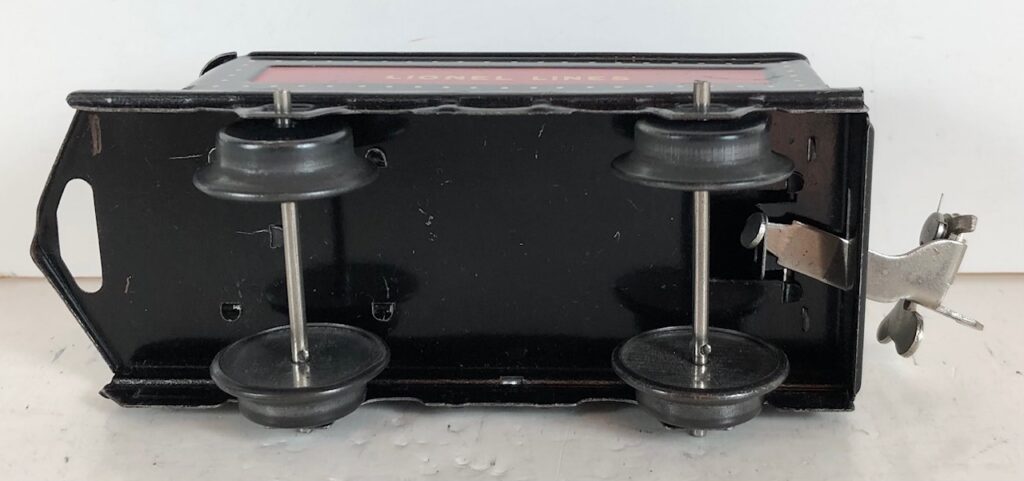

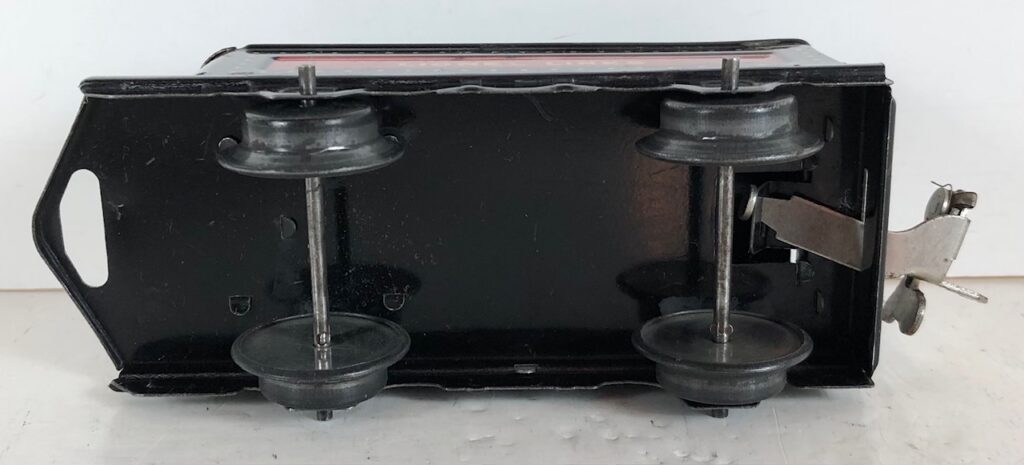

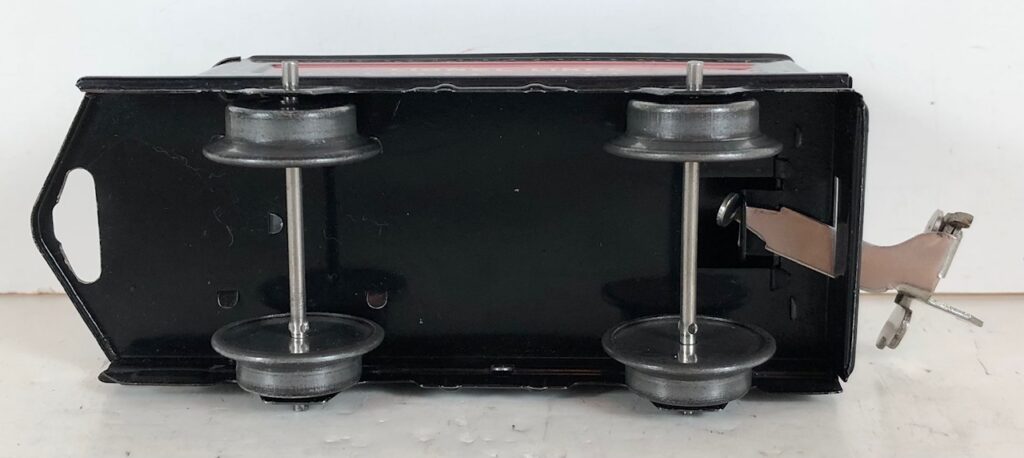

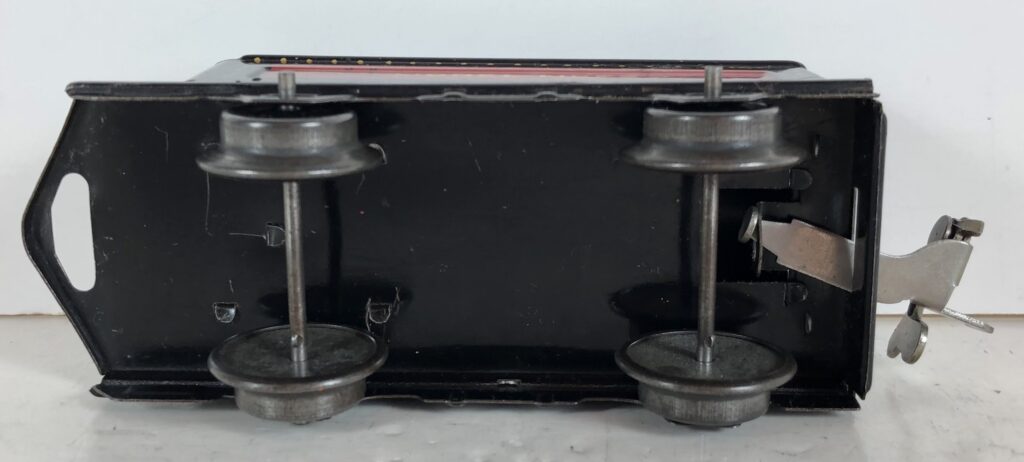

The No. 1681 and No. 1681E Steam Locomotives were both paired with a No. 1661T 4-Wheel Tender. The No. 1661T Tender has a black sheet metal body with lithographed sides. The tender has a red insert on the sides marked “Lionel Lines”. The 1661T Tender has a latch coupler. The No. 1681 / 1661T Steam engine and tender combined measure 12-inches in total length.
Lionel No. 1681 Steam Locomotives

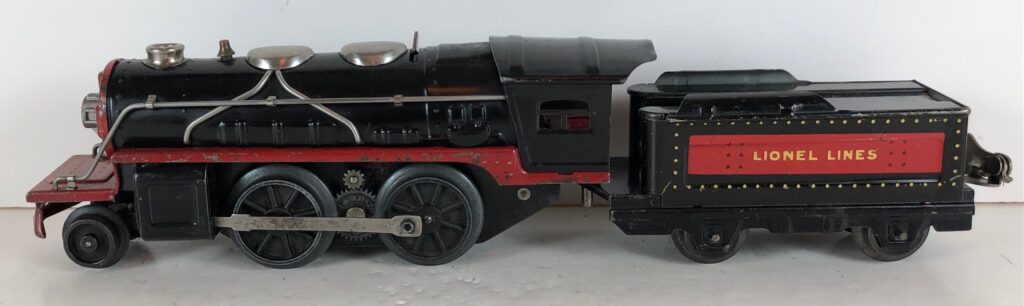

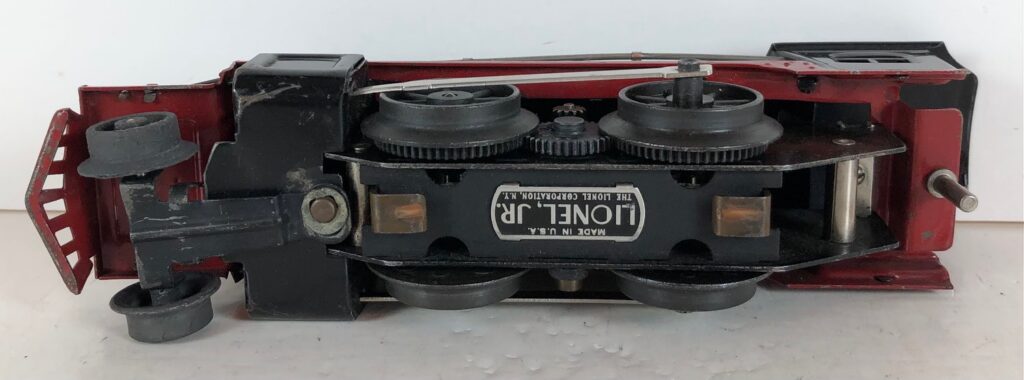

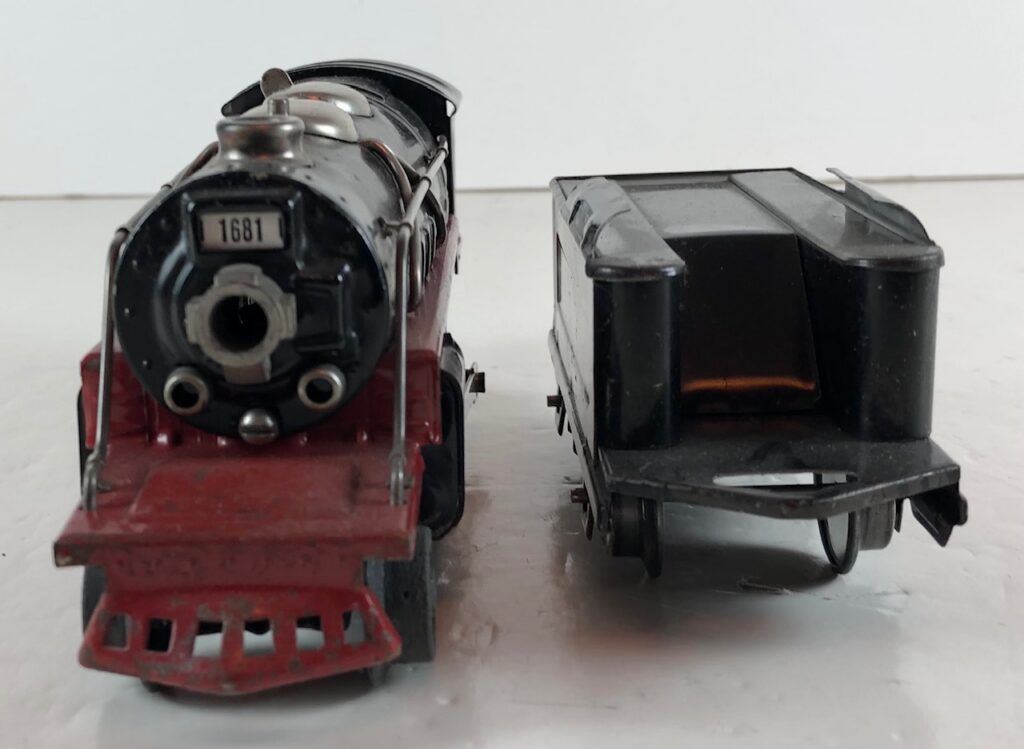

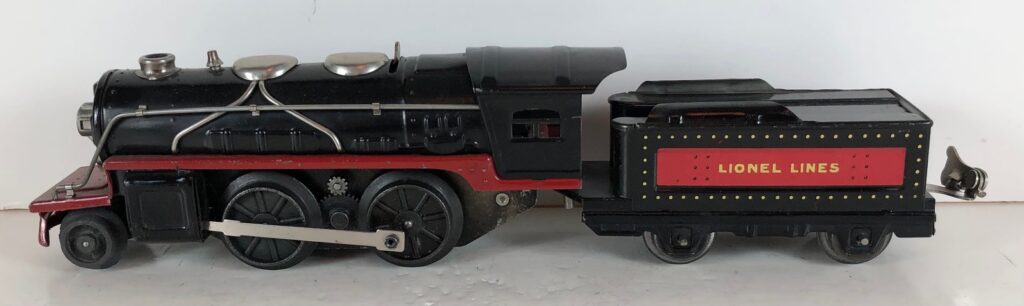

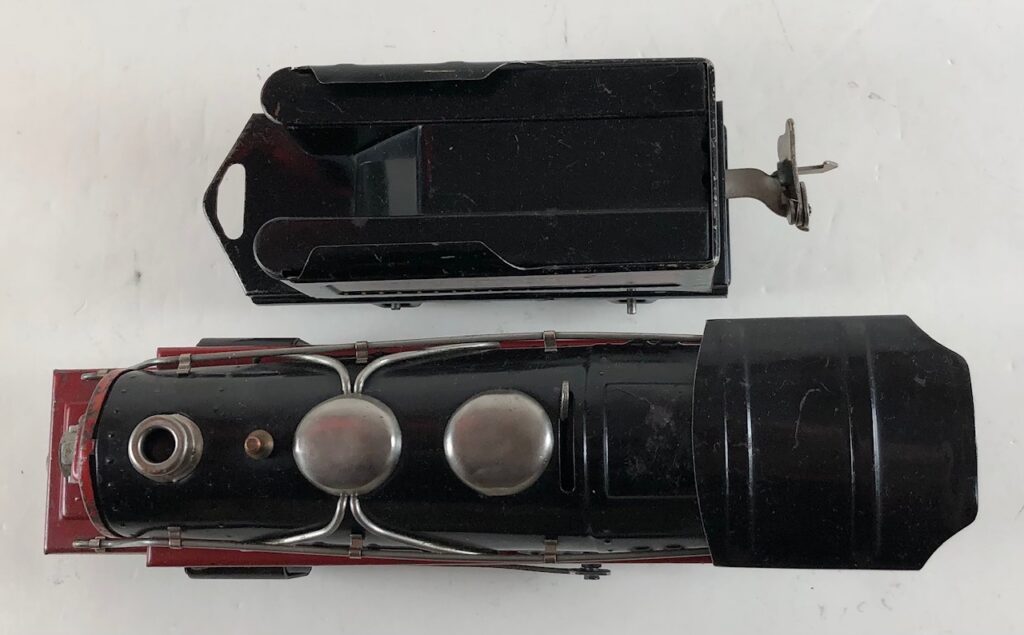

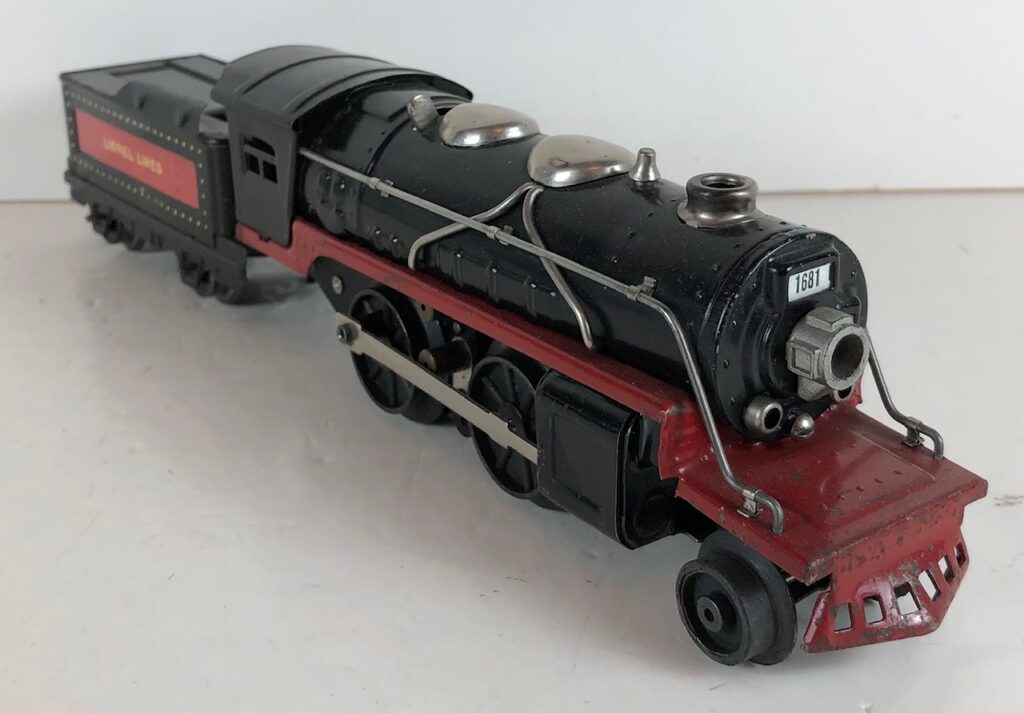

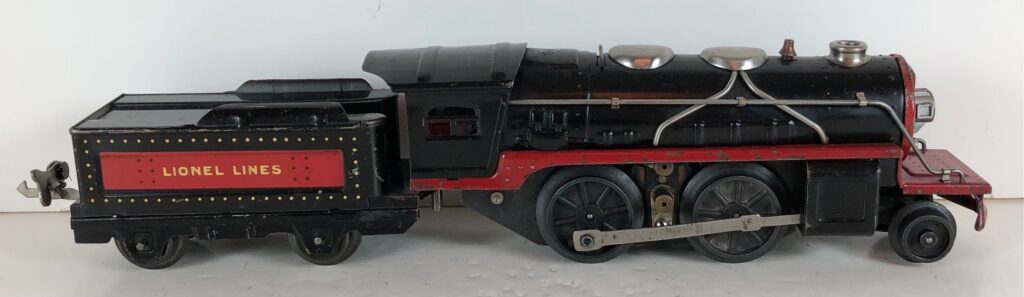

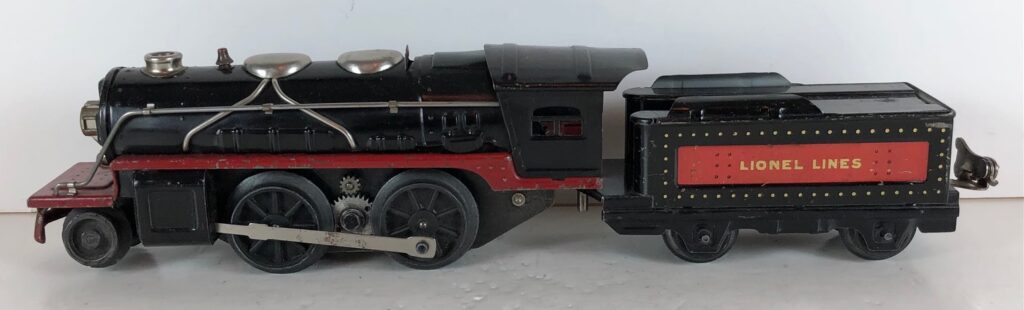

1. No. 1681 / 1661T Ives 2-4-0 Steam Locomotive in black with dark red frame and nickel trim (1934). The loco has a manual reverse. The No. 1661T Tender is black with “Lionel Lines” on a red insert on the sides.

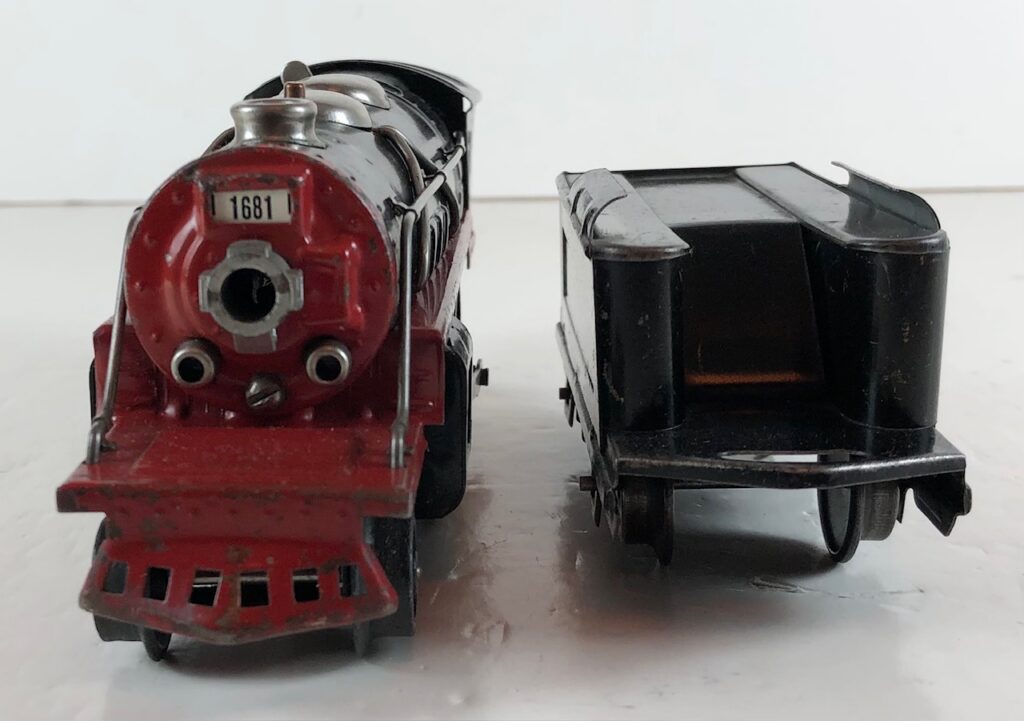

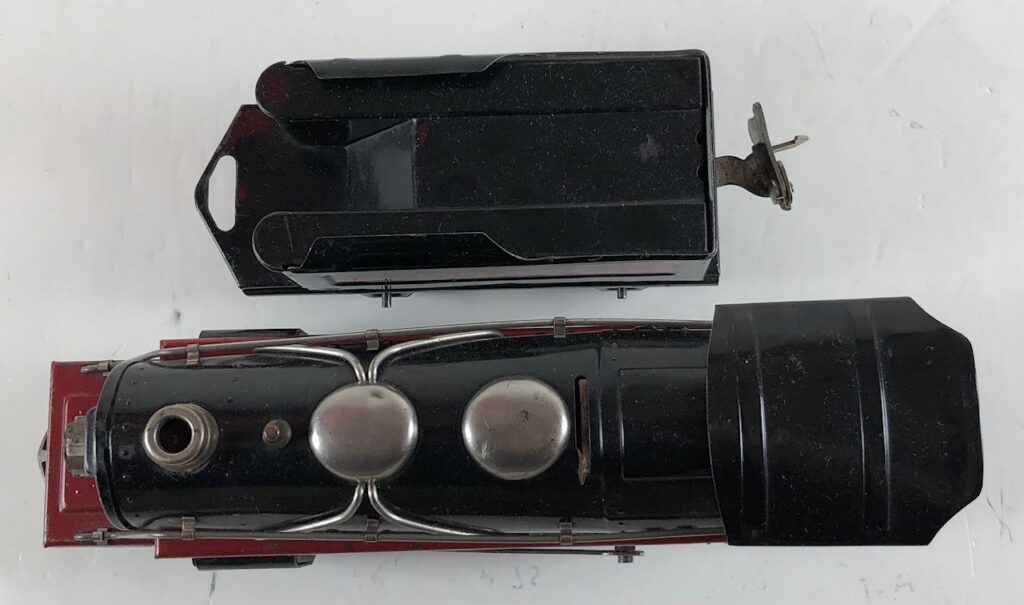

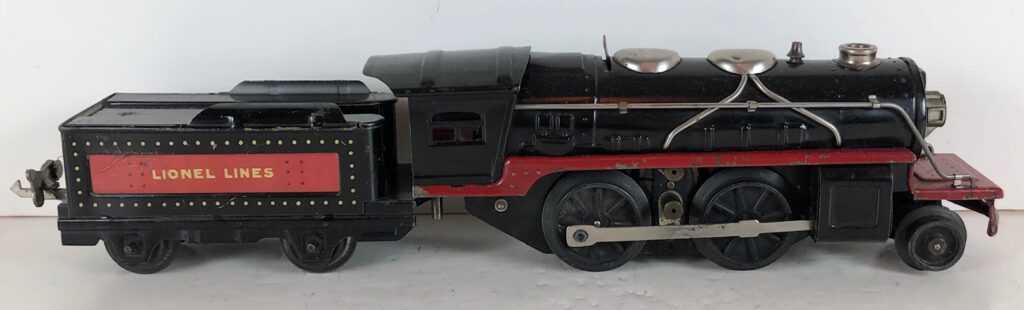

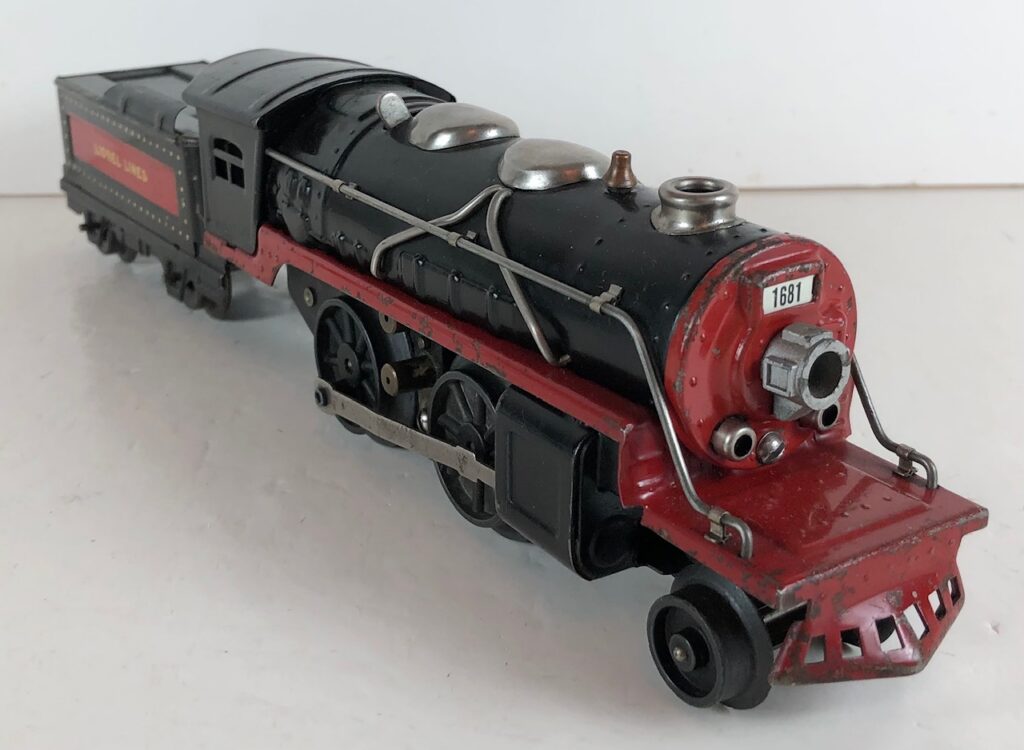

2. No. 1681 / 1661T Ives 2-4-0 Steam Locomotive in black with dark red frame, dark red boiler front and nickel trim (1934). The loco has a manual reverse. The No. 1661T Tender is black with “Lionel Lines” on a red insert on the sides.

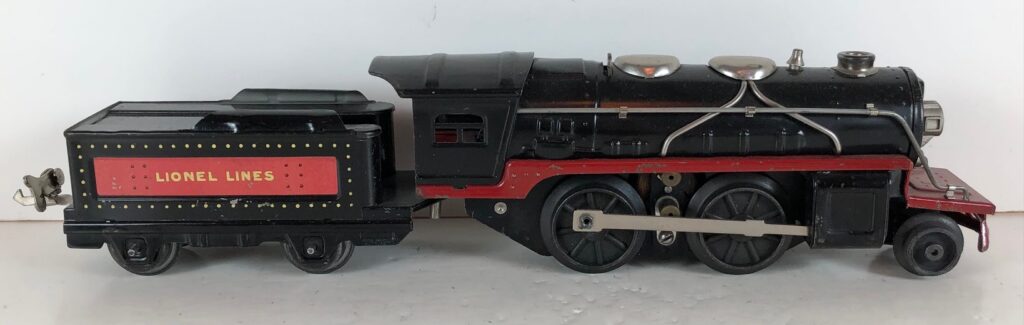

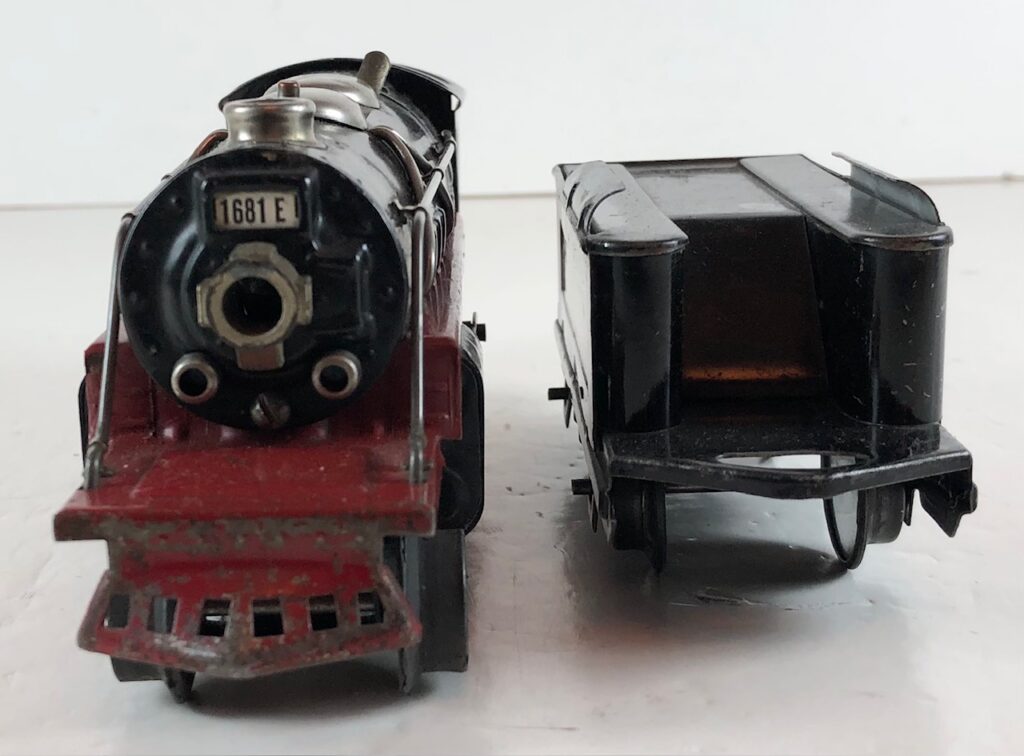

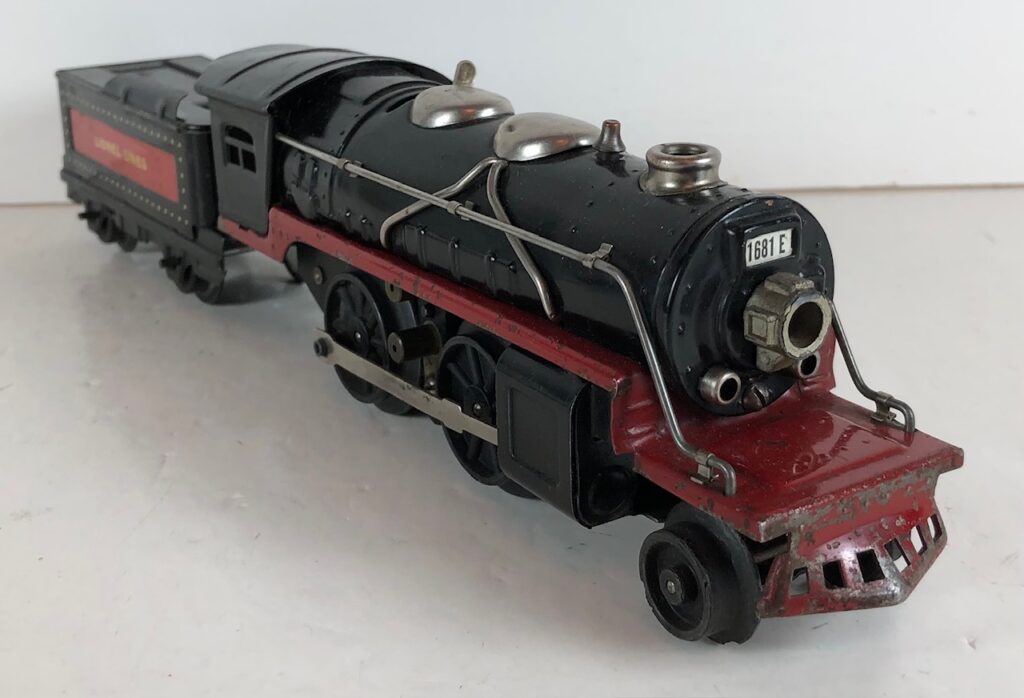

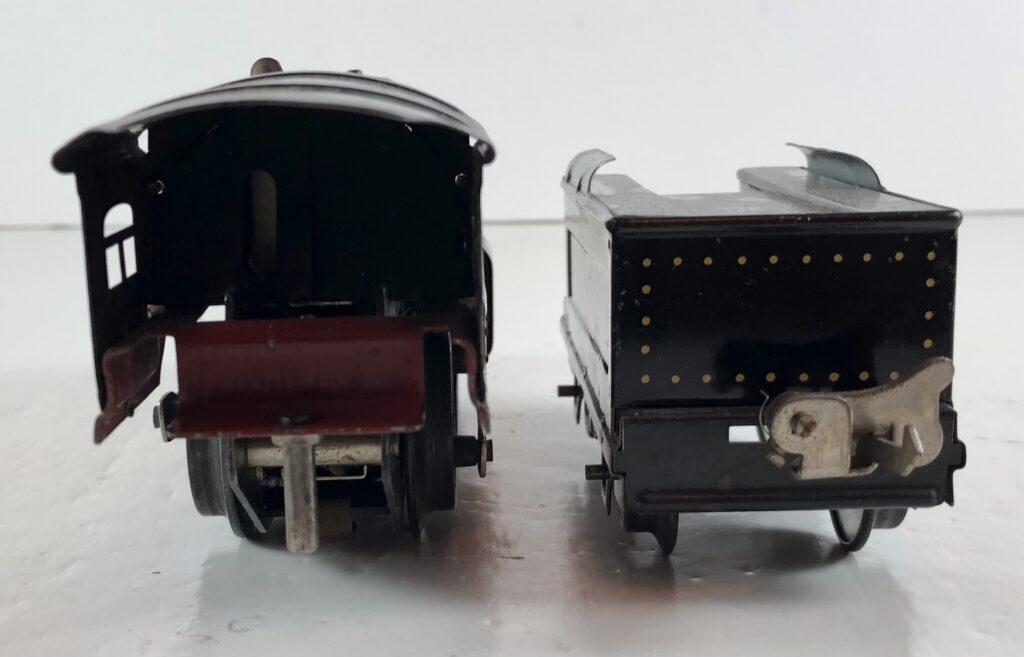

3. No. 1681E / 1661T Ives 2-4-0 Steam Locomotive in black with dark red frame and nickel trim (1934). The loco has an E-Unit reverse. The No. 1661T Tender is black with “Lionel Lines” on a red insert on the sides.

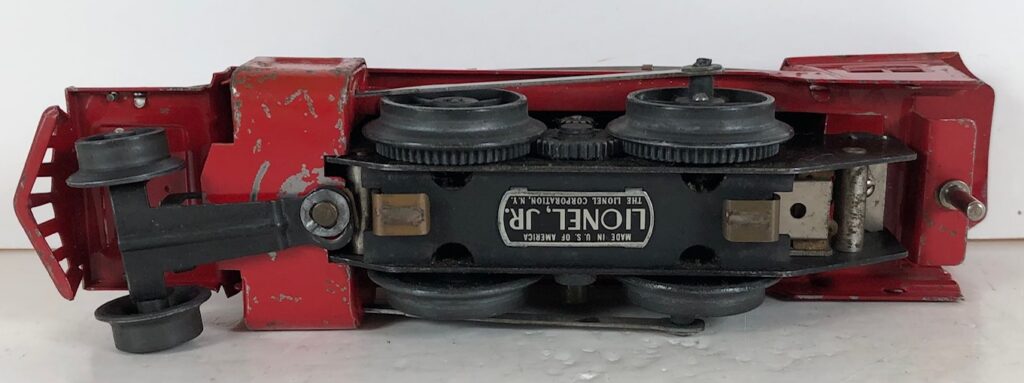

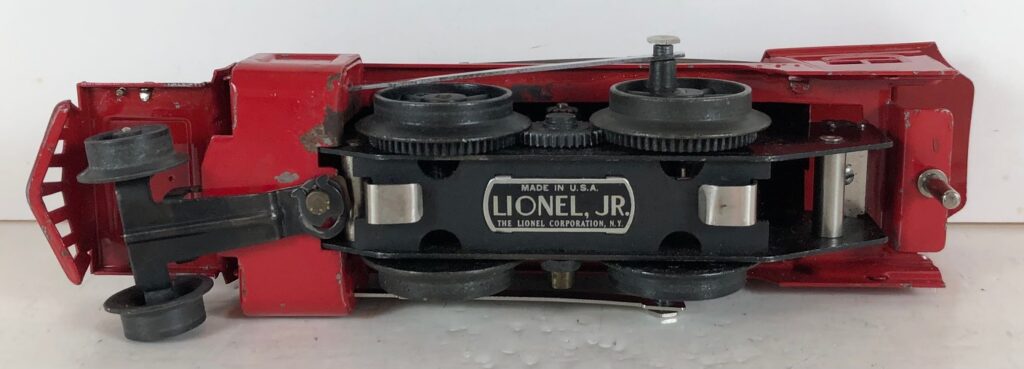

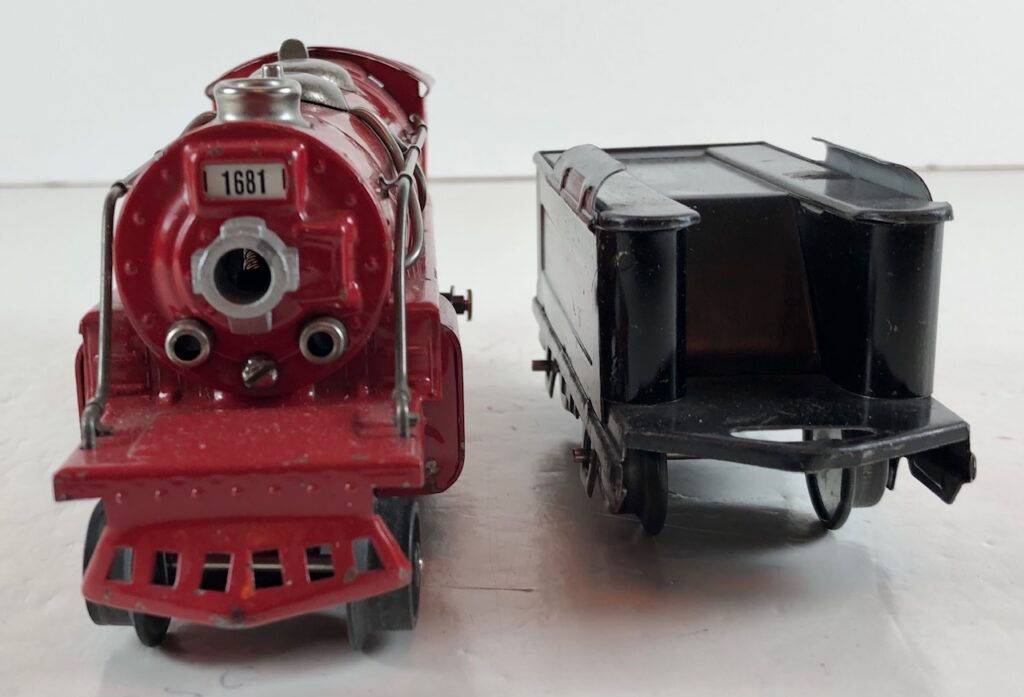

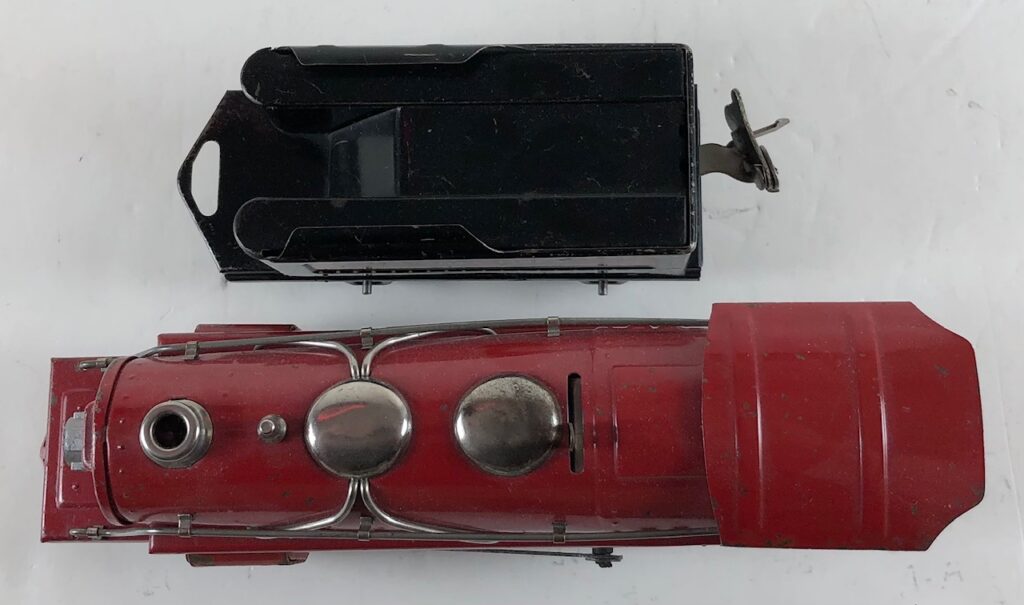

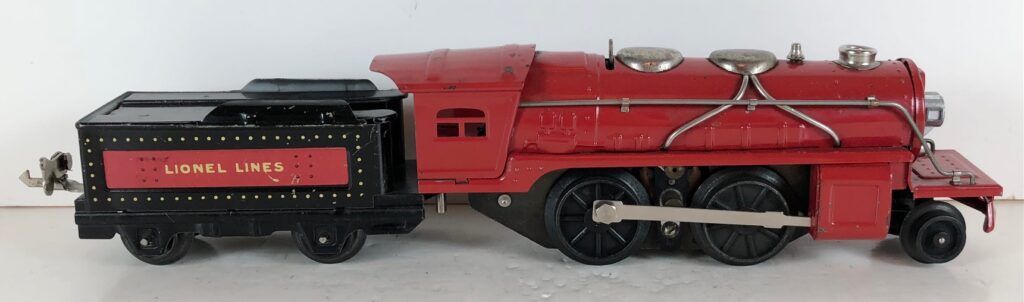

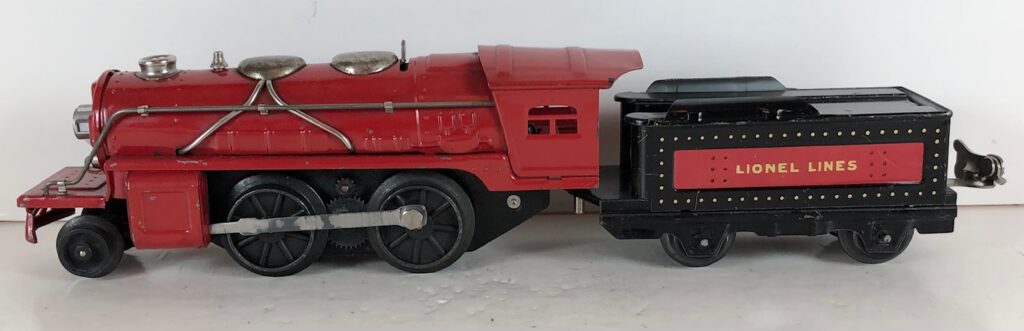

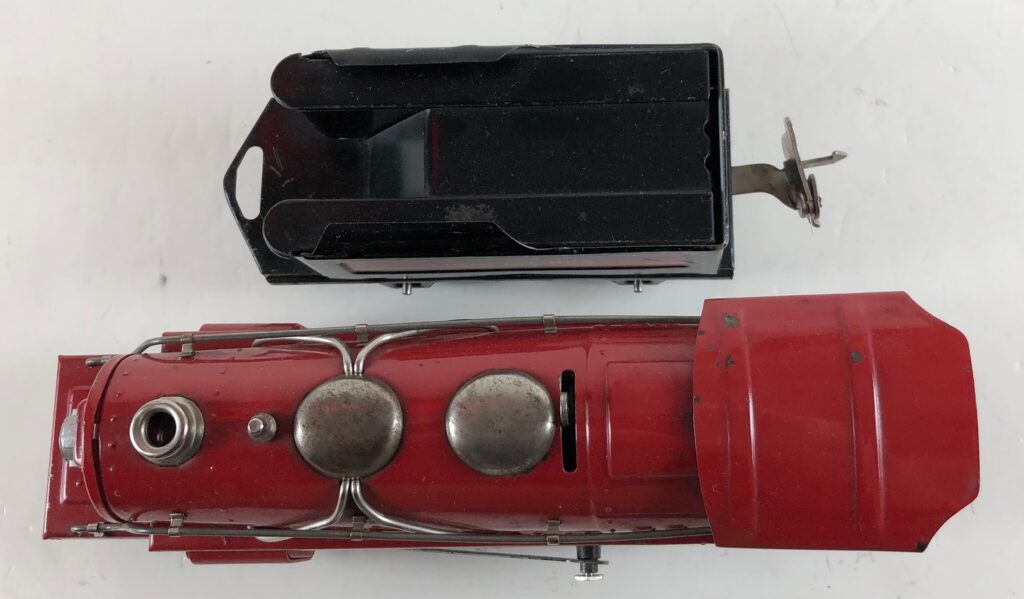

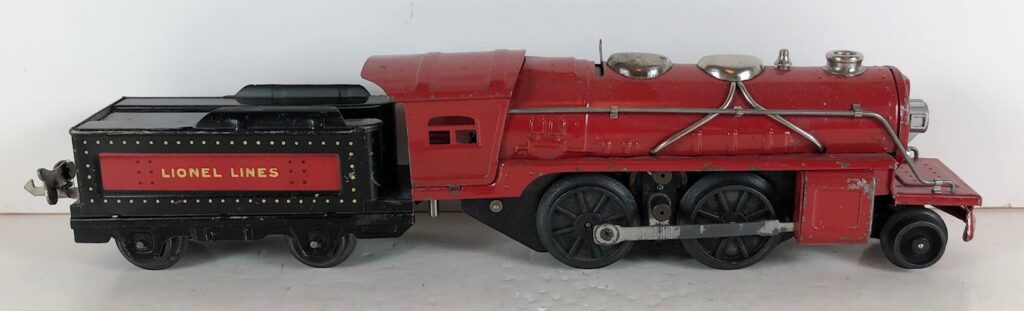

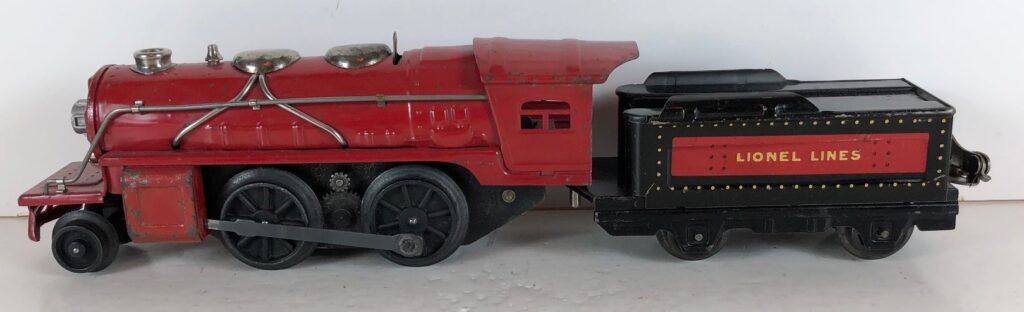

4. No. 1681 / 1661T Ives 2-4-0 Steam Locomotive in bright red with bright red frame and nickel trim (1935). The loco has a manual reverse. The No. 1661T Tender is black with “Lionel Lines” on a red insert on the sides.

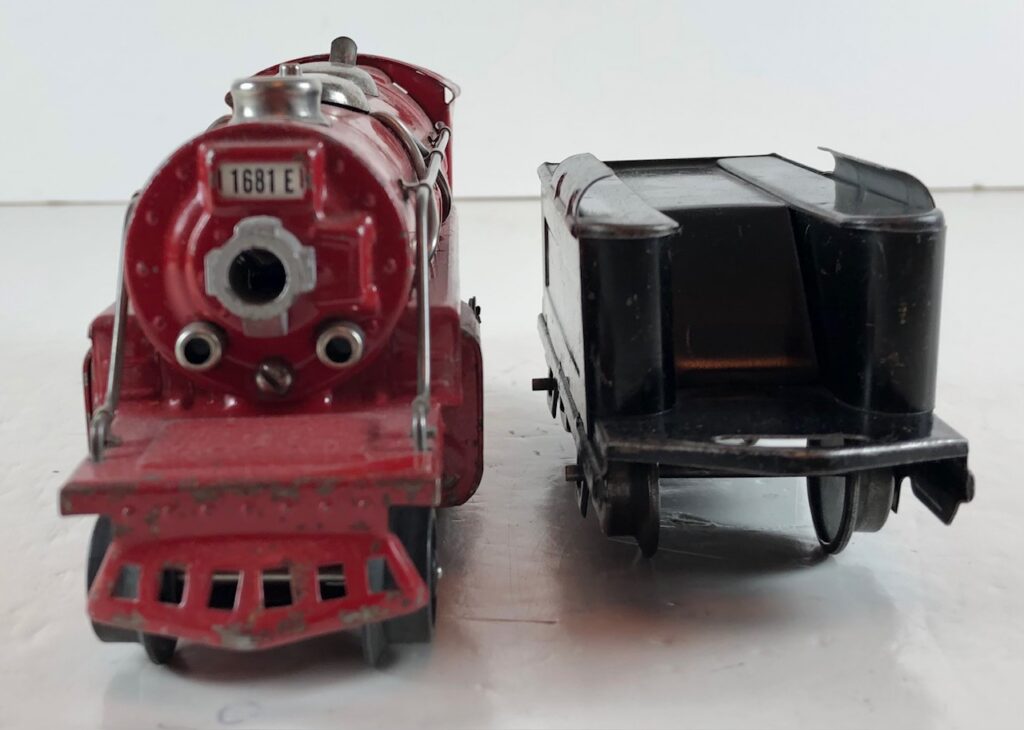

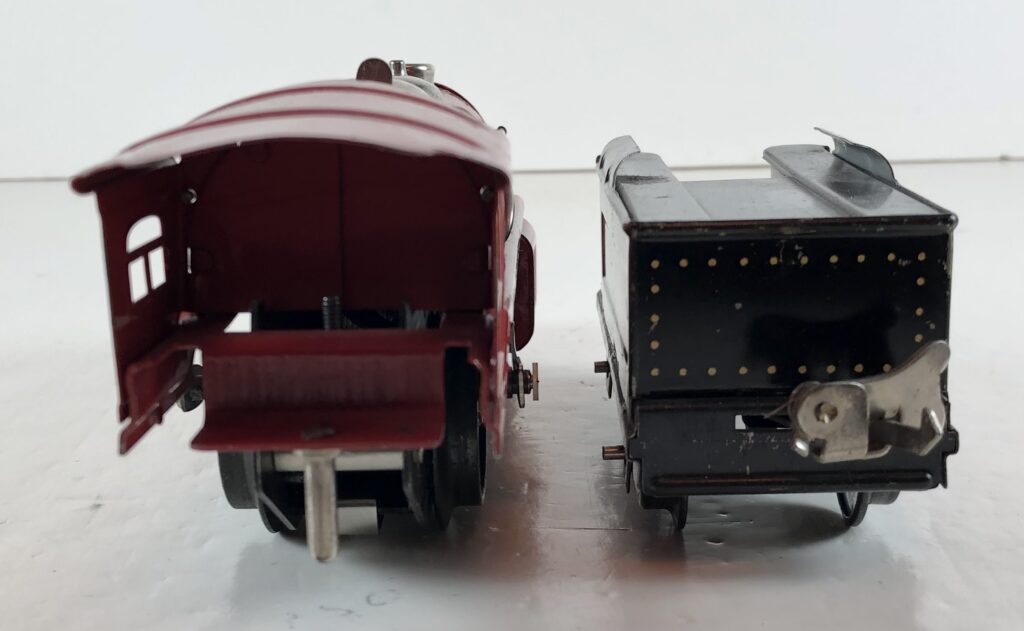

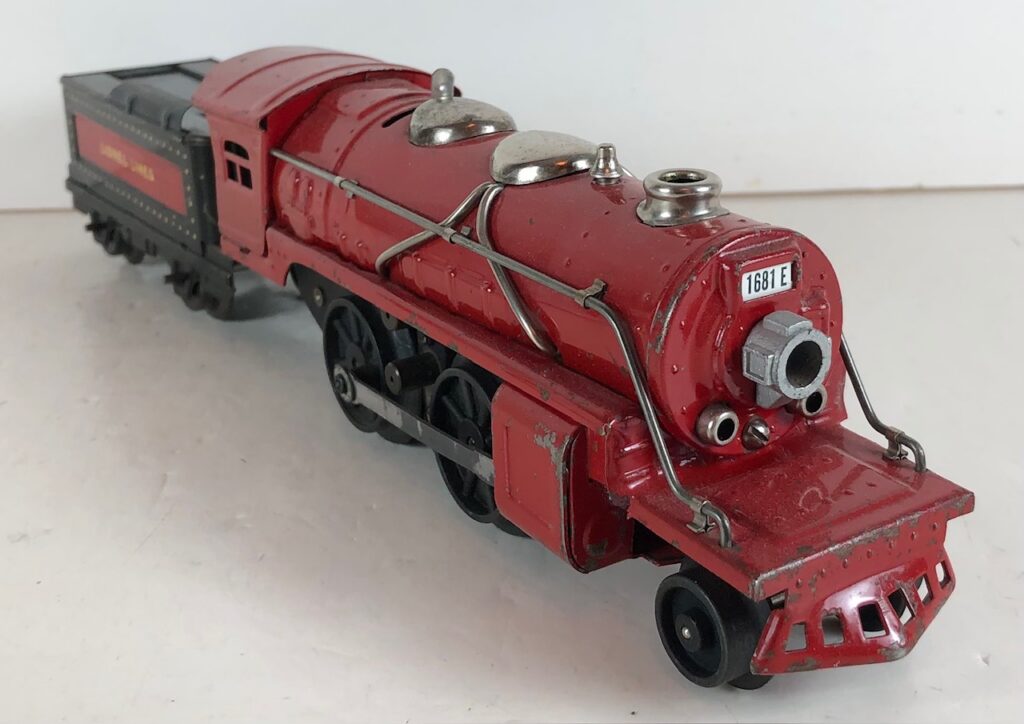

5. No. 1681E / 1661T Ives 2-4-0 Steam Locomotive in bright red with bright red frame and nickel trim (1935). The loco has an E-Unit reverse. The No. 1661T Tender is black with “Lionel Lines” on a red insert on the sides.
