THE FOLLOWING SETS WILL BE DOCUMENTED BELOW
Click or Scroll Down
No. 463 W 1945
No. X628 1961
No. 1504 1955
No. 2169 WS 1951
No. 2289 WS
No. 2527
No. 9657 1962
No. 9680 W
No. 11321 1963
No. 11530 1965
No. 11600 1968
No. 11620 1968
THE No. 463 W 1945 CATALOGED “O” GAUGE SET
The 463 W was the only cataloged set produced in 1945
No. 224 STEAM ENGINE AND No. 2466 W TENDER
note white heat stamped lettering on tender
BOTTOM VIEW OF ENGINE
note straight back of cab and long drawbar
BOTTOM VIEW OF TENDER
note black fiber boards on flying shoe couplers note the absence of draw bar, the drawbar from the engine went directly into a hole in the frame of the tender
No. 224 STEAM ENGINE BOX
No. 2446 W TENDER BOX
No. X2758 PENNSYLVANIA AUTOMOBILE BOXCAR
note black fiber boards on flying shoe couplers
No. 2755 SUNOCO TANK CAR
note black fiber boards on flying shoe couplers
No. 2452 PENNSYLVANIA GONDOLA
note four barrels that open in half
note black fiber boards on flying shoe couplers
No. 2457 PENNSYLVANIA CABOOSE
note black fiber boards on flying shoe couplers
No. X628 “027” UNCATALOGUED SET 1961
view of packed top layer
view of packed bottom layer
note the position of the yellow corrugated cardboard spacer
BOXES
note the yellow spacer No. 60 – 541 with the number stamped on the inside, and the over stamped caboose box No. 6017 – 200
CONTENTS
No. 224P ALCO POWERED A UNIT
No. 222C B UNIT
No. 3410 HELICOPTER LAUNCHING CAR
No. 3665 MINUTEMAN MISSILE LAUNCHING CAR
No. 3830 FLATCAR WITH OPERATING SUBMARINE
No. 6017 – 200 NAVY CABOOSE
3 No. 1018 – 30 STRAIGHT TRACK
12 No. 1013 – 70 CURVE TRACK
No. 1008 – 50 UNCOUPLING TRACK SECTION
No. 1020 90 DEGREE CROSSING
No. 1020 45 WATT TRANSFORMER
No. 310 1961 billboards (5)
No. 3330 – 107 dated 8 – 60 printed black on white paper
Inst No. 3410 – 5 dated 6 – 61 printed black on white paper
Inst No. 3665 -23 dated 6 – 61 printed black on white paper
Inst No. 1802 -B dated 6 – 59 printed black on white paper
Inst No. X602 – 10 dated 6 – 61 printed black on white paper
Inst No. 1123 – 20 dated 2 – 61 printed black on blue paper
1961 No. D – 61 ACCESSORY CATALOGED
Courtesy of “The Piazza Collection”
No. 1504 FREIGHT SET 1955
contents of No. 1504 freight set
Courtesy of “THE CAMPO COLLECTION”
OUTFIT No. 2169 WS 1951
OUTFIT No. 2169 WS “O” GA. FREIGHT TRAIN WITH WHISTLE & SMOKE 1951 WITH APPLIED LABEL
ST. JOE KRAFT corrugated box # 2169 – 1 dated 1950
16″ X 161/2″ X 73/8″
Courtesy of “THE PIAZZA COLLECTION”.
component boxes
No. 773 Hudson with No. 2426 W Tender with Whistle
No. 3469 Automatic Dump Car with No. 207 bag of coal
No. 3656 Operating Cattle Car with corral
No. 6456 HOPPER
No. 6457 CABOOSE
No. 2289 WS SUPER O OUTFIT
Set box with all individually boxed engine, cars and packets including instructions
Close-up of some boxes.
NOTE: 6430 stamped “JX”
Set box side
Close- up of cars & small items
Engine Carton close-up
Instruction sheet & packet
Instruction sheets, packet & small items
Additional items
Packet for the No. 39 Uncoupler, No. 61 Ground Lockon, No. 62 Power Lockon, No. 37 Uncoupler & No. 90 Controllers
Courtesy of the Wachter Collection
No. 2527 Super O Outfit
Set contents
Cars & Operating Packet
Engine & some cars
Cars & Instruction Sheets
No. 3419 helicopter Car, light blue, large winder
Missile car, First Aid Caboose & control & packet
Set Packet No. 39-25
Courtesy of the Wachter Collection
No. 9657 “027” UNCATALOGUED SET 1962
SET BOX 13-1/4″ X 14″ X 6-3/8″
CONTENTS
No. 637 STEAM LOCOMOTIVE WITH SMOKE
No. 234W TENDER WITH WHISTLE
No. 6445 Ft. KNOX GOLD BULLION TRANSPORT CAR
No. 3370 ANIMATED SHERIFF AND OUTLAW CAR
No. 6473 RODEO CAR
No. 3376 – 100 OPERATING GIRAFFE CAR
No. 6361 LOG CAR
No. 6017 CABO0OSE
No. 1063 75 WATT TRANSFORMER
8 No. 10 – 13 CURVE TRACK
3 No. 10 – 30 STRAIGHT TRACK
No. 6029 UNCOUPLING TRACK SECTION
No. 310 1961 BILLBOARDS
No. 3370 INST FOR SHERIFF AND OUTLAW CAR # 3370 -17 DATED 6 – 61 PRINTED BLACK ON WHITE PAPER
No. 637 INST FOR 637 LOCOMOTIVE # 2037 – 16 DATED 3 – 59 PRINTED BLACK ON WHITE PAPER
INST # 1123 – 40 DATED 2 – 40 PRINTED BLACK ON BLUE PAPER
OUTFIT INST # 1650 – 10 DATED 4 – 61 PRINTED BLACK ON WHITE PAPER
No. 6361 FOR LOG CAR INST # 6361 – 16 PRINTED BLACK ON WHITE PAPER
PACKET No. 90 – 30 , # 90 – 31
view of packed box top layer
view of packed box bottom layer
courtesy of “The Piazza Collection”
No. 9680 W SUPER O SET
Set box with all individually boxed engine, cars and packets including instructions
Side of Set Box
NOTE: Printed No. 824 and No. 9680 in grease pen
Box shown open
Close-up of tag on side showing Sears, No. 9680, and price
Close-up of top with pencil marking
Bottom of set box
Cars with individual boxes and small items
Additional photo of individual cars
Engine Carton
Packet & Instructions
Instructions & small items
Packet with No. 61 Ground Lockon, No. 62 Power Lockon, No. 36-2 Blades, No. 37 Uncoupler & No. 90 Controlls
Courtesy of the Wachter Collection
SET No. 11321 CATALOGED “027” 1963
22″ X 11 1/2″ X 3 1/4″
CONTENTS
No. 221P Denver and Rio Grande Diesel
No. 3309 Turbo Missile Launching Car
No.6076 -75 Lehigh Valley Hopper Car
No. 6042 – 75 Gondola with Cable Reels
No. 60167 – 50 Caboose to match loco
8 No. 1013 Curve Track
2 No. 1018 Straight Track
No. 1026 25 – Watt Transformer
CTC Lockon Wires and Instruction Sheet
starting with the 1963 ACCESSORY CATALOG and proceeding clockwise,
No. 2870 dated 6/63 MAKE YOUR LIONEL RAILROAD GROW!!!,
LIONEL ACCESSORY ORDER FORM dated 1 – 62,
Instruction # 11321 – 10 dated 4/63,
IMPORTANT INSTRUCTIONS # 1123 – 40 dated 2 – 62,
INSTRUCTIONS LIONEL NO. 3309 TURBO – MISSILE CAR # 3309 – 5 dated 7 – 62,
ASSEM. No. 1103 – 20 packet # 1103 – 21
SET No. 11530 CATALOGED “027” 1965
W 23-1/2″ X D 11-5/8″ X H 3-1/4″
No. 634 SF switcher
with weight
with yellow safety stripes on cab sides
No. 6014 Frisco boxcar
No. 6142 green gondola
with two unstamped white canisters
No. 6402 flatcar
with two empty orange cable reels
No. 6130 SF work caboose
No. 1010 35 W transformer
No. 6149 uncoupling section
8 curve track
1 straight track
form #3063 D-74 dated 4/65
form #11530 – 10 dated 6/65 (outfit Inst.)
form 1-165 (1 year warranty card)
form 926-69 (1965 – 1966 service station list)
SET No. 11530 CATALOGED “027”
W 11-3/8″ X D 13-1/4″ X H 6-1/8″
COMPARISON OF THE ABOVE BOX ON BOTTOM AND THE FOLLOWING BOX ON TOP
SET No. 11530 CATALOGED “027” 1965
CONTENTS
No. 634 SF switcher
without weight,
without yellow safety stripes on cab sides
No. 6014 Frisco boxcar
with 2 operating early AAR trucks
No. 6142 blue gondola
with two unstamped red canisters
with 1 operating & 1 non operating late AAR trucks
No. 6402 flatcar
with two empty orange cable reels
with 1 operating & 1 non operating late AAR trucks
No. 6130 SF work caboose
with 1 operating early & 1 non operating late AAR trucks
No. 1010 35 W transformer
No. 6149 uncoupling section
8 curve track
1 straight track
W 9-5/8″ X D 11-1/4″ X H 6-1/4″
form #3063 D-74 dated 4/65
form #11530 – 10 dated 6/65 (outfit Inst.)
form 1-165 (1 year warranty card)
form 926-69 (1965 – 1966 service station list)
Courtesy of “The CATAPANO Collection”
THE No. 11600 CATALOGED “027” SET 1968
THE No. 11600 SET IS THE ONLY CATALOGED SET PRODUCED IN 1968
CONTENTS
No. 2029 steam engine
No. 234W LL with whistle tender
No. 6014 white FRISCO boxcar
No. 6476 yellow LV hopper
No. 6315 LL chemical tank car
No. 6560 crane car
No. 6130 SF work caboose
No. 1122 remote control LH switch in Hagerstown box
No. 260 black bumper in Hagerstown box
No. 1020 90 crossing in Hagerstown box
12 curve track
6 straight track
No. 6149 uncoupling section
No. 1044 90W transformer
No. 2029 steam engine partially produced in Japan
note “JAPAN” stamped into the bottom of the trailing truck
INSTRUCTIONS & PACKETS from left

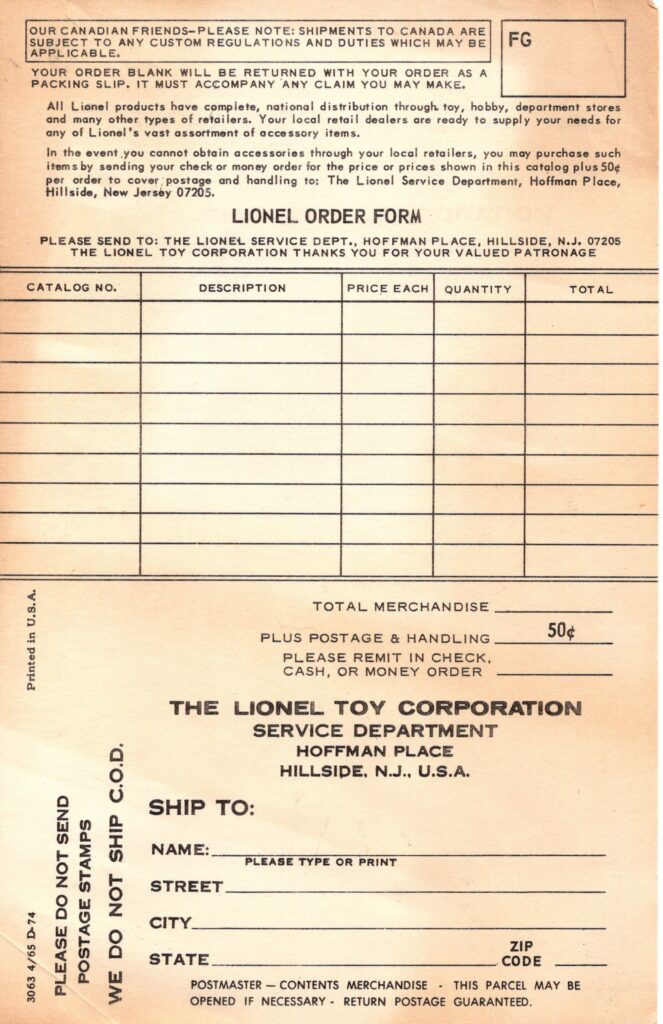

form # 3063, D-74, dated 10/68
form 1044-59 dated 6/66 (transformer Inst.)
form 2029-5 dated 5/65 (engine Inst.)
packet #1103-41 (ASSEMBLY NO. 1103-40)
form #6149-17 dated 3/65 (operating track Inst.)

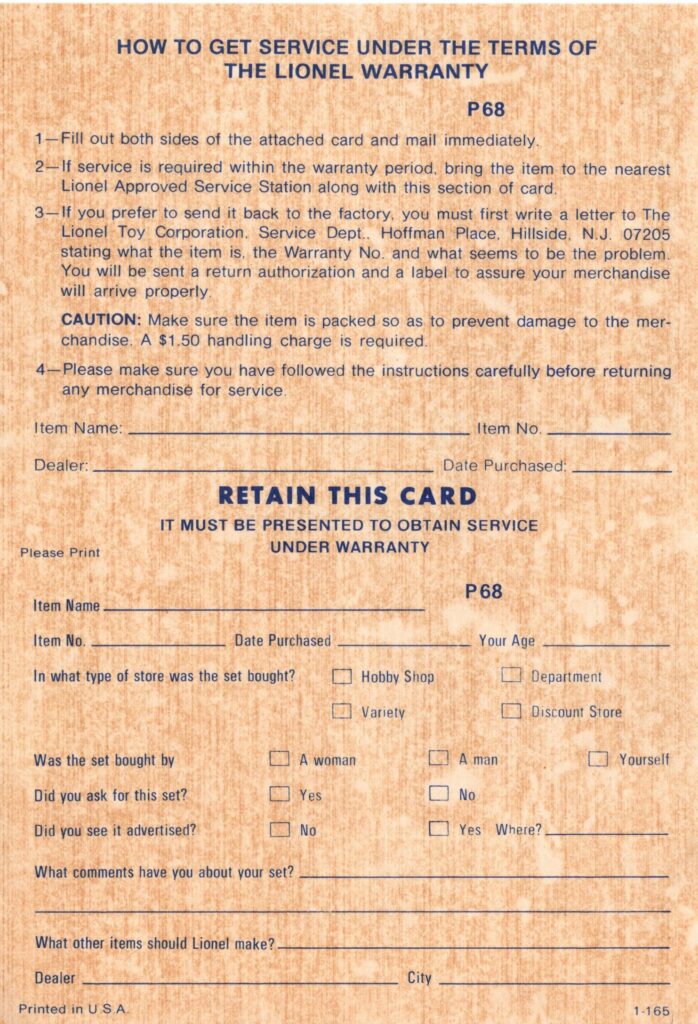

1 year warranty card (partial)

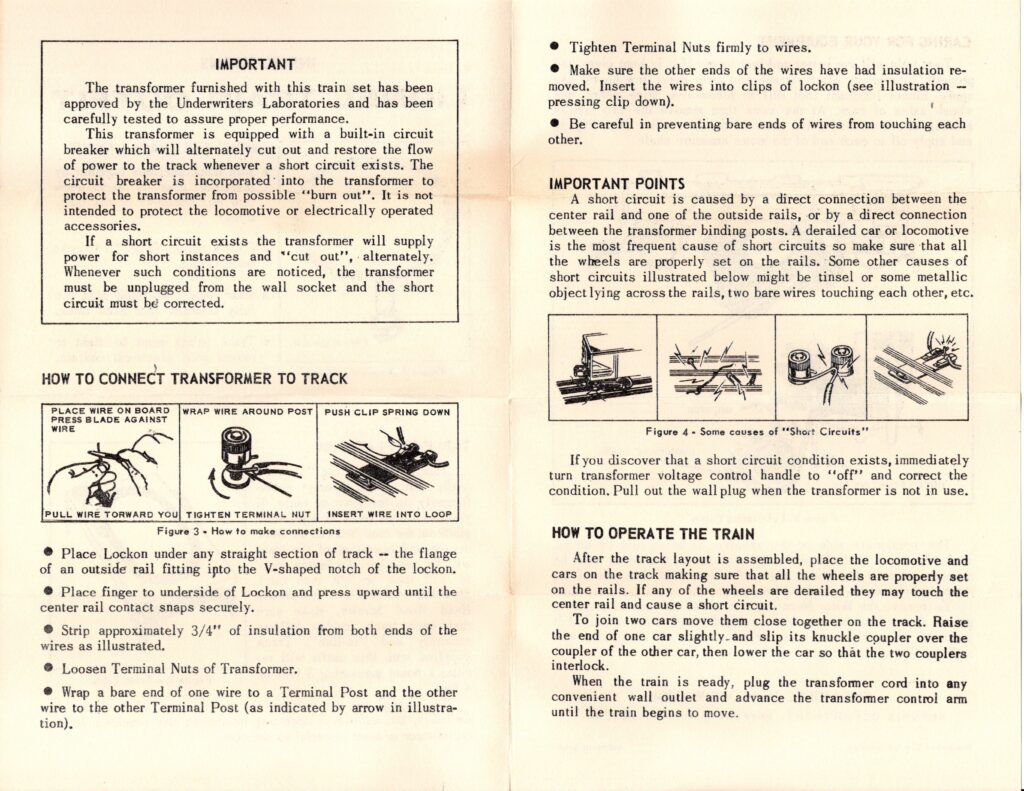

INSTRUCTIONS & PACKETS from left
LIONEL TRAIN OUTFIT SPECIAL LAYOUT INSTRUCTIONS
Inst. # 68 – 275 outfit No. 11600
dated 2/68 printed in black on white paper, 4 pages
form #6560-26 dated 6/66 ( 6560 crane car Inst.)
packet #1122-255 (ASSEM. NO. 1122 – 255)
contents 1 – 1122 – 300 controller
1 – 1122 – 177 lantern
1 – 1122 – 259 instructions
dated 3/65, printed in black on white paper, 4 pages
SET No. 11620 UNCATALOGUED “027” 1968
THE No. 11600 SET IS THE UNCATALOGUED SET PRODUCED IN 1968
containing No. 2029 steamer partially made in JAPAN

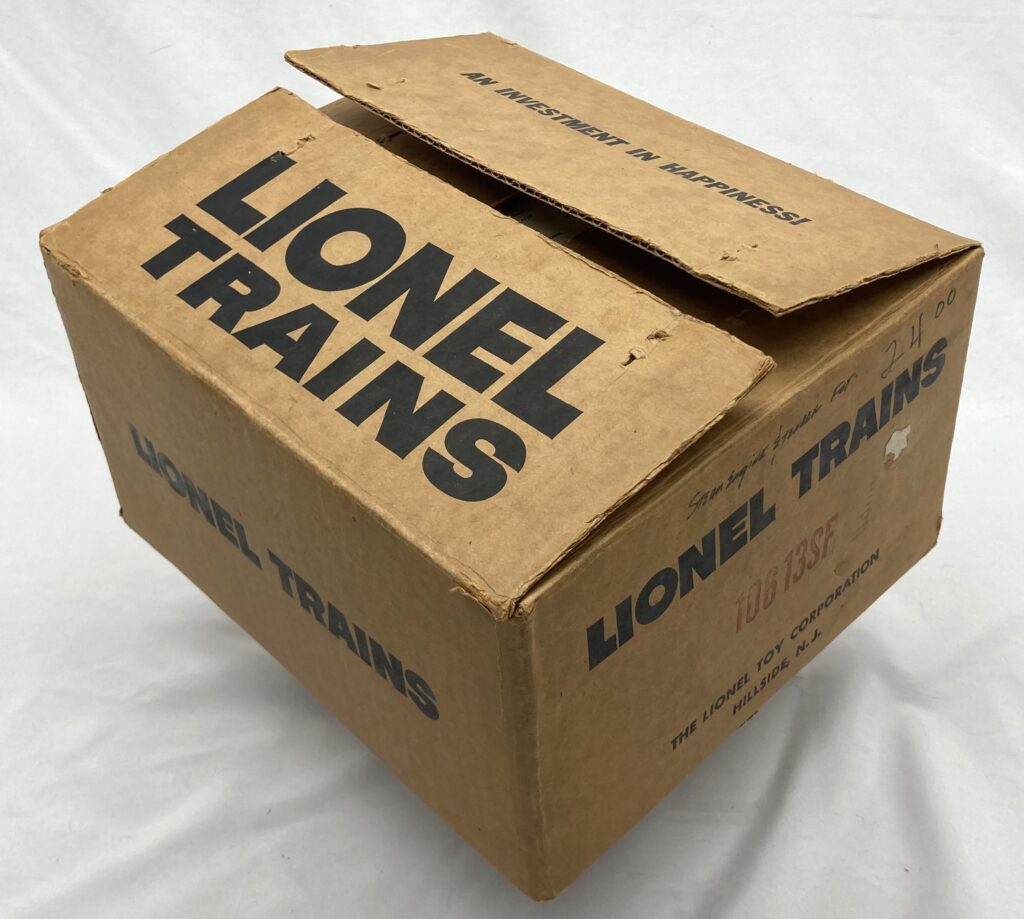

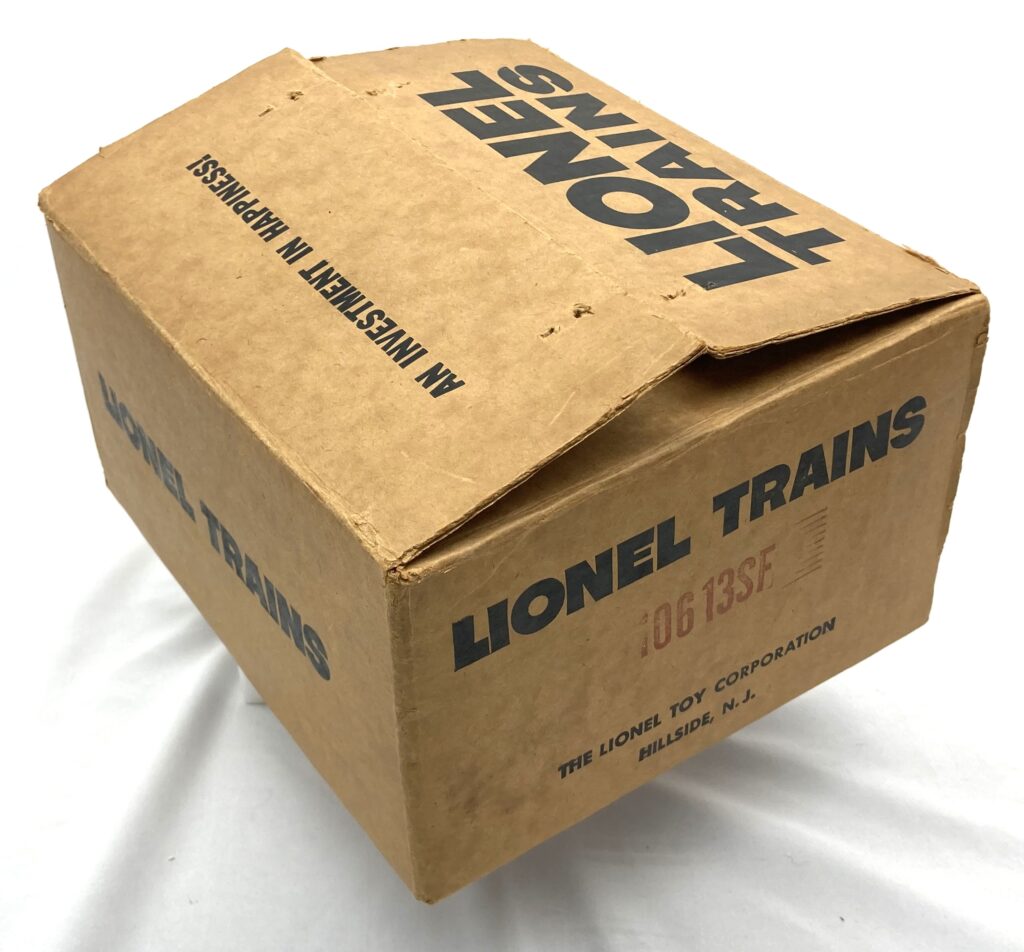

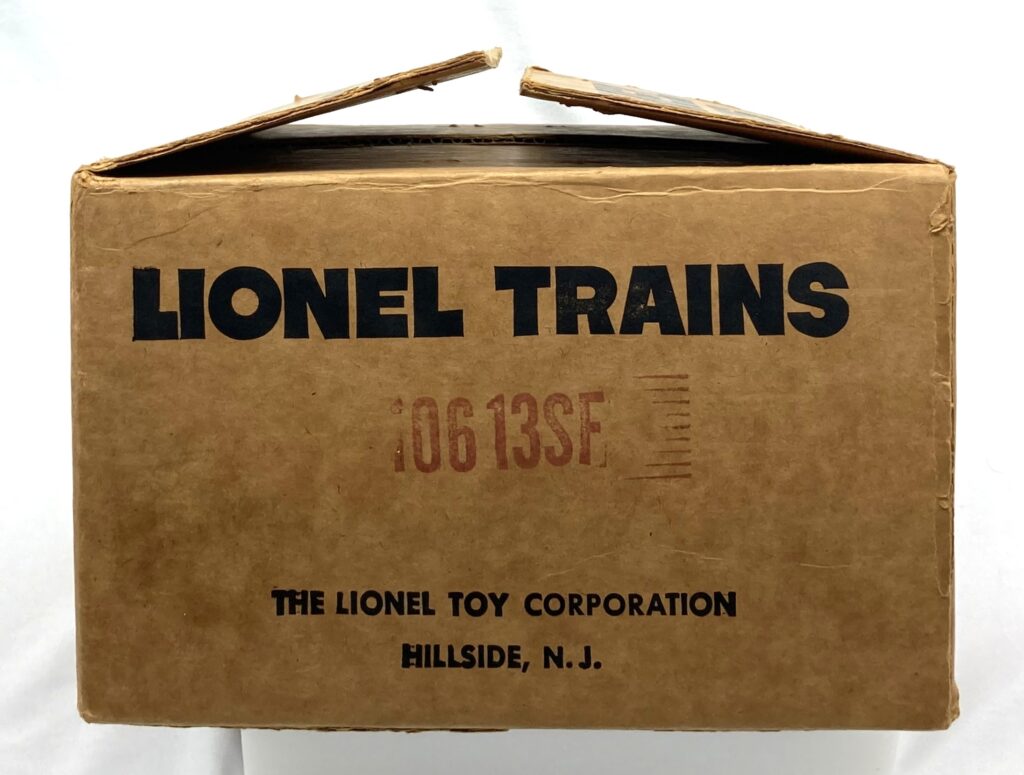

W 9-5/8″ X D 11-1/4″ X H 6-1/4″

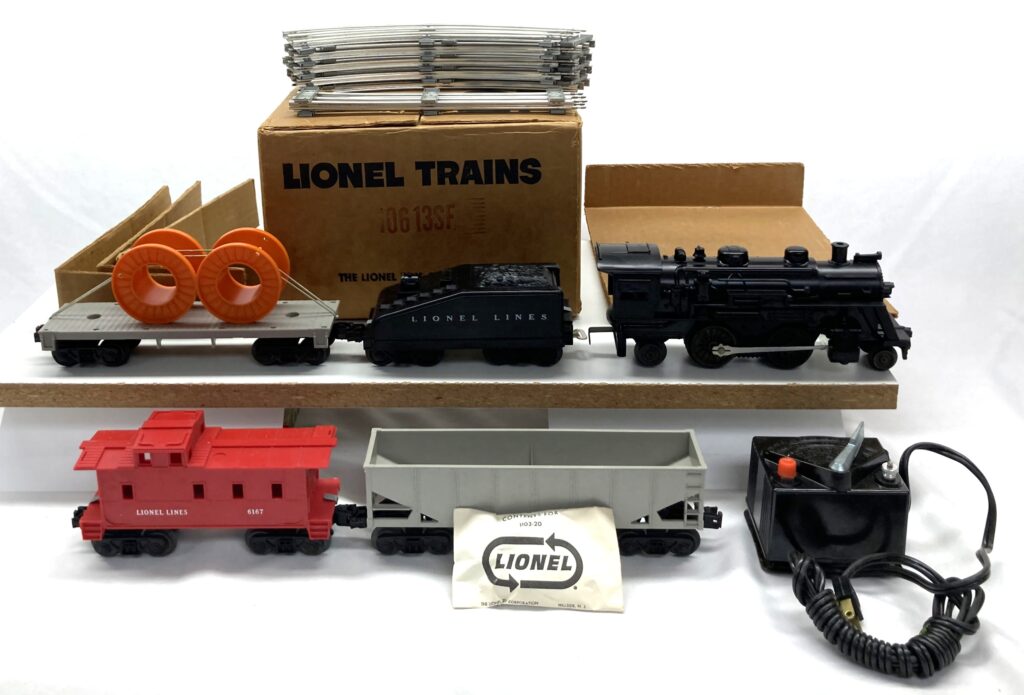

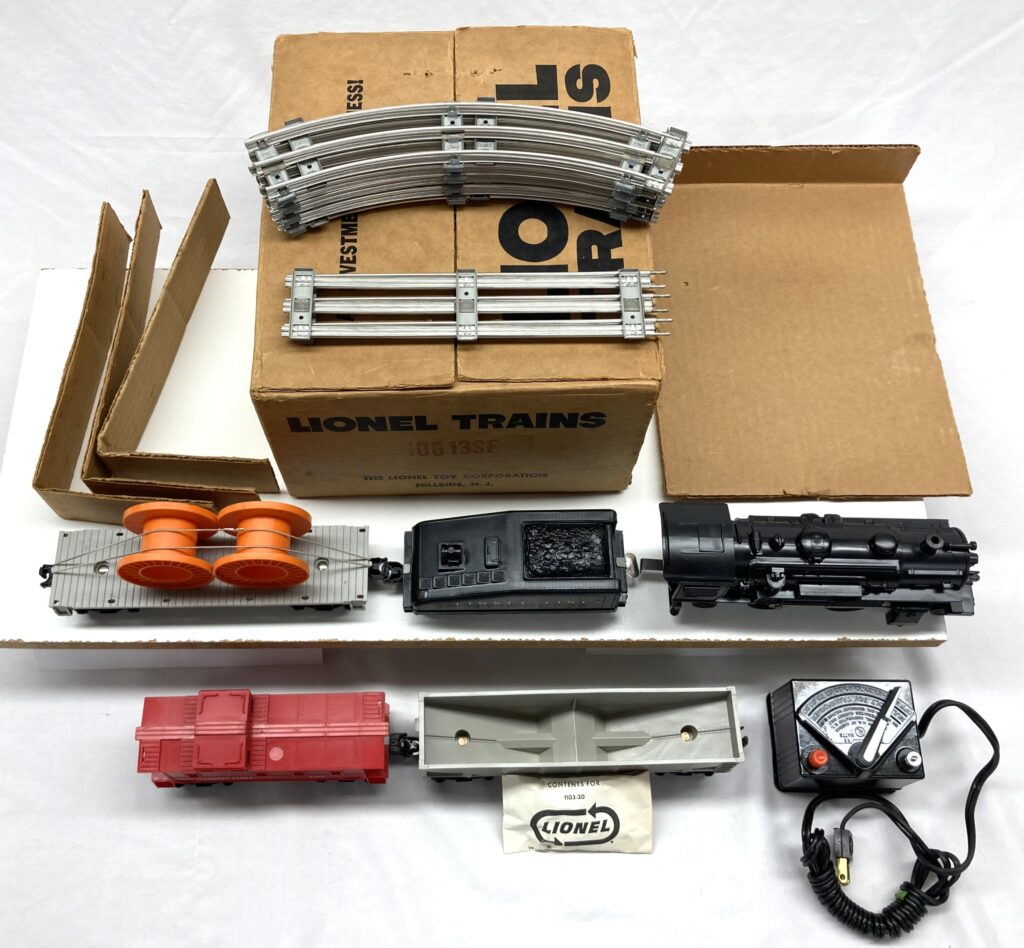

No. 2029 steam engine
No. 234W LL without whistle tender
No. 6402 gray flat car with orange cable reels
No. 6476 yellow LV hopper
No. 6062 black gondola
No. 6130 SF work caboose
8 curve track
3 straight track
No. 6149 uncoupling section
No. 1025 45 W transformer
bottle of smoke tablets
smoke stack tamper
lockon
No. 2029 steam engine partially produced in Japan
note “JAPAN” stamped into the bottom of the trailing truck
