Lionel Mechanical Steam Locomotives
All information and trains supplied by Russ MacNair unless otherwise noted
Lionel No. 1501 Steam Locomotives
Lionel No. 1503 Steam Locomotives
Lionel No. 1506 Steam Locomotives
Lionel No. 1501 Steam Locomotives
General Information
The Lionel No. 1501 Steam Locomotive was introduced in 1931 and cataloged through 1932. The No. 1501 Locomotive is powered by a mechanical or clockwork motor operated by a wind-up key. The No. 1501 Locomotive headed one passenger set in both 1931 and 1932. The 0-4-0 locomotive has a sheet metal body, copper handrails and copper trim. The locomotive boiler and cab is painted red and the frame is painted black. The locomotive does not have side rods. The No. 1501 Steam Engine is always paired with the No. 1502 Ives R.R. Lines 4-Wheel Tender. The No. 1502 Tender is lithgographed in red with “1502 Ives R.R. Lines 1502” on the sides. The No. 1501 / 1502 Steam Locomotive measures 9 1/4-inches in overall length.
The early version of the No. 1501 Steam Locomotive has a screw key that normally remains in the locomotive. In addition, the early version of the locomotive does not have a brake or a bell. The later version of the locomotive has a removable key. It also has a lever that serves as a brake when engaged that protrudes through the rear of the cab and a bell that operates continuously.
Lionel No. 1501 Steam Locomotives
PHOTOS NEEDED
1. No. 1501 / 1502 Ives R.R. Lines Steam Locomotive in red and black (1931). The locomotive has a screw key and no operating bell.
2. No. 1501 / 1502 Ives R.R. Lines Steam Locomotive in red and black (1932). The locomotive has a removable key and operating bell.
PHOTOS NEEDED
Lionel No. 1503 Steam Locomotives
General Information

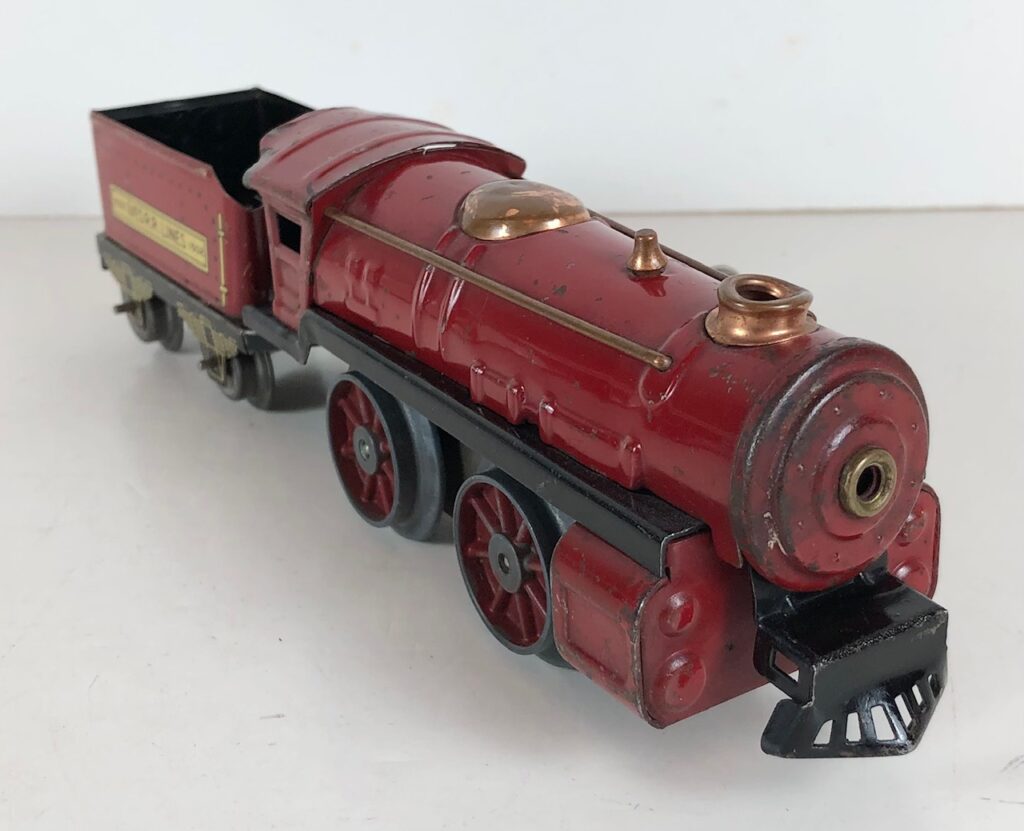

The Lionel No. 1503 Steam Locomotive was cataloged in 1931 only. The No. 1503 Locomotive is powered by a mechanical or clockwork motor operated by a wind-up key. The No. 1503 Locomotive headed one freight set and two passenger sets. The 0-4-0 locomotive has a sheet metal body, copper handrails and copper trim. The locomotive boiler and cab is painted red and the frame is painted black. The No. 1503 Steam Engine is always paired with the No. 1502 Ives R.R. Lines 4-Wheel Tender. The No. 1502 Tender is lithgographed in red with “1502 Ives R.R. Lines 1502” on the sides. The No. 1503 /1502 Steam Locomotive measures 9 1/4-inches in overall length.

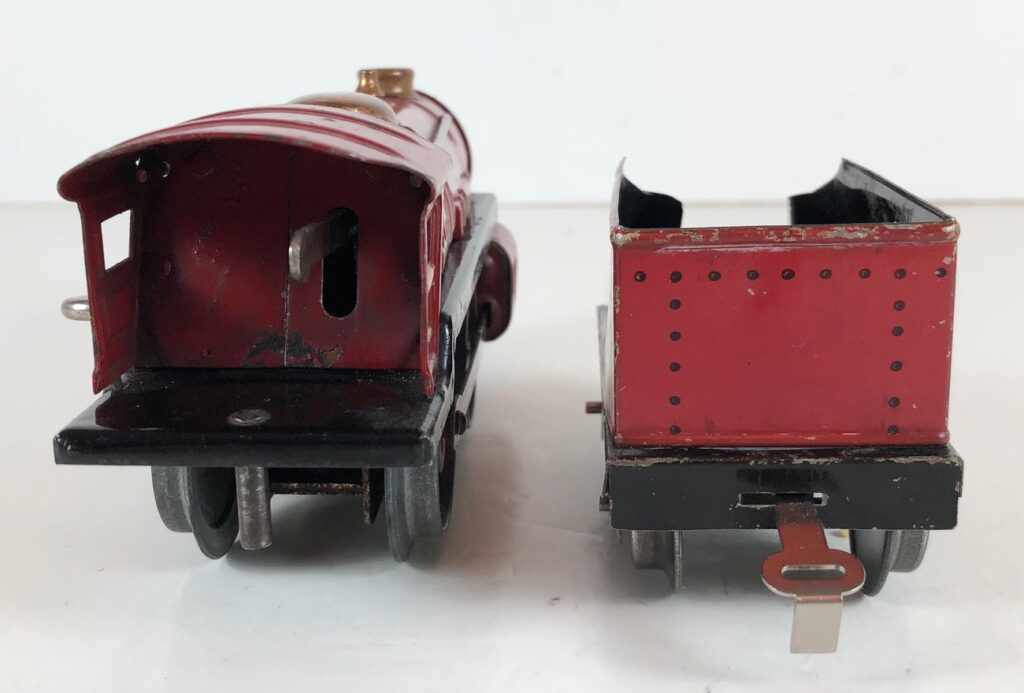

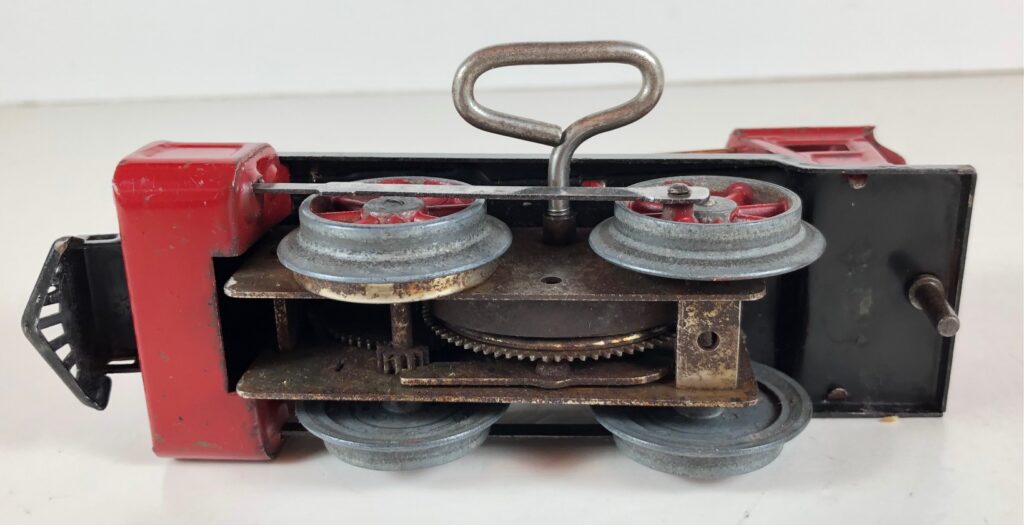

The No. 1503 Steam Locomotive has a screw key that normally remained in the locomotive. The locomotive also has a lever that serves as a brake when engaged that protrudes through the rear of the cab. The locomotive does not have an operating bell or a headlight.
There are no variations of the No. 1503 Locomotive.
Lionel No. 1503 Steam Locomotives

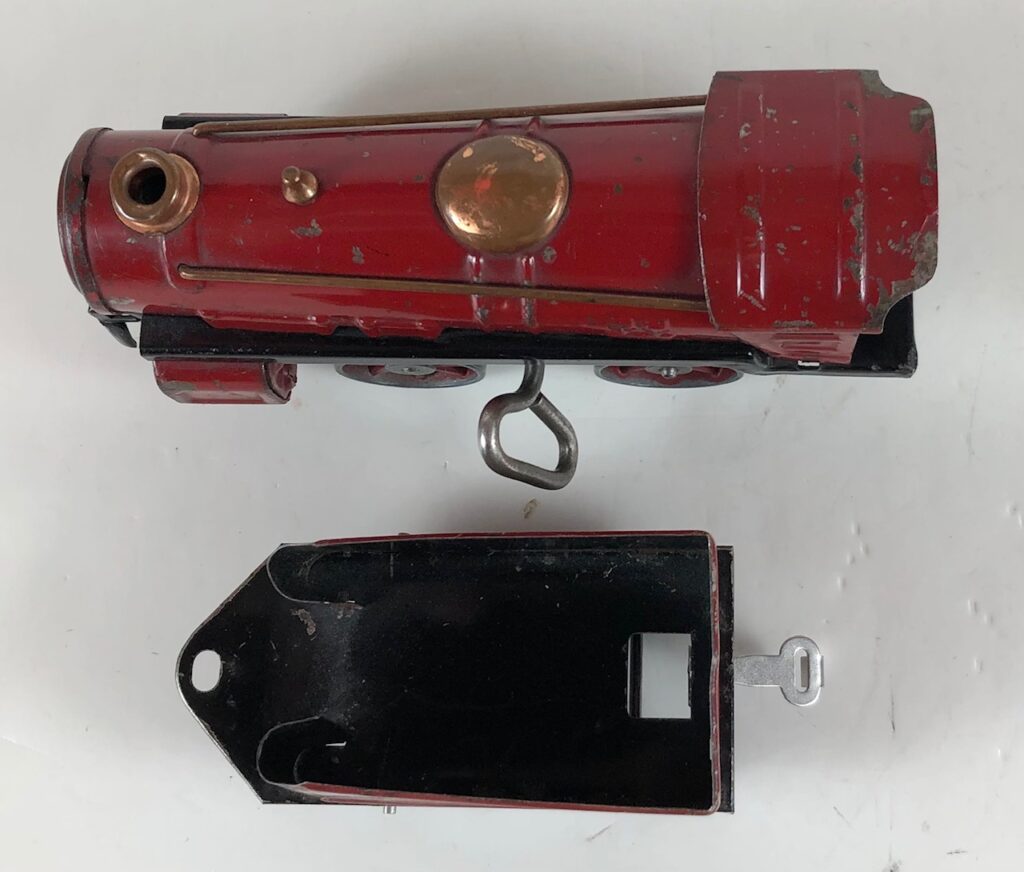

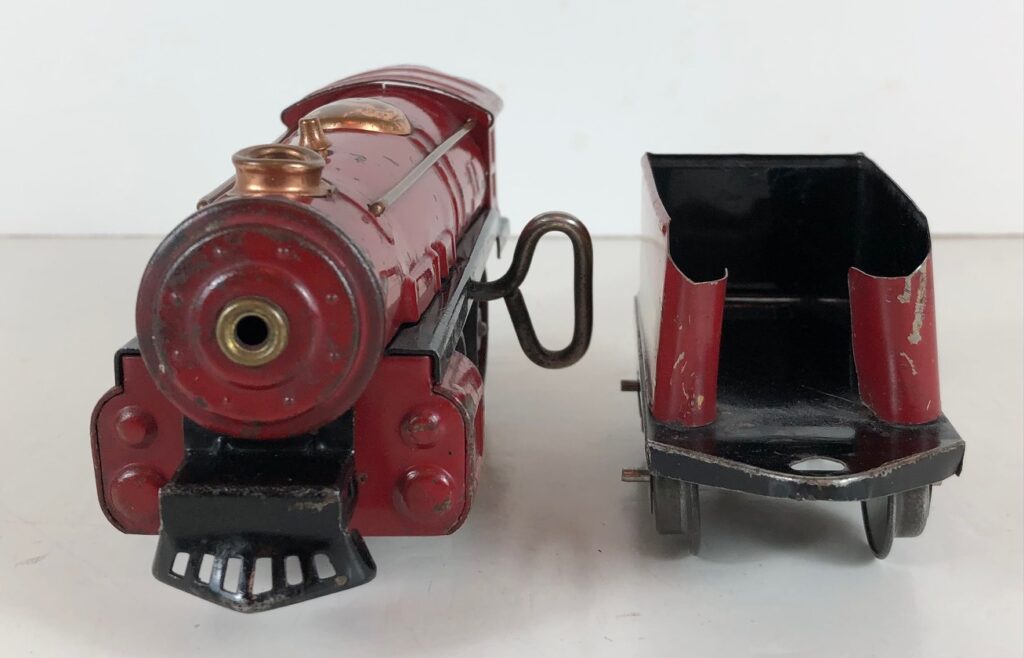

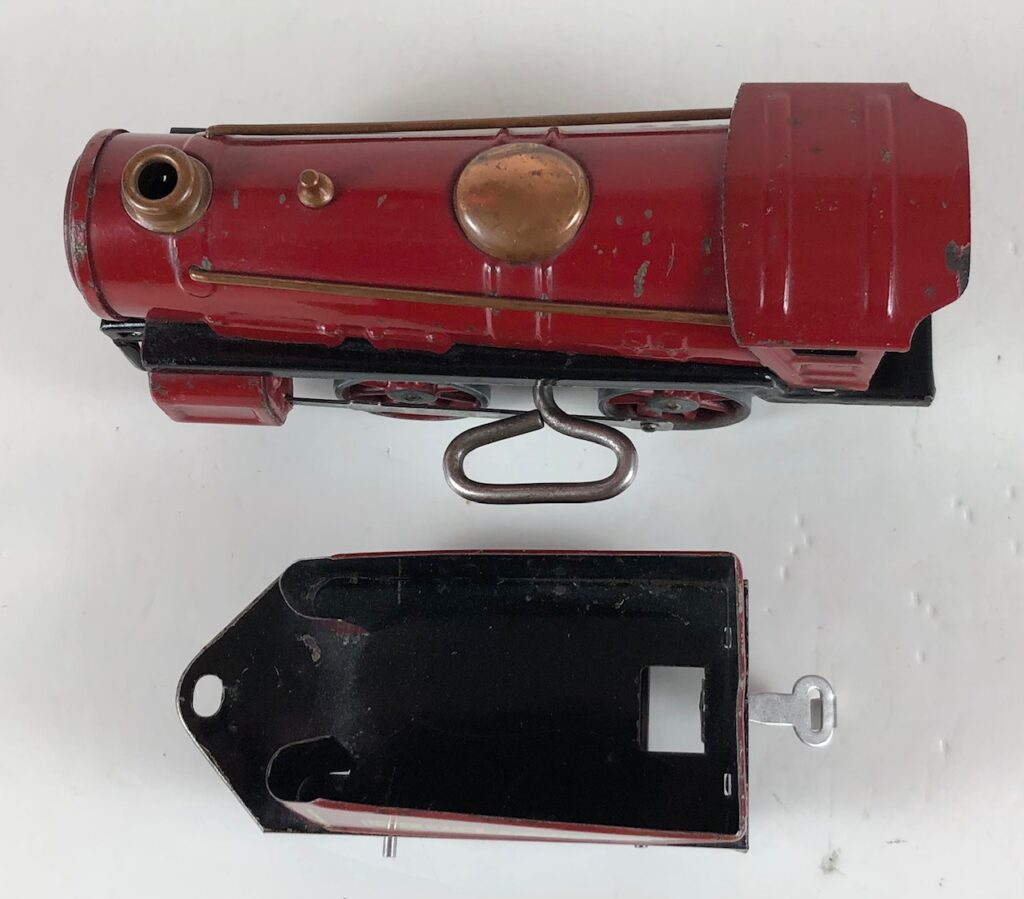

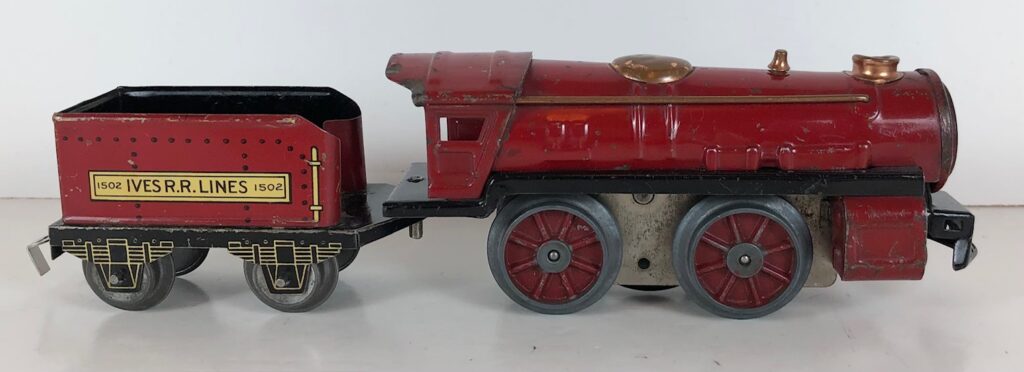

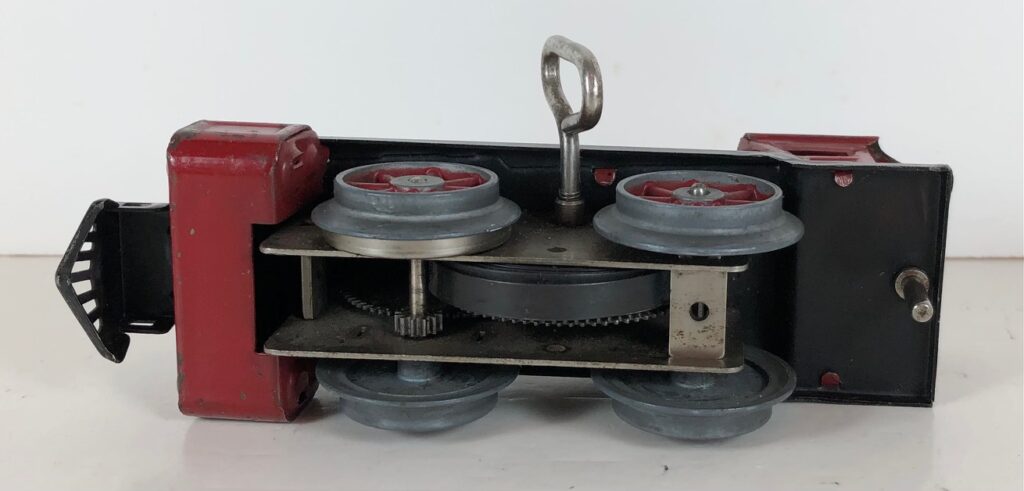

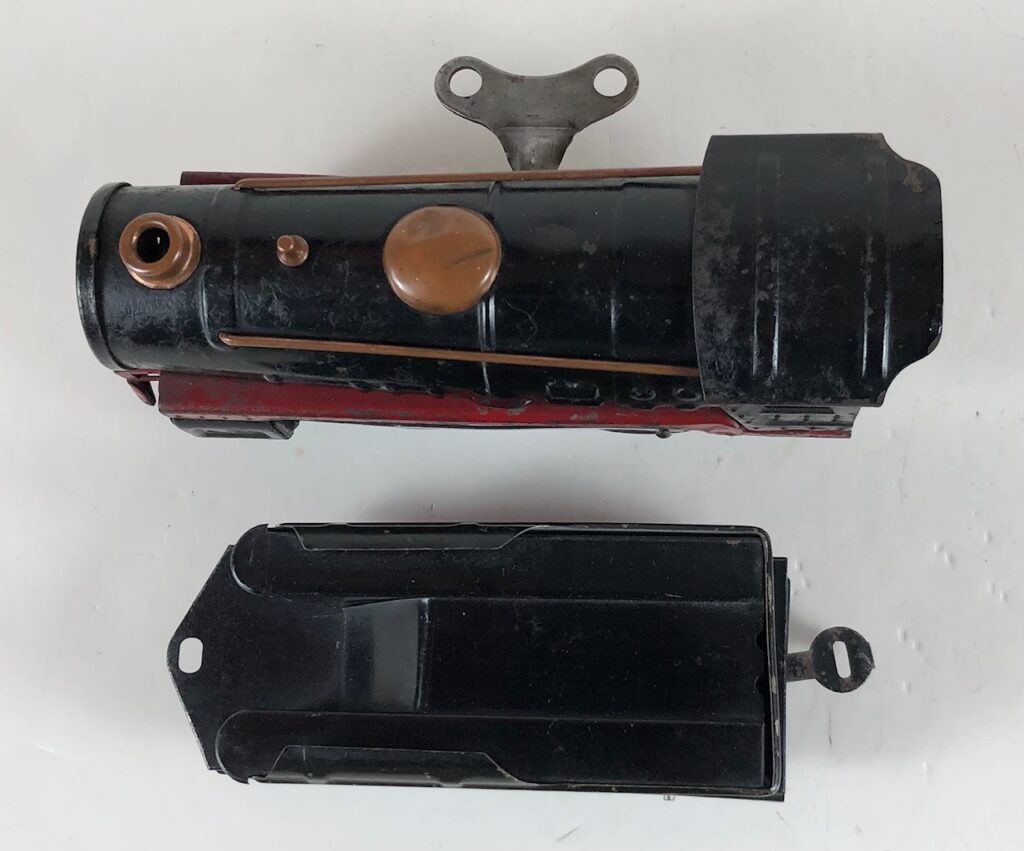

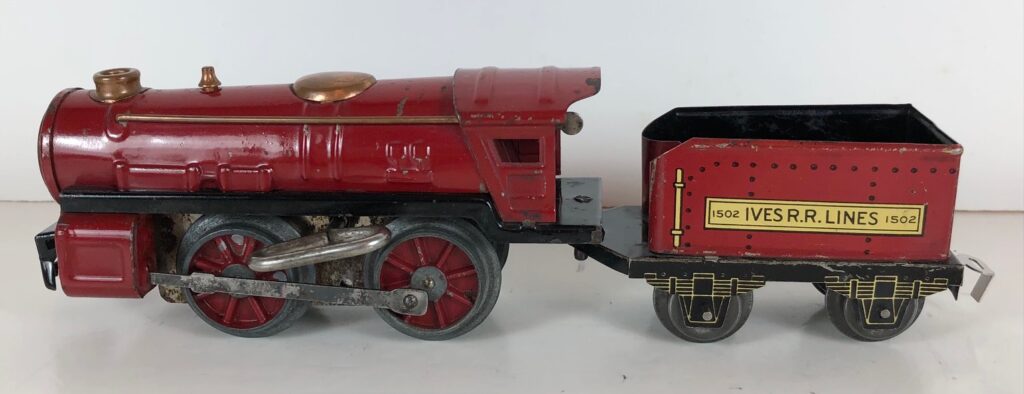

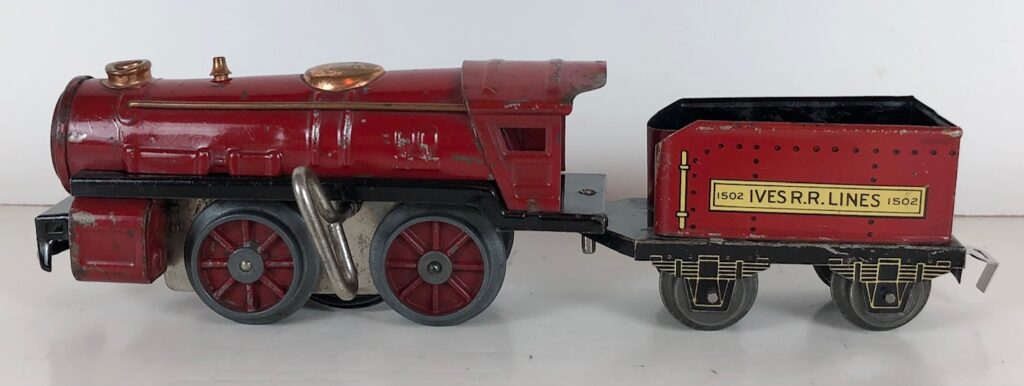

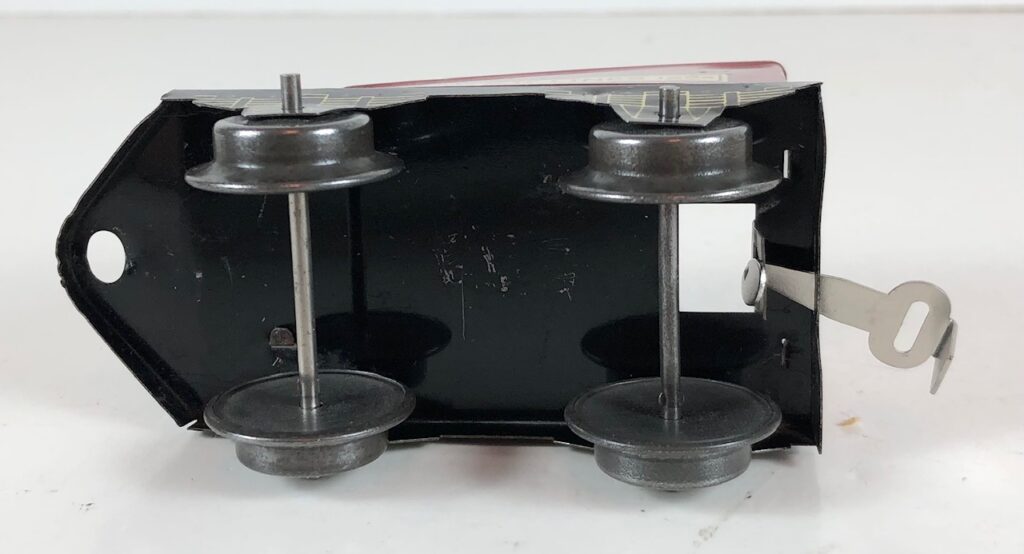

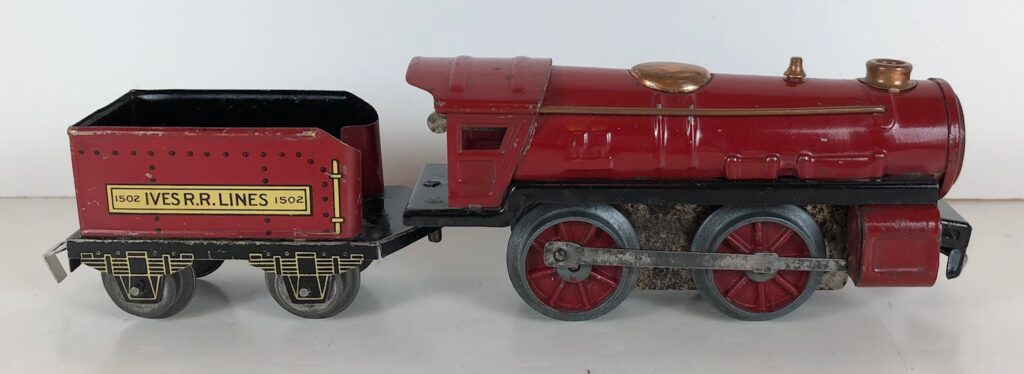

1. No. 1503 / 1502 0-4-0 Ives R.R. Lines Steam Locomotive in red and black (1931).
1. No. 1503 / 1502 0-4-0 Ives R.R. Lines Steam Locomotive in red and black (1931).
Lionel No. 1506 Steam Locomotives
General Information

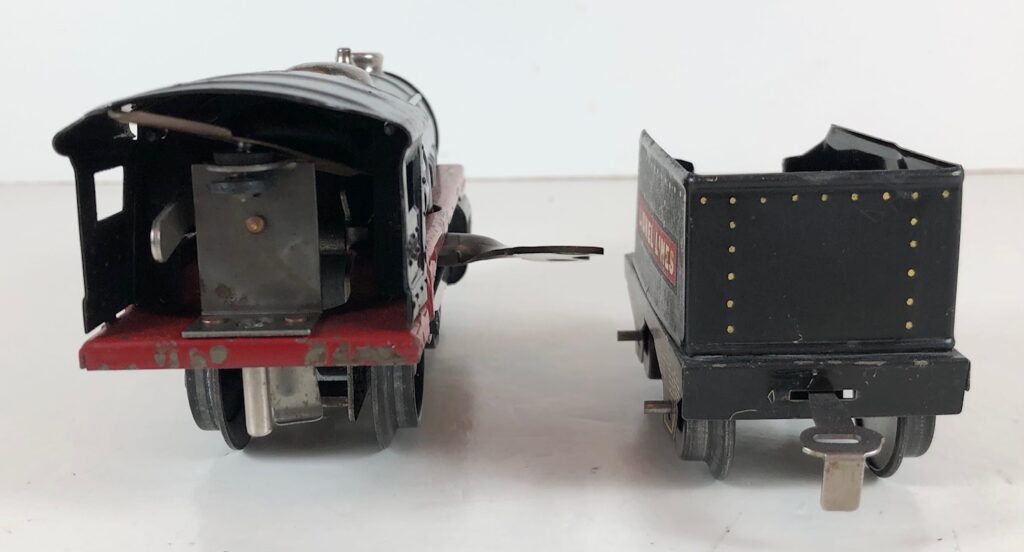

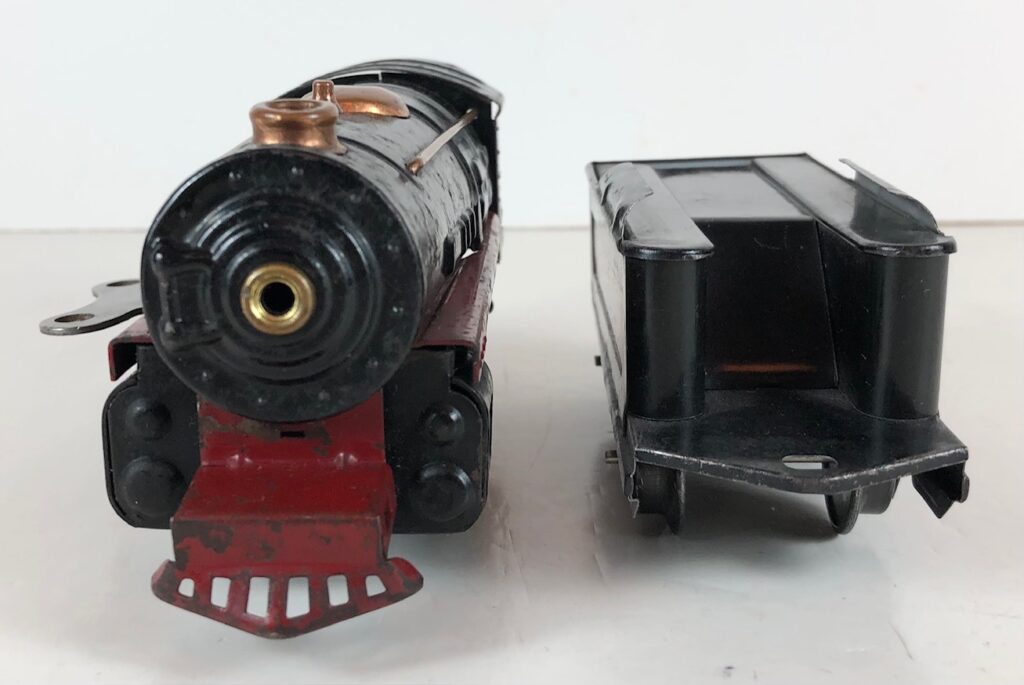

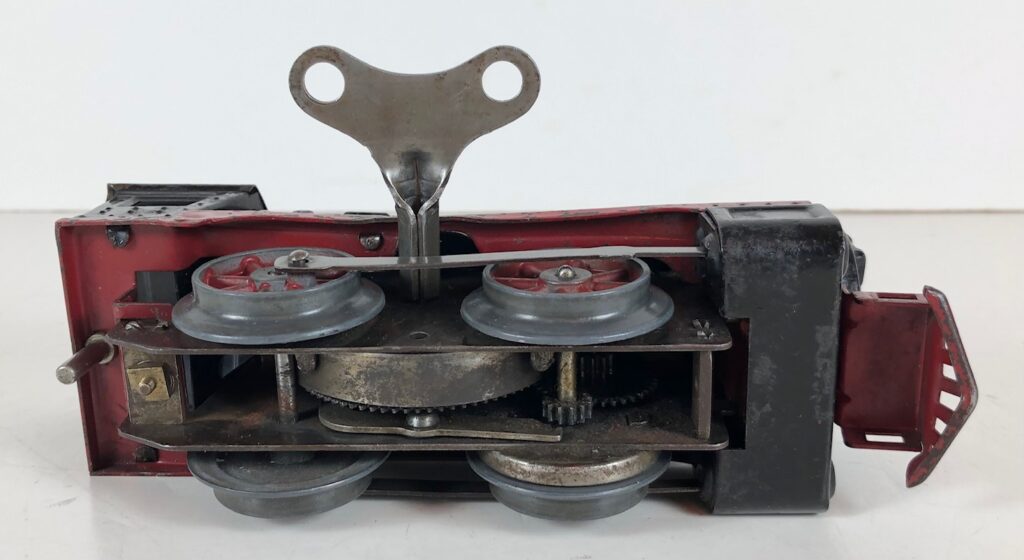

The Lionel No. 1506 Steam Locomotive was introduced in 1931 and cataloged through 1935. The No. 1506 Locomotive is powered by a mechanical or clockwork motor operated by a wind-up key. Locomotives with a removable key have a lever that serves as a brake when engaged that protrudes through the rear of the cab The No. 1506 Locomotive headed a number of freight and passenger sets. The 0-4-0 locomotive has a sheet metal painted body. The No. 1506 Steam Engine is paired with a variety of tenders including the No. 1507 Ives R.R. Lines Tender lithographed in red, No. 1502 Lionel-Ives Lines Tender lithographed in black, No. 1502T Lionel Lines Tender lithographed in black, and No. 1509 Mickey Mouse Tender lithographed in red. The No. 1506 / Tender Steam Locomotive measures between 9 3/4-inches and 10 3/4 7-inches in overall length depending upon the tender.
There are a number of variations of the No. 1506 Locomotive. The earliest locomotives had a screw key instead of the usual removable key and no operating bell. Other variations include the color of the body, the color of the drive wheels, and copper or nickel handrails and trim. Some of the locomotives have a battery operated headlight and are identified as No. 1506L.
Lionel No. 1506 Steam Locomotives
PHOTOS NEEDED
PHOTOS NEEDED

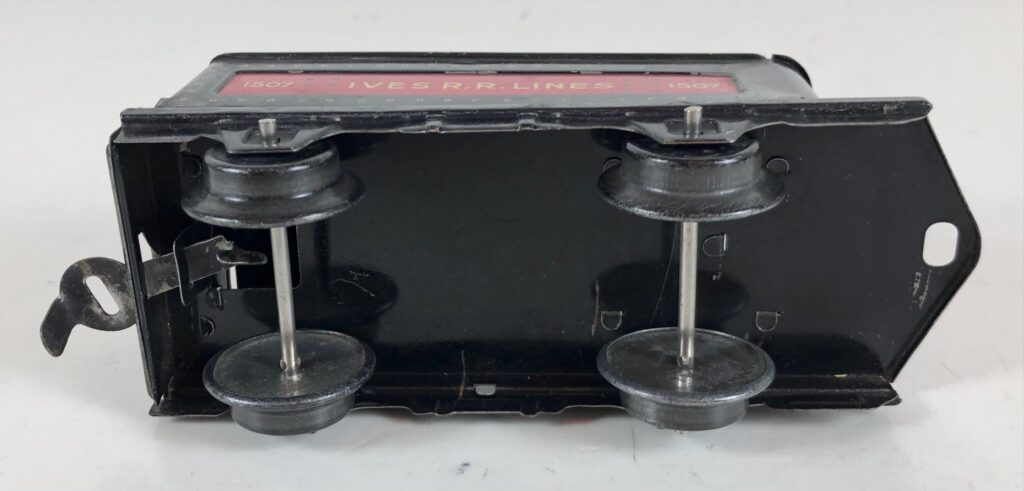

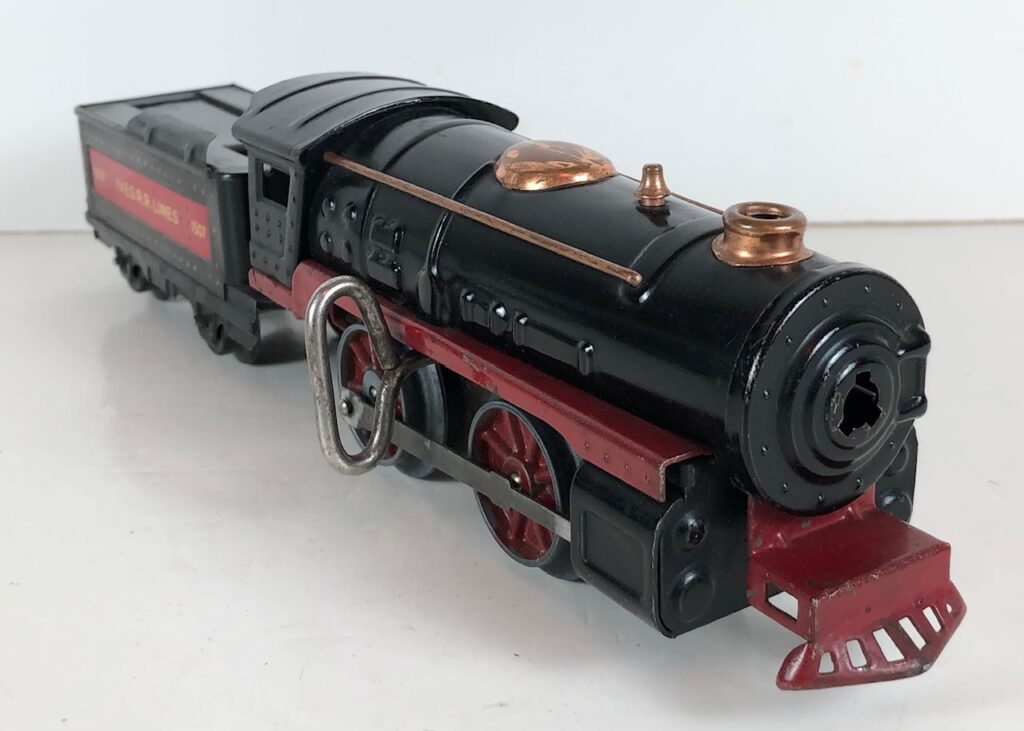

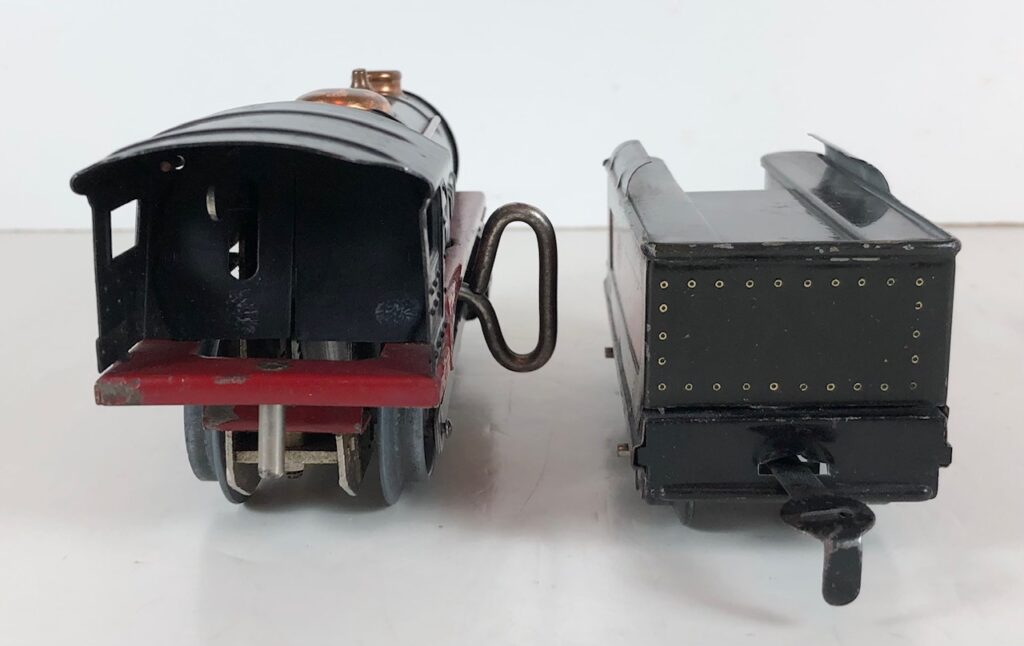

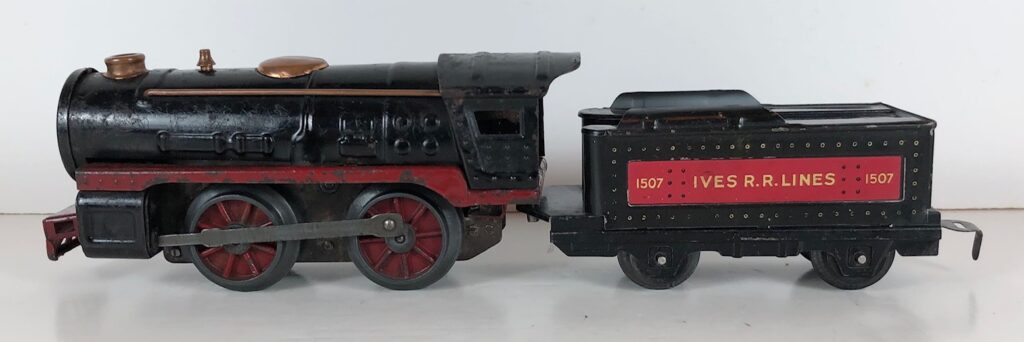

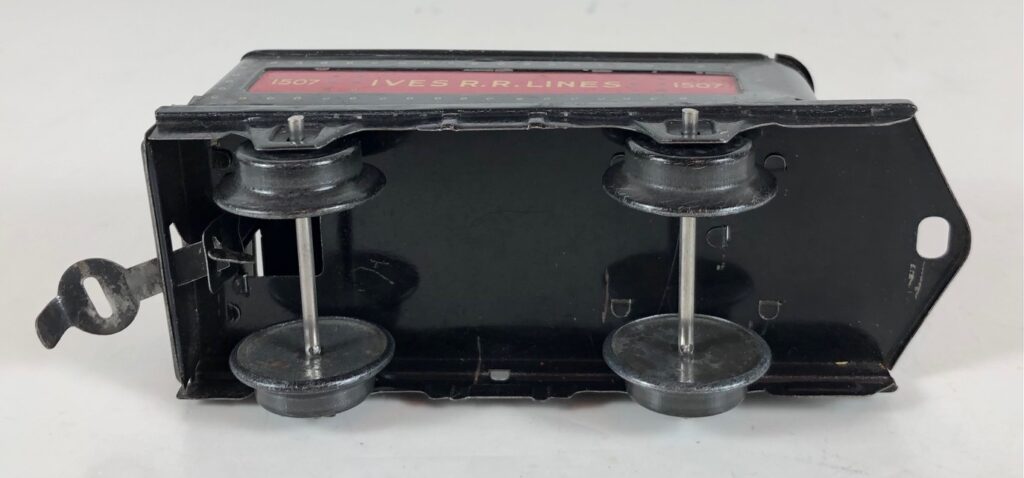

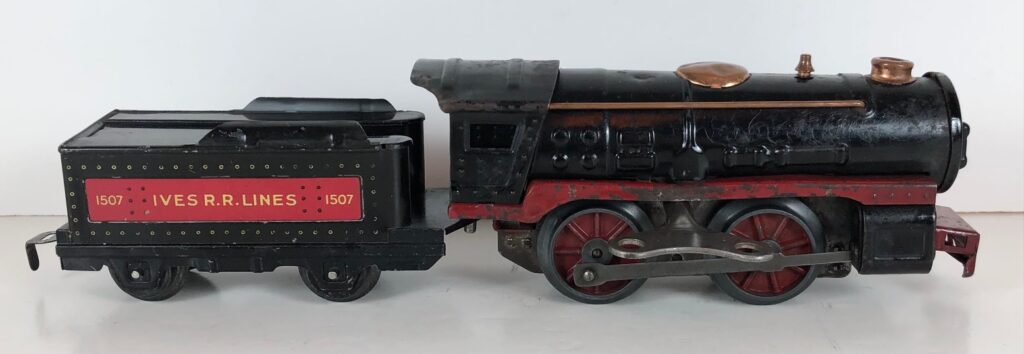

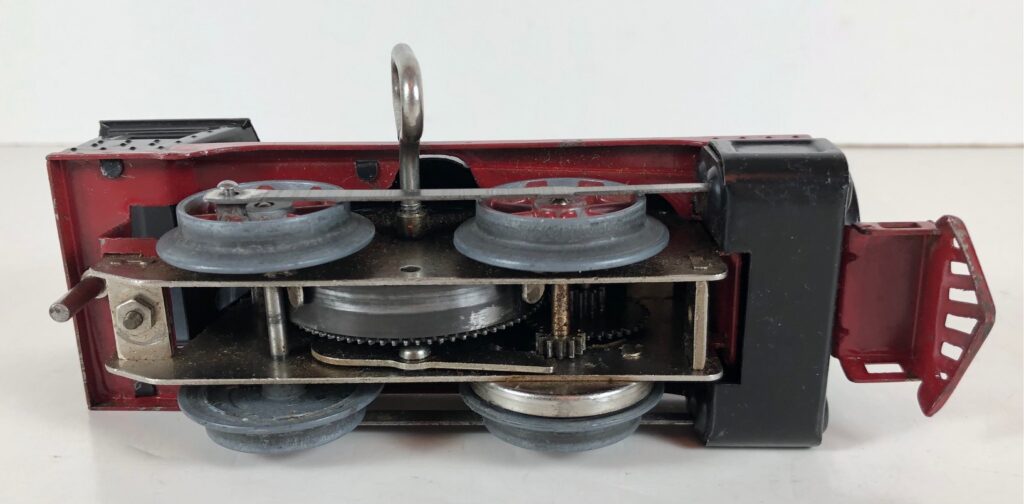

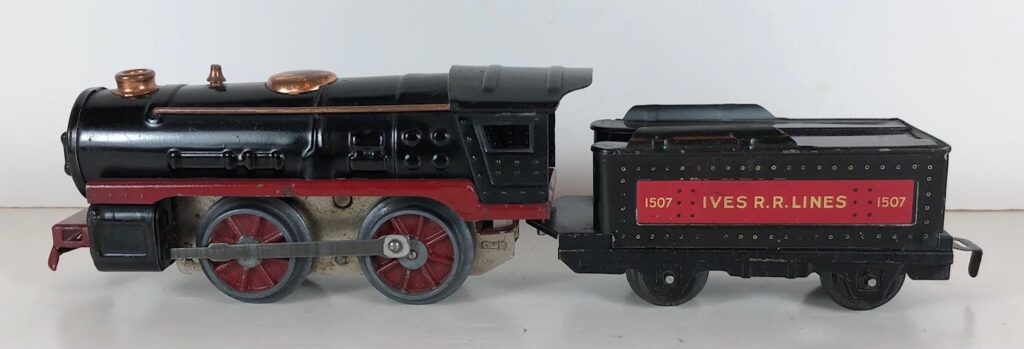

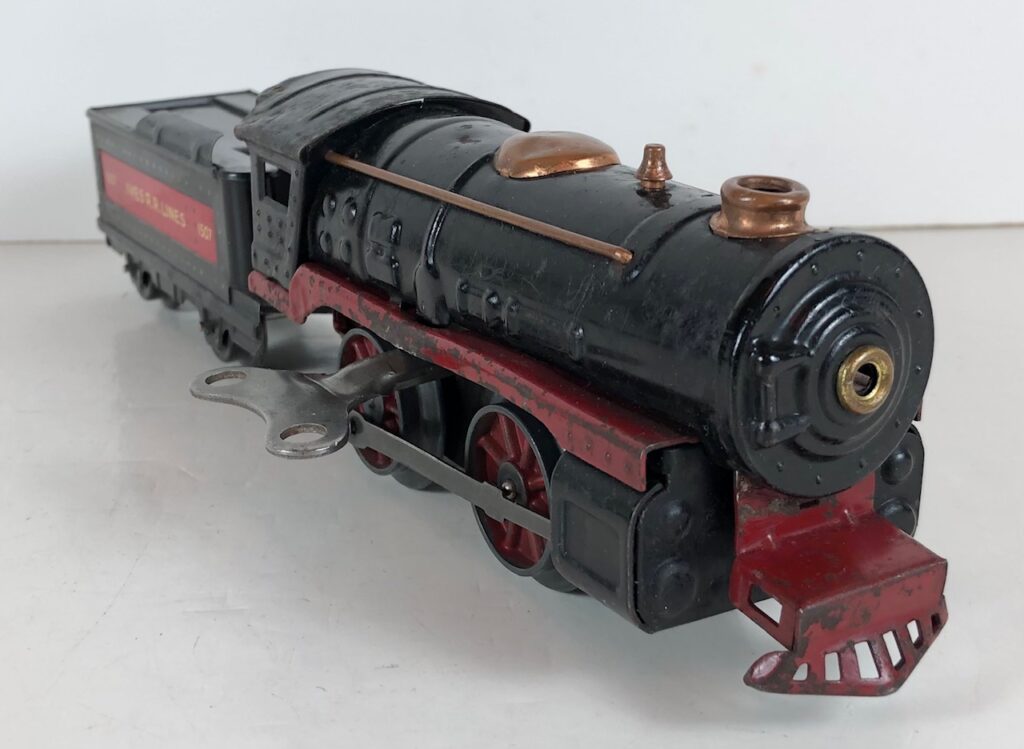

1. No. 1506 / 1507 0-4-0 Ives R.R. Lines Steam Locomotive in red and black (1931). The locomotive has a screw key, red drive wheels, copper handrails and copper trim. The locomotive does not have an operating bell or a headlight.

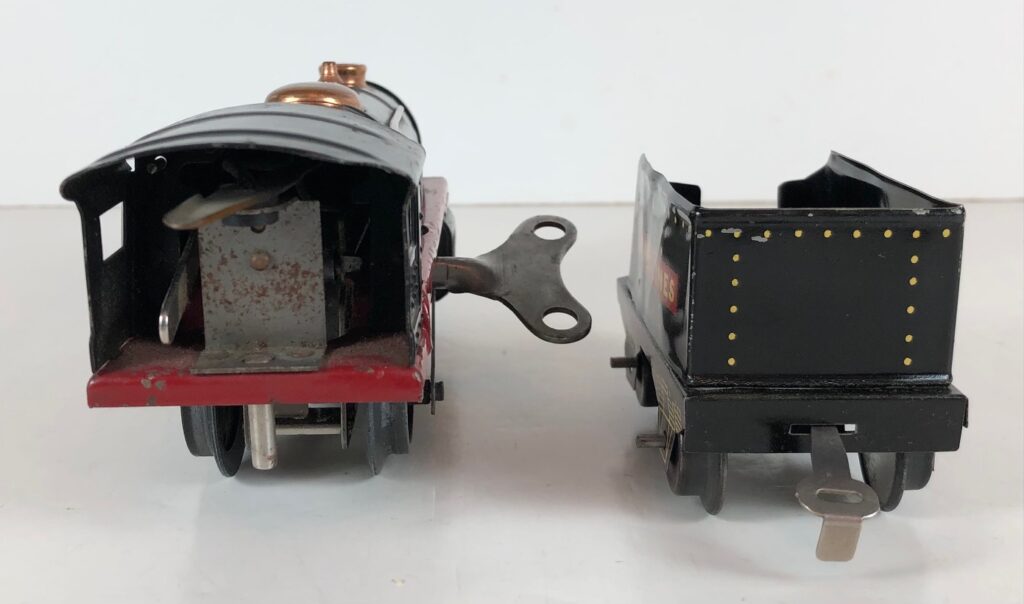

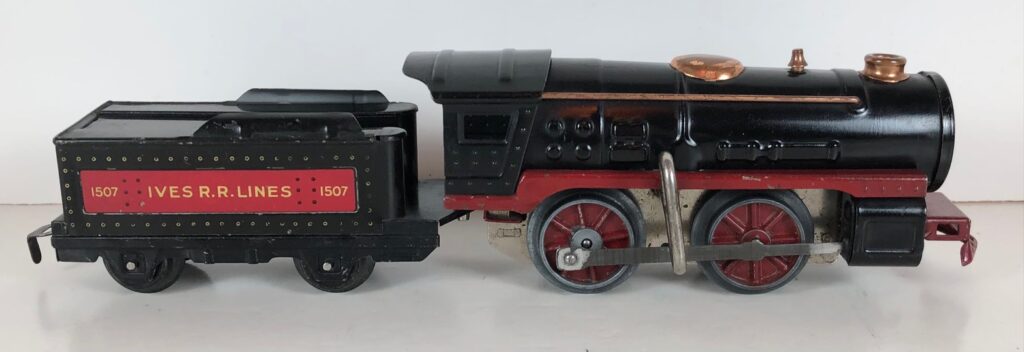

2. No. 1506 / 1507 0-4-0 Ives R.R. Lines Steam Locomotive in red and black (1932). The locomotive has a removable key, red drive wheels, copper handrails and copper trim. The locomotive has an operating bell, but no headlight.

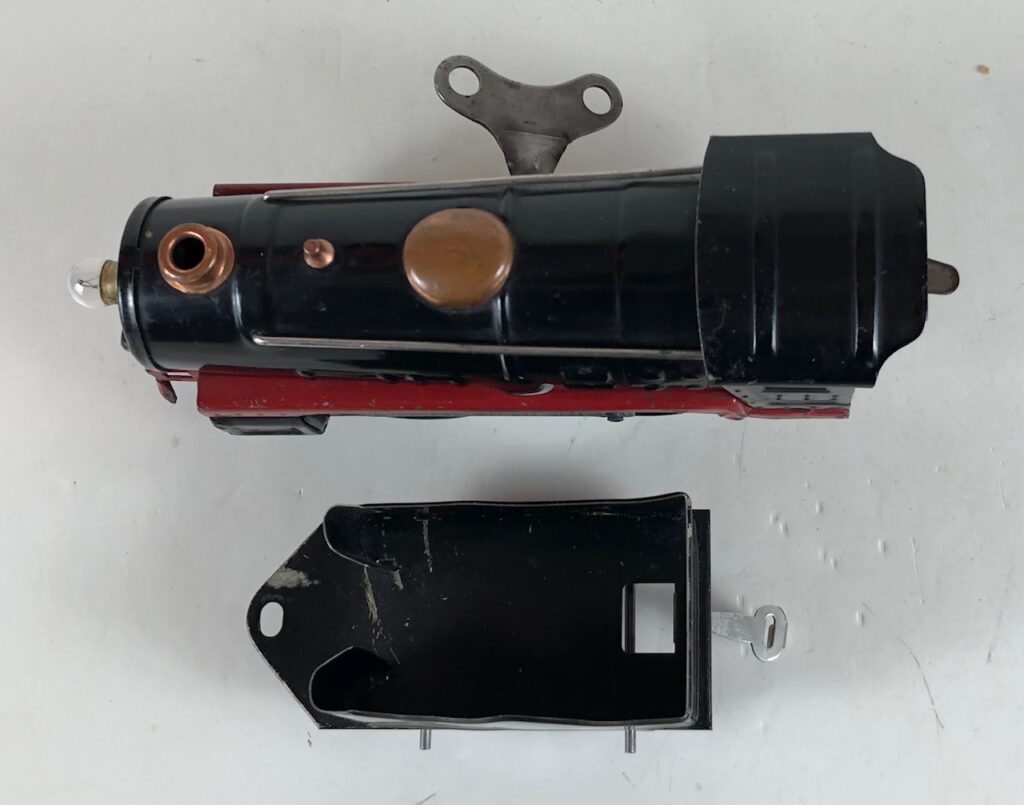

3. No. 1506L / 1502 0-4-0 Lionel – Ives Lines Steam Locomotive in red and black (1933). The locomotive has a removable key, red drive wheels, copper handrails, copper trim, operating bell and a battery operated headlight.
PHOTOS NEEDED

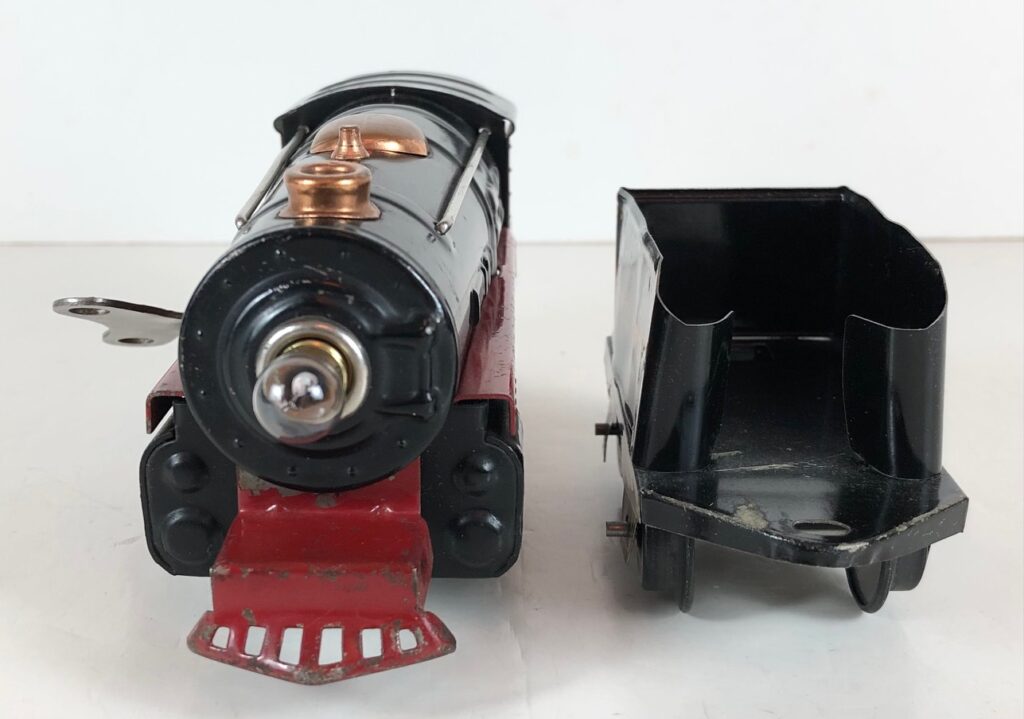

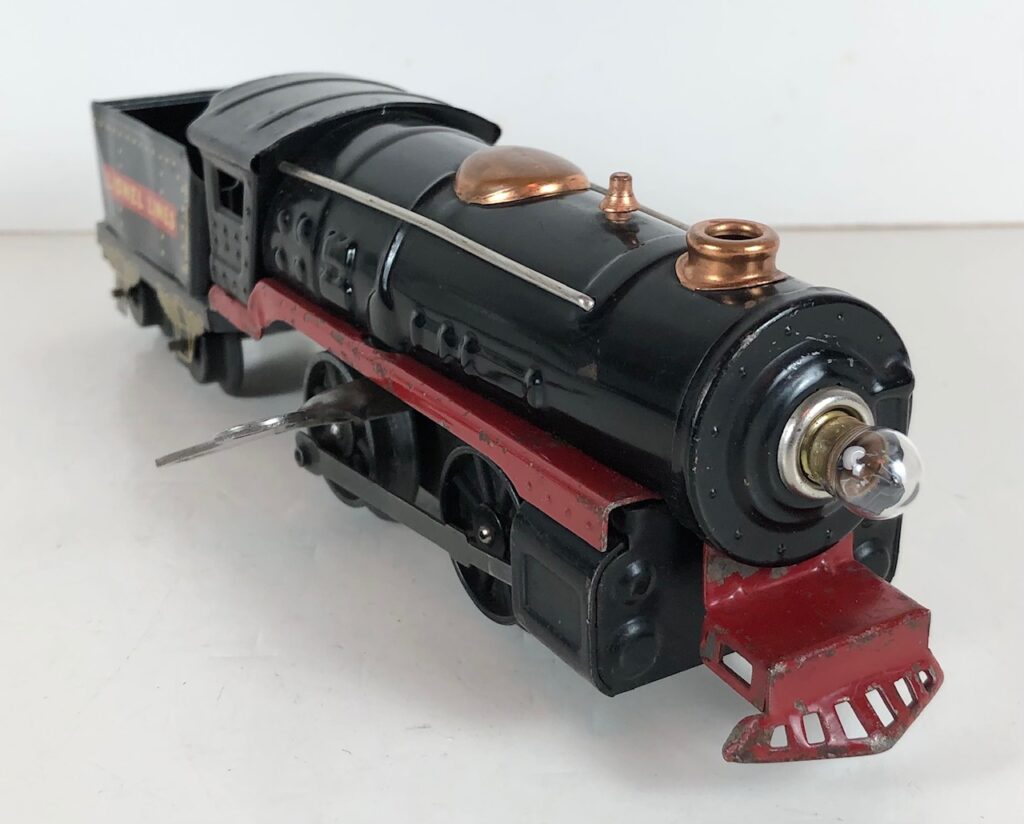

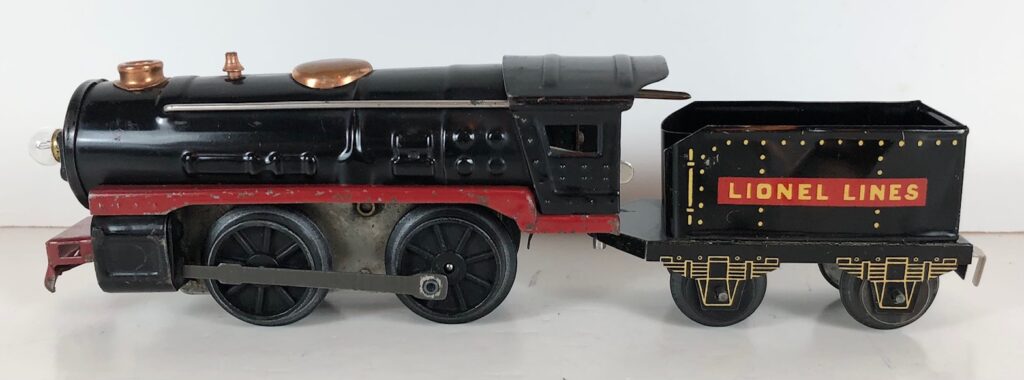

4. No. 1506L / 1502T 0-4-0 Lionel – Ives Lines Steam Locomotive in red and black (1934). The locomotive has a removable key, red drive wheels, nickel handrails, copper trim, operating bell and a battery operated headlight.

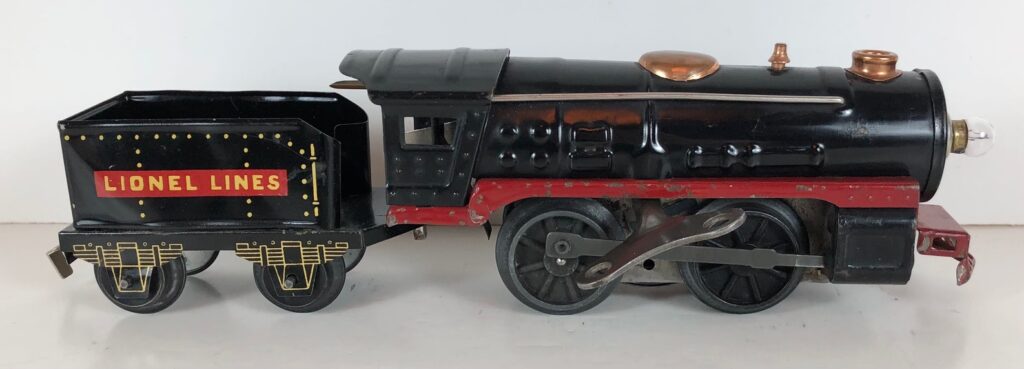

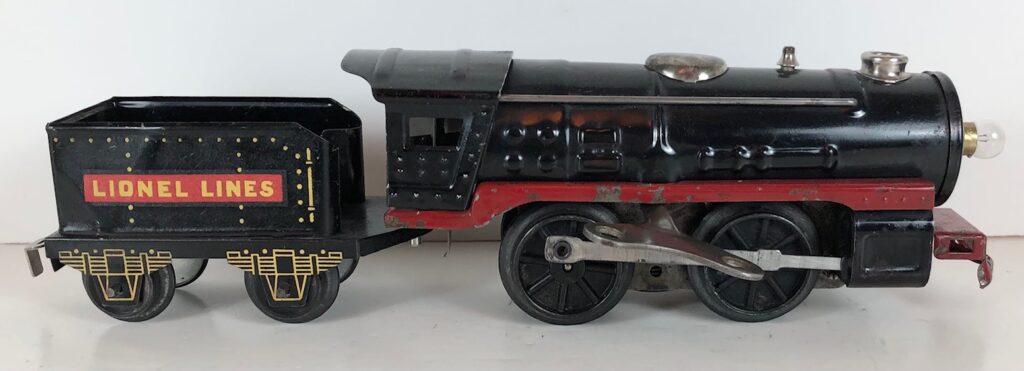

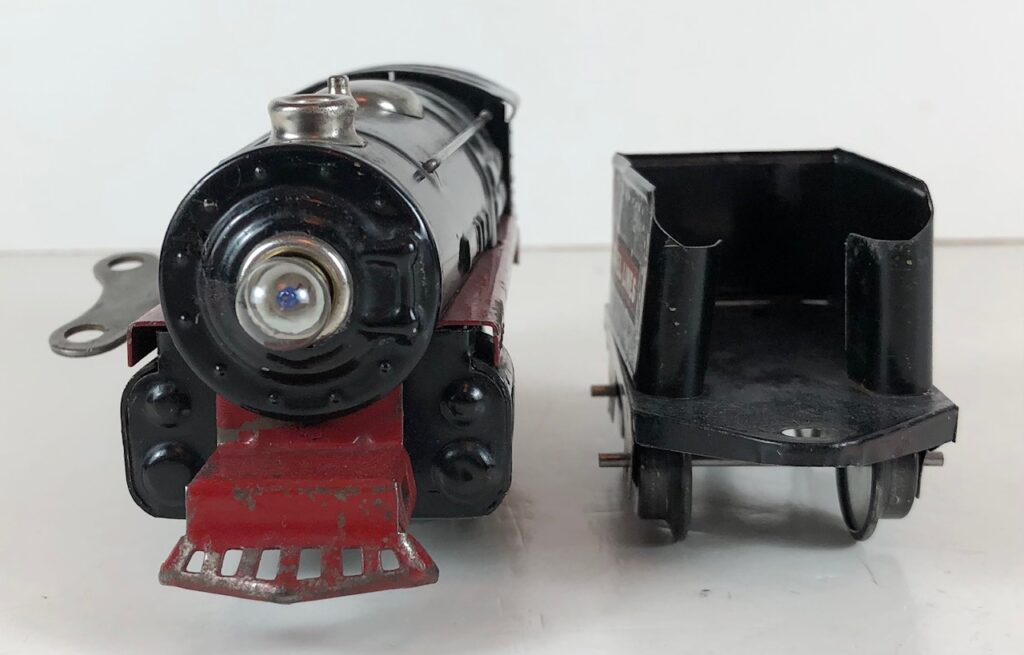

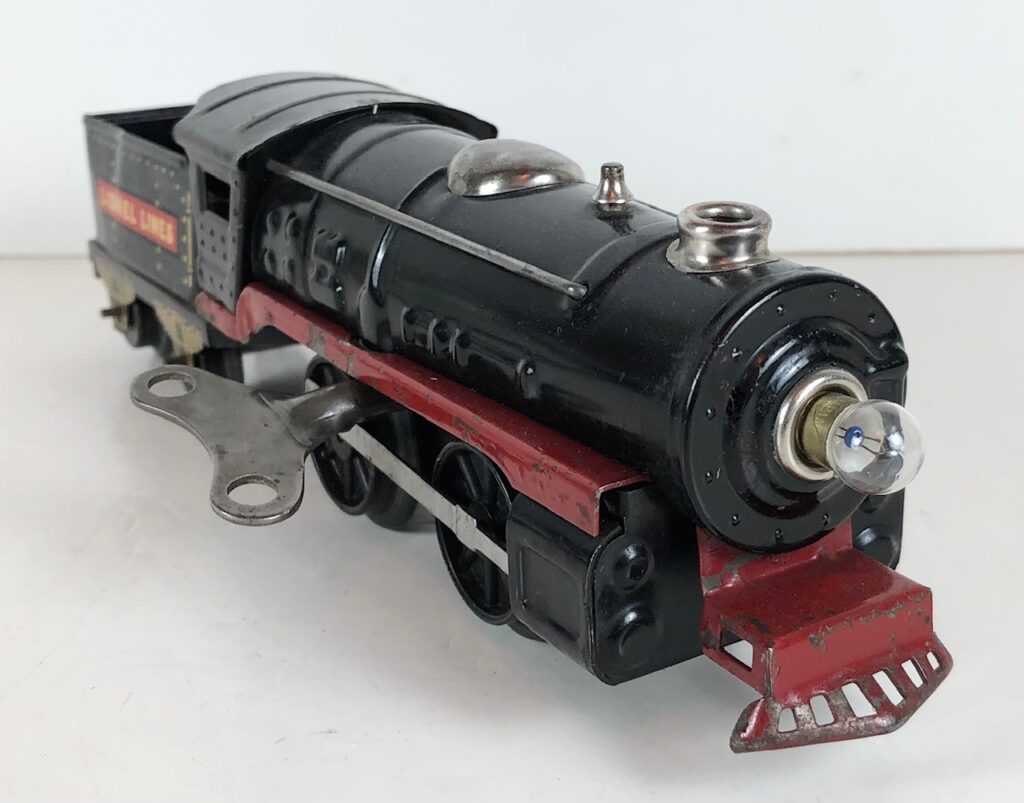

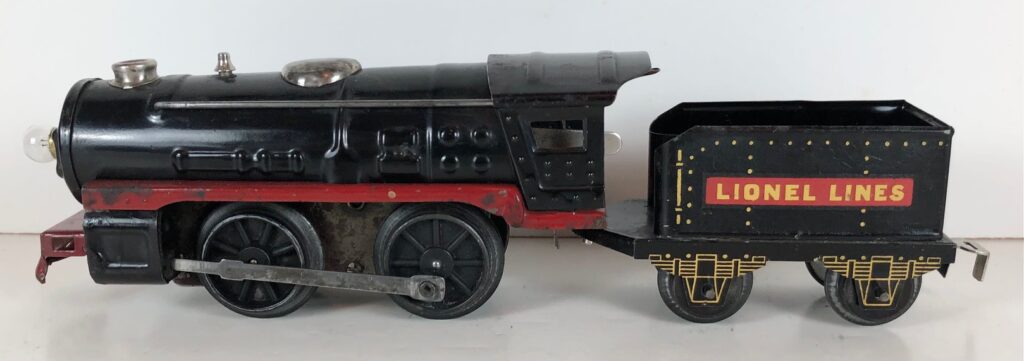

5. No. 1506L / 1502T 0-4-0 Lionel Lines Steam Locomotive in red and black (1934). The locomotive has a removable key, black drive wheels, nickel handrails, nickel trim, operating bell and a battery operated headlight.

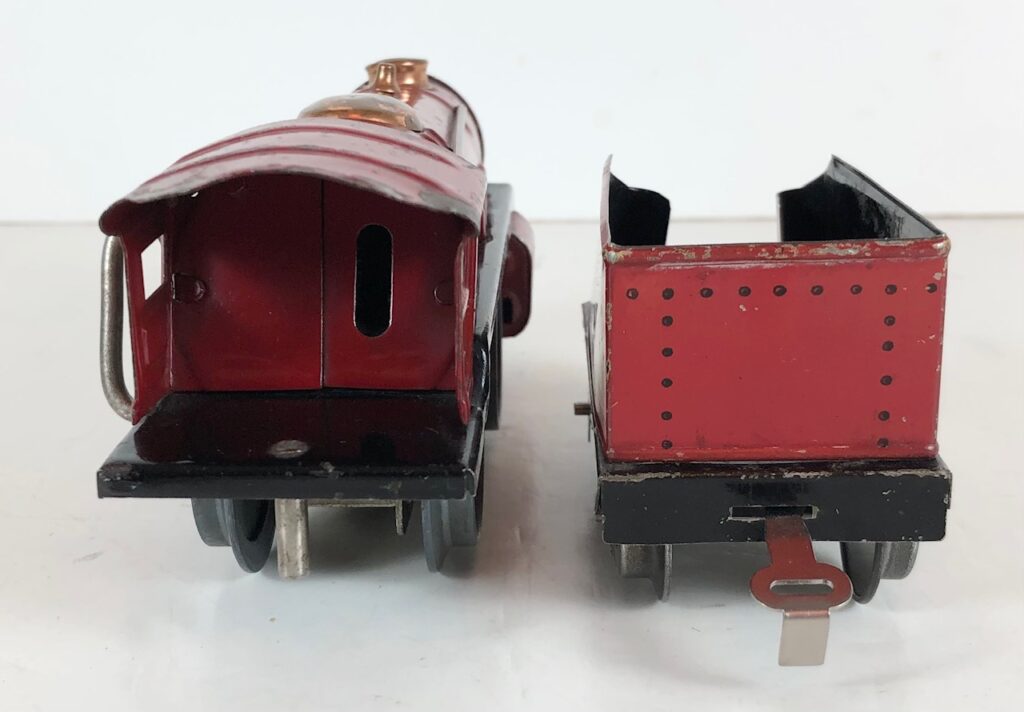

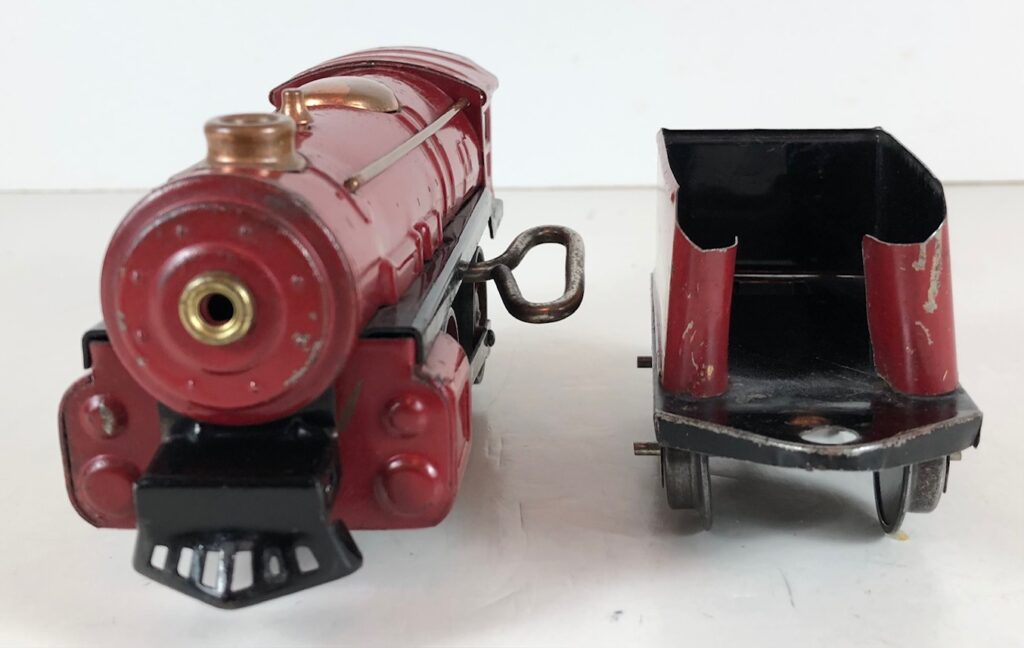

6. No. 1506 / 1509 0-4-0 Lionel Lines Steam Locomotive in red (1935). The locomotive has a removable key, black drive wheels, nickel handrails, and nickel trim and an operating bell. The locomotive does not have a headlight.
PHOTOS NEEDED
