THE FOLLOWING GP-7’s & GP-9’s WILL BE DOCUMENTED BELOW
Click or Scroll Down
No. 2028 PENNSYLVANIA GP 7’s
No. 2328 BURLINGTON GP 7’s
No. 2337 WABASH GP 7’s
No. 2338 MILWAUKEE ROAD GP 7’s
No. 2339 WABASH GP 7’s
No. 2346 BOSTON & MAINE GP 9’s
No. 2347 C & O GP 7’s
No. 2348 M ST L GP 9’s
No. 2349 NORTHERN PACIFIC GP 9’s
No. 2359 BOSTON & MAINE GP 9’s
No. 2365 C & O GP 7’s
THE No. 2028 PENNSYLVANIA GP 7’s
No. 2028 PENNSYLVANIA GP 7’s 1955
brown unpainted shell with yellow rubber stamped lettering, handrails riveted to frame
DE0092
ANGLE VIEW
note yellow rubber stamped lettering and gold painted frame
note handrails riveted to frame
END VIEW
TOP VIEW
VIEW WITH SHELL REMOVED
one vertical motor
3 position E unit
with magnetraction
light on cab end only
without number boards and headlight lens on both ends
without horn
operating couplers on both ends
without ornamental horns
without front wire handrails
without belly fuel tank
KIECKHEFER corrugated box # 2028 – 15
Inst # 2028 – 5 dated 7 – 55 printed in blue on white paper
No. 2028 PENNSYLVANIA GP 7’s 1955
brown unpainted shell with white rubber stamped lettering
handrails welded to frame with holes remaining
DE0090
ANGLE VIEW
note white rubber stamped lettering and gold painted frame
note handrails welded to frame with holes remaining
END VIEW
TOP VIEW
VIEW WITH SHELL REMOVED
one vertical motor
3 position E unit
with magnetraction
light on cab end only
without number boards and headlight lens on both ends
without horn
operating couplers on both ends
without ornamental horns
without front wire handrails
without belly fuel tank
KIECKHEFER corrugated box # 2028 – 15
Inst # 2028 – 5 dated 7 – 55 printed in blue on white paper
No. 2028 PENNSYLVANIA GP 7’s 1955
brown unpainted shell with gold rubber stamped lettering
handrails welded to frame with holes remaining
DE0091
ANGLE VIEW
note gold rubber stamped lettering and gold painted frame
note handrails welded to frame with holes remaining
END VIEW
TOP VIEW
VIEW WITH SHELL REMOVED
ornamental horns added post production
one vertical motor
3 position E unit
with magnetraction
light on cab end only
without number boards and headlight lens on both ends
without horn
operating couplers on both ends
without ornamental horns
without front wire handrails
without belly fuel tank
KIECKHEFER corrugated box # 2028 – 17
Inst # 2028 – 5 dated 7 – 55 printed in blue on white paper
No. 2028 PENNSYLVANIA GP 7’s 1955
brown unpainted shell with gold rubber stamped lettering (weak lettering)
tan painted frame
handrails welded to frame with holes remaining
DE0274
ANGLE VIEW
note gold rubber stamped lettering and tan painted frame
note handrails welded to frame with holes remaining
END VIEW
TOP VIEW
VIEW WITH SHELL REMOVED
one vertical motor
3 position E unit
with magnetraction
light on cab end only
without number boards and headlight lens on both ends
without horn
operating couplers on both ends
without ornamental horns
without front wire handrails
without belly fuel tank
KIECKHEFER corrugated box # 2028 – 17
Inst # 2028 – 5 dated 7 – 55 printed in blue on white paper
THE No. 2328 BURLINGTON GP 7’s
No. 2328 BURLINGTON GP 7’s 1955
gray shell painted silver with red (in the logo) & black rubber stamped lettering
DE0093
ANGLE VIEW
note welded handrails without holes
END VIEW
TOP VIEW
VIEW WITH SHELL REMOVED
in 1955 Lionel used a narrow front bulb bracket where the screw securing the shell screws into
one vertical motor
3 position E unit
with magnetraction
light at both ends
number boards and headlight lens on both ends
with horn
operating couplers on both ends
without ornamental horns
without front wire handrails
without belly fuel tank
KIECKHEFER CONTAINER corrugated box # 2328 – 17
Inst # 2328 – 6 dated 7 – 55 printed blue on white paper
with additional Inst Form No. 1574 dated 10 – 55 printed black on white paper
No. 2328 BURLINGTON GP 7’s 1956
gray shell painted silver with red (in the logo) & black rubber stamped lettering
DE0094
ANGLE VIEW
note welded handrails without holes
END VIEW
TOP VIEW
VIEW WITH SHELL REMOVED
in 1956 Lionel used a wider front bulb bracket where the screw securing the shell screws into
one vertical motor
3 position E unit
with magnetraction
light at both ends
number boards and headlight lens on both ends
with horn
operating couplers on both ends
with ornamental horns
with front wire handrails
without belly fuel tank
over stamped late classic box # X 2338 – 31
Inst # 2328 – 6 dated 3 – 56 printed blue on white paper
THE No. 2337 WABASH GP 7’s
No. 2337 WABASH GP 7’s 1958
gray shell painted blue, gray and white with white heat stamped lettering, with WABASH decals on sides of cab
DE0095
ANGLE VIEW
END VIEW
TOP VIEW
VIEW WITH SHELL REMOVED
one vertical motor
3 position E unit
with magnetraction
lights on both ends
number boards and headlight lens on both ends
with horn
non operating couplers on both ends
with ornamental horns
with front wire handrails
with belly fuel tank
NEED PICTURE OF BOX AND INSTRUCTION INFO
THE No. 2338 MILWAUKEE ROAD GP 7’s
No. 2338 MILWAUKEE ROAD GP 7’s 1955
Orange molded cab with painted black roof & sides
ANGLE VIEW
note translucent orange shell with only top half of cab side painted black
END VIEW
TOP VIEW
VIEW WITH SHELL REMOVED
one vertical motor
3 position E unit
with magnetraction
lights on both ends
number boards and headlight lens on both ends
with horn
operating couplers on both ends
with ornamental horns
with front wire handrails
with belly fuel tank
SCHIFFENHAUS BROS. corrugated box # 2338 – 15
Inst. 2328 – 6 dated 7 – 55 printed in blue on white paper, 4 pages
No. 2338 MILWAUKEE ROAD GP 7’s 1955
translucent orange shell painted only flat black with black and white heat stamped lettering, with rubber stamped Milwaukee Road logo, with interior of shell painted black, with entire side of cab painted black
DE0097
ANGLE VIEW
note translucent orange shell with entire side of cab painted black
END VIEW
TOP VIEW
VIEW WITH SHELL REMOVED
note interior of shell painted black
one vertical motor
3 position E unit
with magnetraction
lights on both ends
number boards and headlight lens on both ends
with horn
operating couplers on both ends
with ornamental horns
with front wire handrails
with belly fuel tank
SCHIFFENHAUS BROS. corrugated box # 2338 – 15
Inst. 2328 – 6 dated 7 – 55 printed in blue on white paper, 4 pages
No. 2338 MILWAUKEE ROAD GP 7’s 1956
opaque orange shell painted only flat black with black and white heat stamped lettering, with rubber stamped Milwaukee Road logo
DE0098
ANGLE VIEW
note flat black paint
END VIEW
TOP VIEW
VIEW WITH SHELL REMOVED
one vertical motor
3 position E unit
with magnetraction
lights on both ends
number boards and headlight lens on both ends
with horn
operating couplers on both ends
with ornamental horns
with front wire handrails
with belly fuel tank
SCHIFFENHAUS BROS. corrugated box # 2338 – 15
Inst. # 2328 – 6 dated 3 – 56 printed in black on white paper, 4 pages
No. 2338 MILWAUKEE ROAD GP 7’s 1956
opaque orange shell painted only glossy black with black and white heat stamped lettering, with rubber stamped Milwaukee Road logo
DE0099
ANGLE VIEW
note glossy black paint
END VIEW
END VIEW
VIEW WITH SHELL REMOVED
one vertical motor
3 position E unit
with magnetraction
lights on both ends
number boards and headlight lens on both ends
with horn
operating couplers on both ends
with ornamental horns
with front wire handrails
with belly fuel tank
late classic box flap # 2338 – 31
Inst. # 2328 – 6 dated 3 – 56 printed in black on white paper, 4 pages
THE No. 2339 WABASH GP 7’s

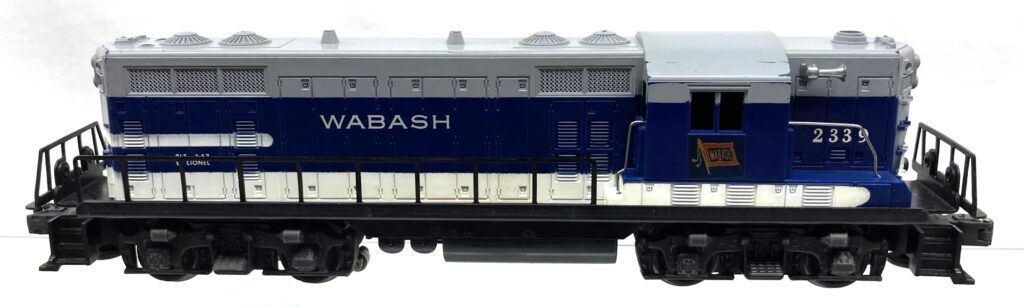

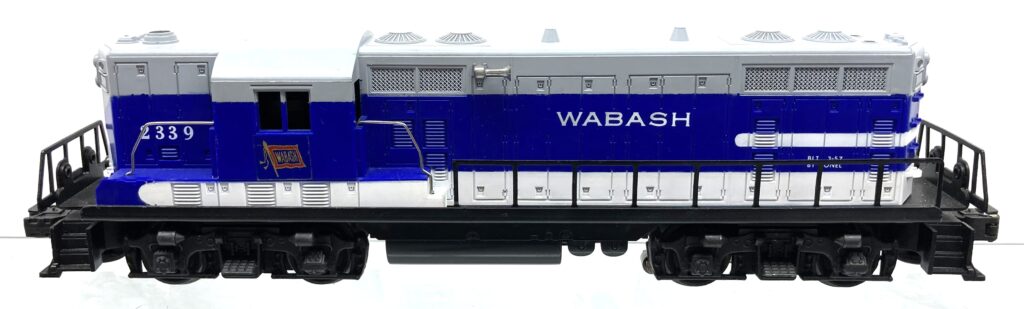

No. 2339 WABASH GP 7’s 1957

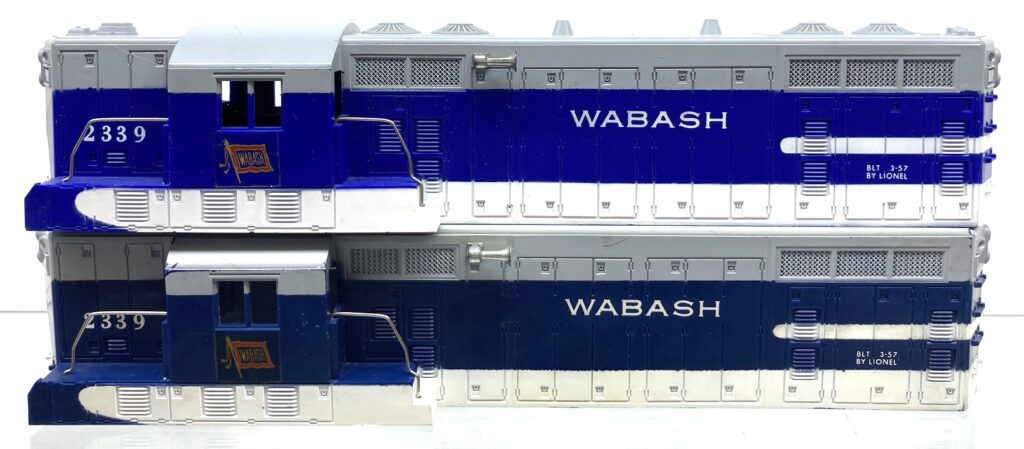

light blue shell painted blue, gray and white with white heat stamped lettering, with WABASH decals on sides of cab
DE0100

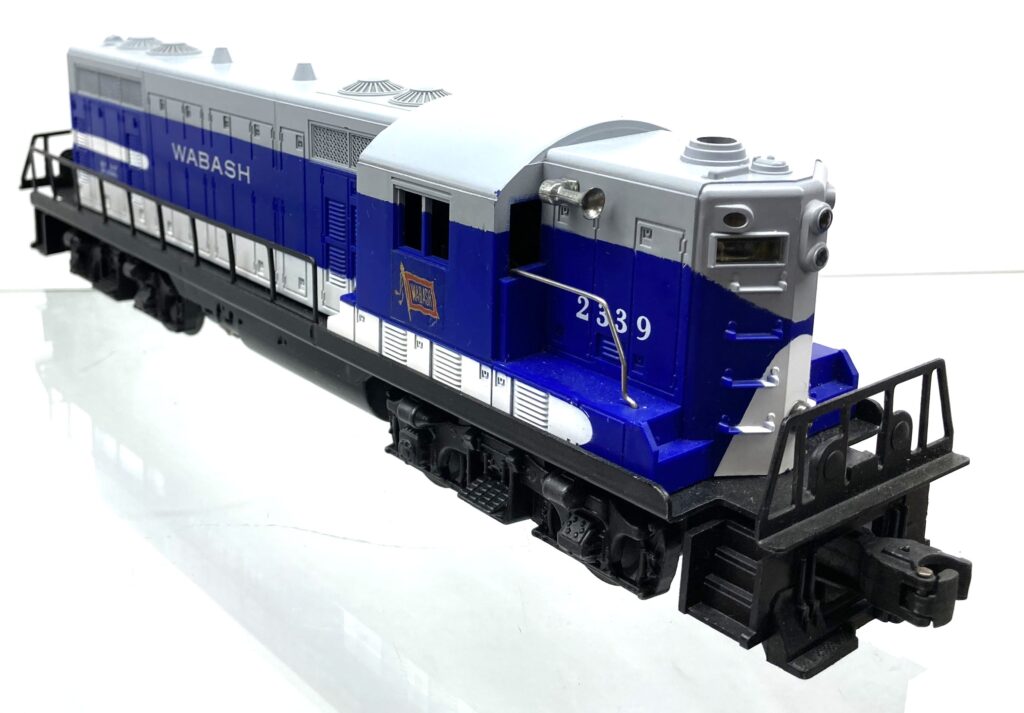

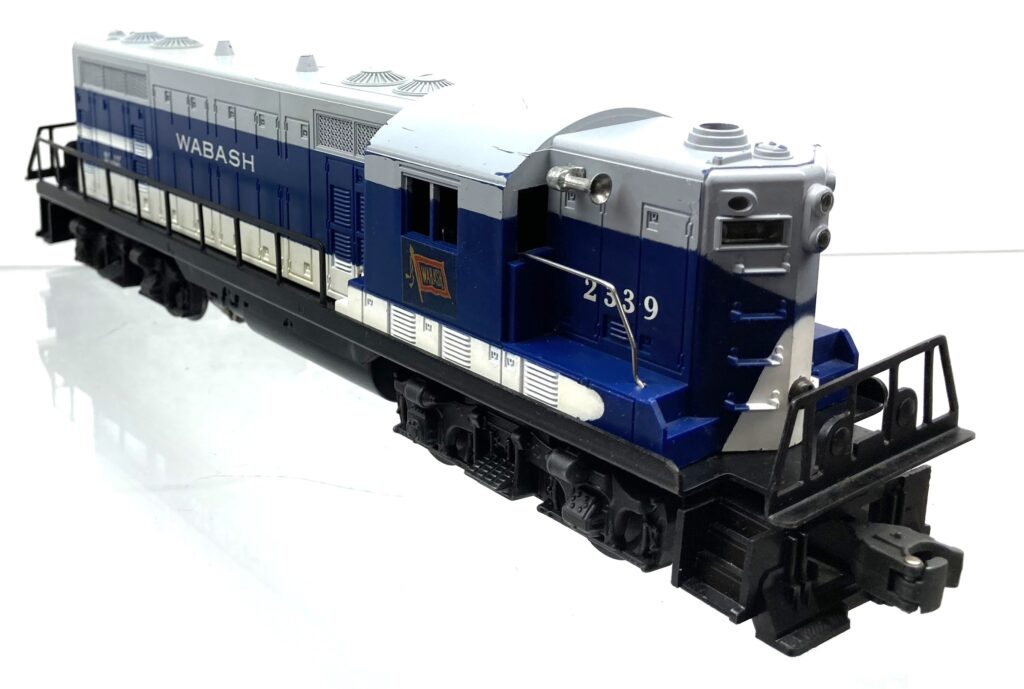

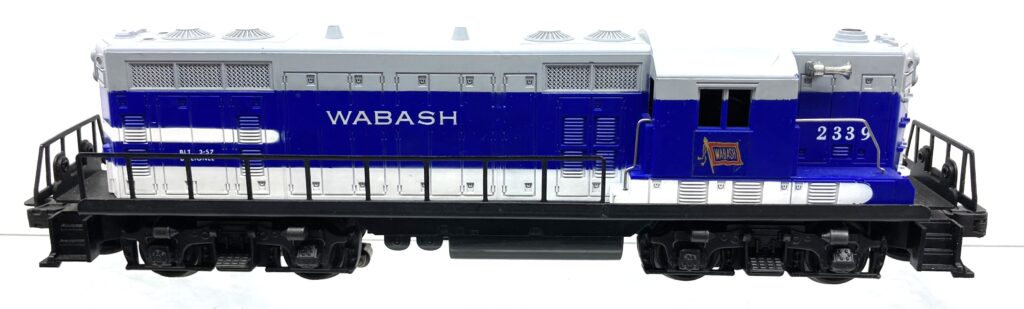

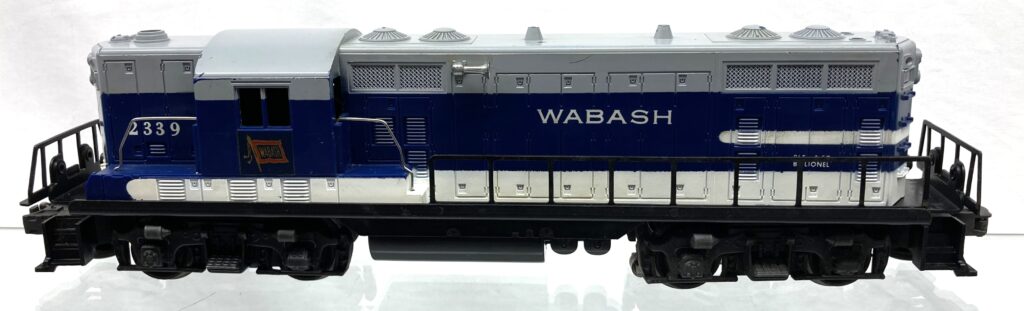

ANGLE VIEW

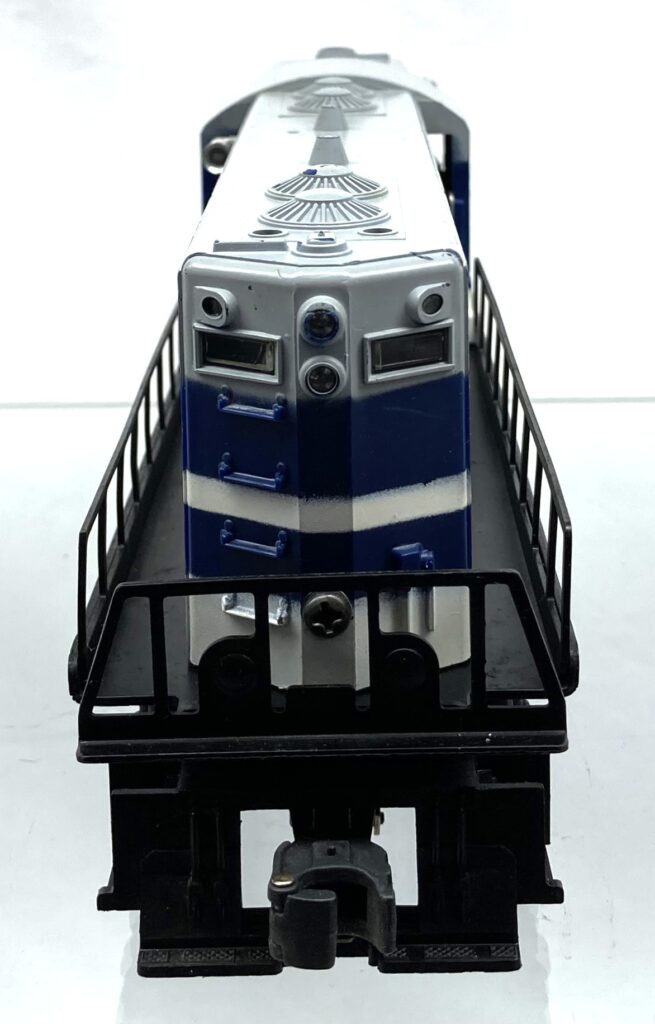

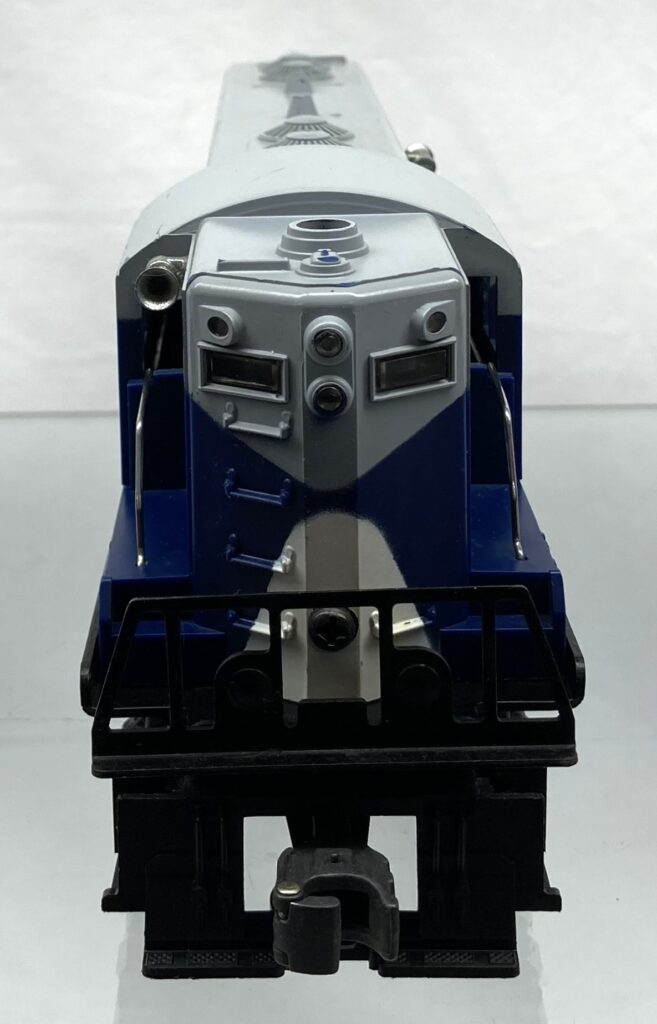

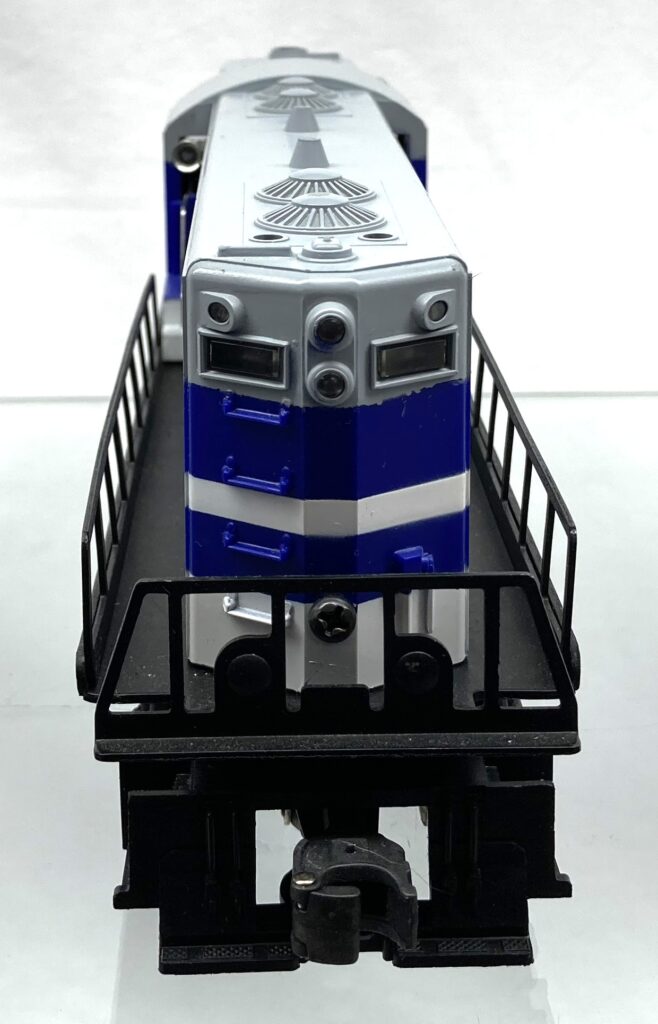

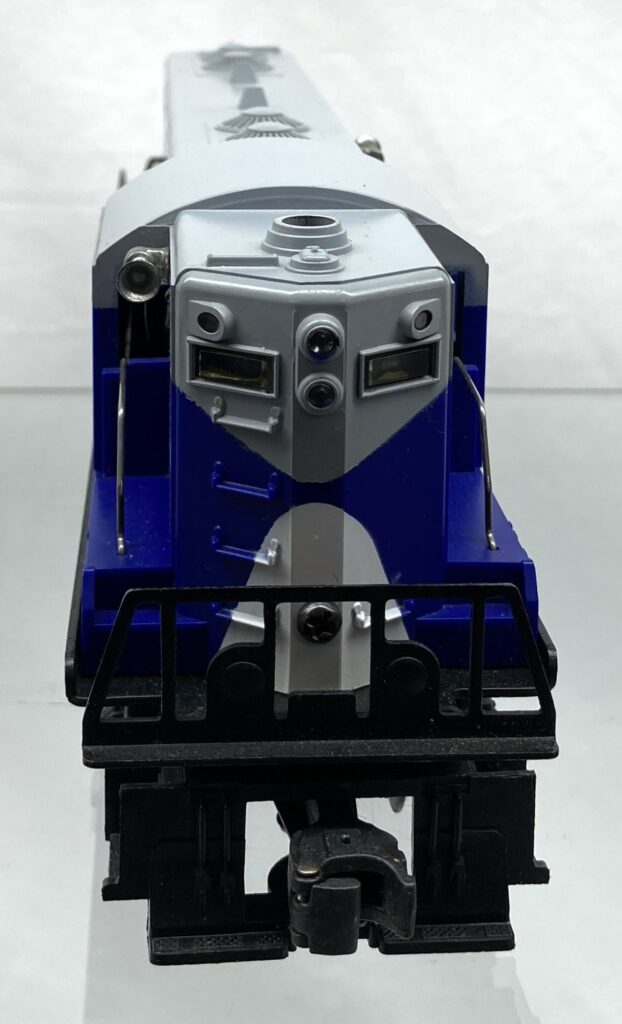

END VIEW

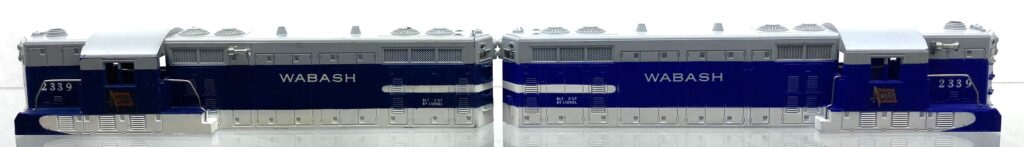

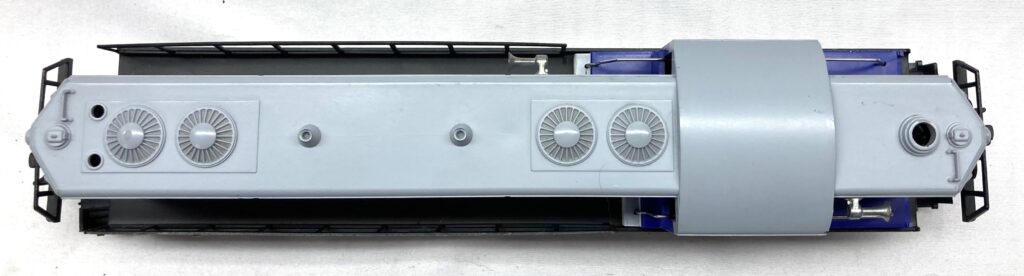

TOP VIEW

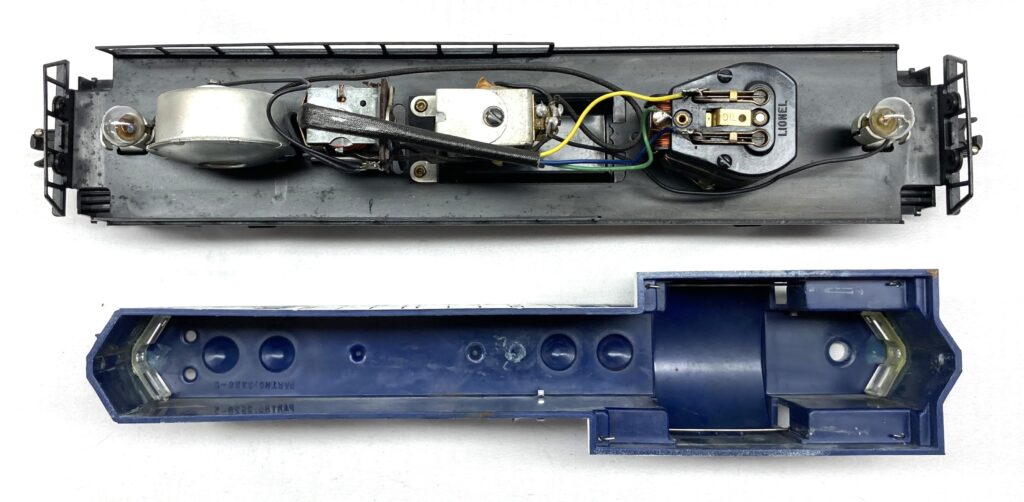

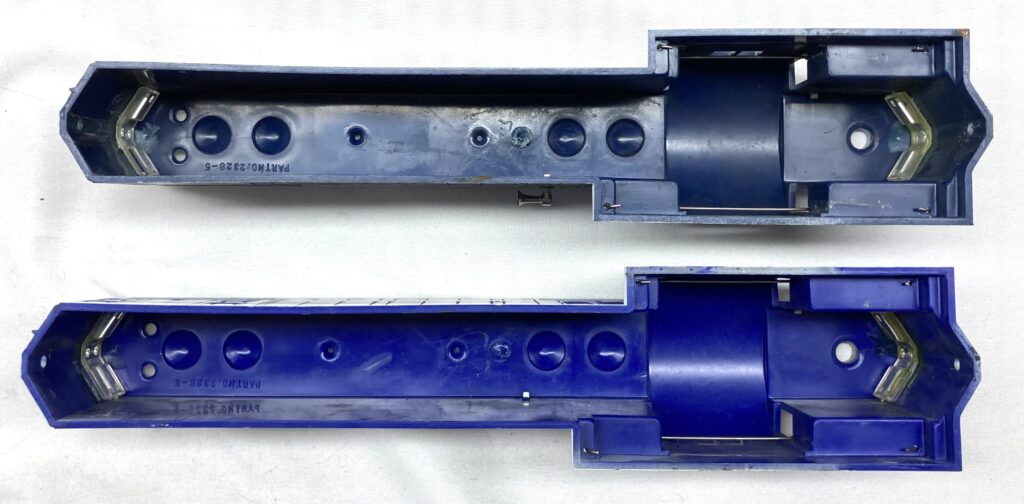

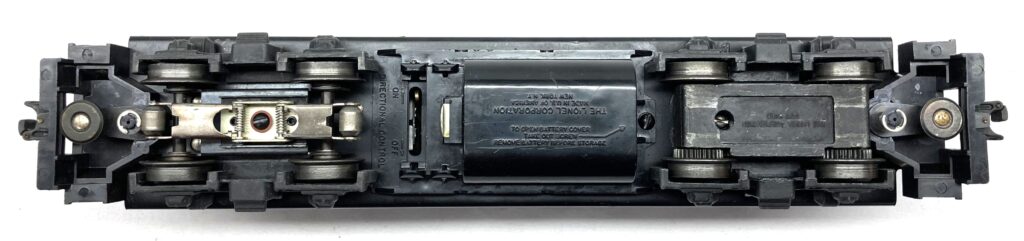

VIEW WITH SHELL REMOVED
one vertical motor
3 position E unit
with magnetraction
lights on both ends
number boards and headlight lens on both ends
with horn
operating couplers on both ends
with ornamental horns
with front wire handrails
with belly fuel tank
late classic box
with replaced tuck flap
THE No. 2346 BOSTON & MAINE GP 9’s
No. 2346 BOSTON & MAINE GP 9’S 1965
black shell painted blue, black and white with white and black lettering on cab sides and logo on sides DE0102
ANGLE VIEW
END VIEW
TOP VIEW
VIEW WITH SHELL REMOVED
one vertical motor
3 position E unit
with magnetraction
lights on both ends
number boards and headlight lens on both ends
with horn
operating couplers on both ends
with ornamental horns
with front wire handrails
with belly fuel tank
STANDARD CONT. corrugated box
Inst. # 2346 – 5 dated 6 – 65 printed in black on white paper, 4 pages
No. 2346 BOSTON & MAINE GP 9’S 1966
gray shell painted blue, black and white with white and black lettering on cab sides and logo on sides
DE0286
ANGLE VIEW
END VIEW
TOP VIEW
VIEW WITH SHELL REMOVED
one vertical motor
3 position E unit
with magnetraction
lights on both ends
number boards and headlight lens on both ends
with horn
operating couplers on both ends
with ornamental horns
with front wire handrails
with belly fuel tank
ST. JOE KRAFT corrugated box # 2346 – 6
Inst. # 2346 – 5 dated 6 – 65 printed in black on white paper, 4 pages
THE No. 2347 C & O GP 7’s
No. 2347 C & O GP 7’s 1965
black shell painted blue with yellow heat stamped lettering
DE0103
ANGLE VIEW
note factory touch ups and nicked up frames are common on this engine
END VIEW
TOP VIEW
VIEW WITH SHELL REMOVED
one vertical motor
3 position E unit
with magnetraction
lights on both ends
number boards and headlight lens on both ends
with horn
operating couplers on both ends
with ornamental horns
with front wire handrails
with belly fuel tank
NEED PICTURE OF BOX
MEAD corrugated perforated type box # 2359 – 13
without perforations
with number stamped on end
Inst # 2346 – 5 dated 6 – 65 printed black on white paper
THE No. 2348 M ST L GP 9’s
No. 2348 M ST L GP 9’S 1959
black shell painted red and white with white and red heat stamped lettering
DE0104
ANGLE VIEW
END VIEW
TOP VIEW
VIEW WITH SHELL REMOVED
note how Lionel painted the inside of the red shell black at the ends to fix the translucency of the shell
one vertical motor
3 position E unit
with magnetraction
lights on both ends
number boards and headlight lens on both ends
with horn
operating couplers on both ends
with ornamental horns
with front wire handrails
with belly fuel tank
STAR CONTAINER corrugated box # 2348 – 6
Inst. 2348 – 10 dated 6 – 58 printed in blue on white paper, 4 pages

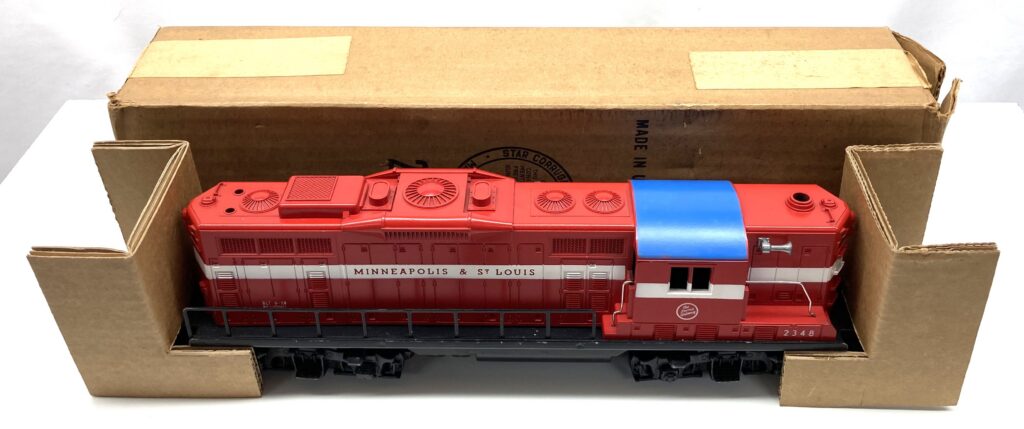

No. 2348 M ST L GP 9’S 1958 – 1959
gray shell painted red and white with white and red heat stamped lettering
DE0105
ANGLE VIEW
END VIEW
TOP VIEW
VIEW WITH SHELL REMOVED
one vertical motor
3 position E unit
with magnetraction
lights on both ends
number boards and headlight lens on both ends
with horn
operating couplers on both ends
with ornamental horns
with front wire handrails
with belly fuel tank

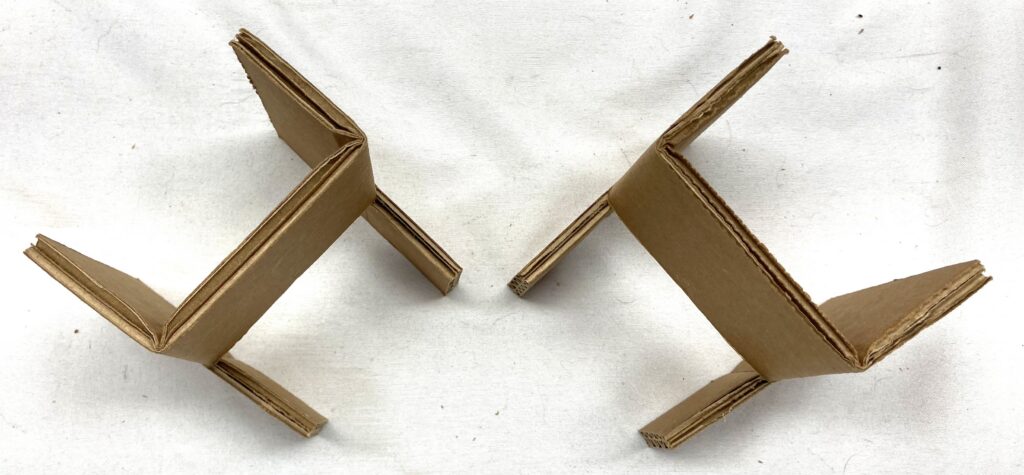

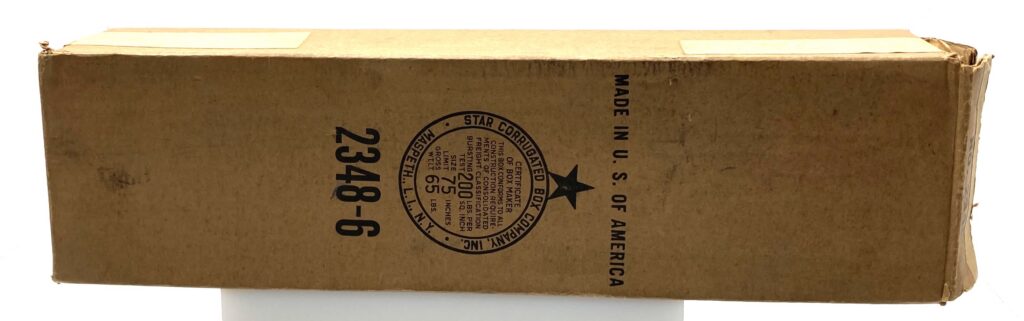

STAR CONTAINER corrugated box # 2348 – 6

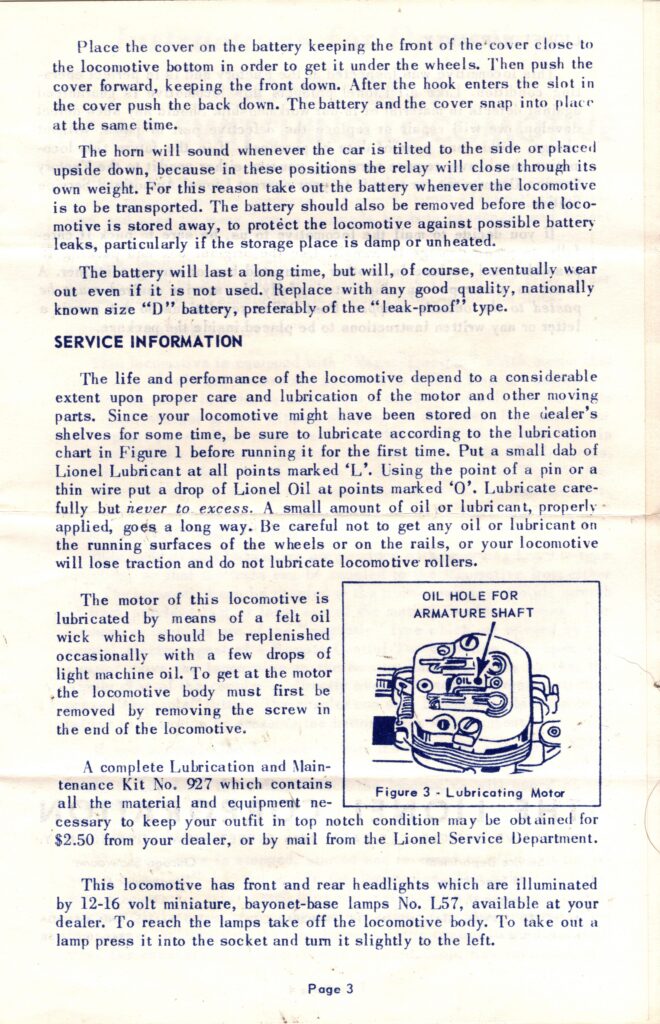

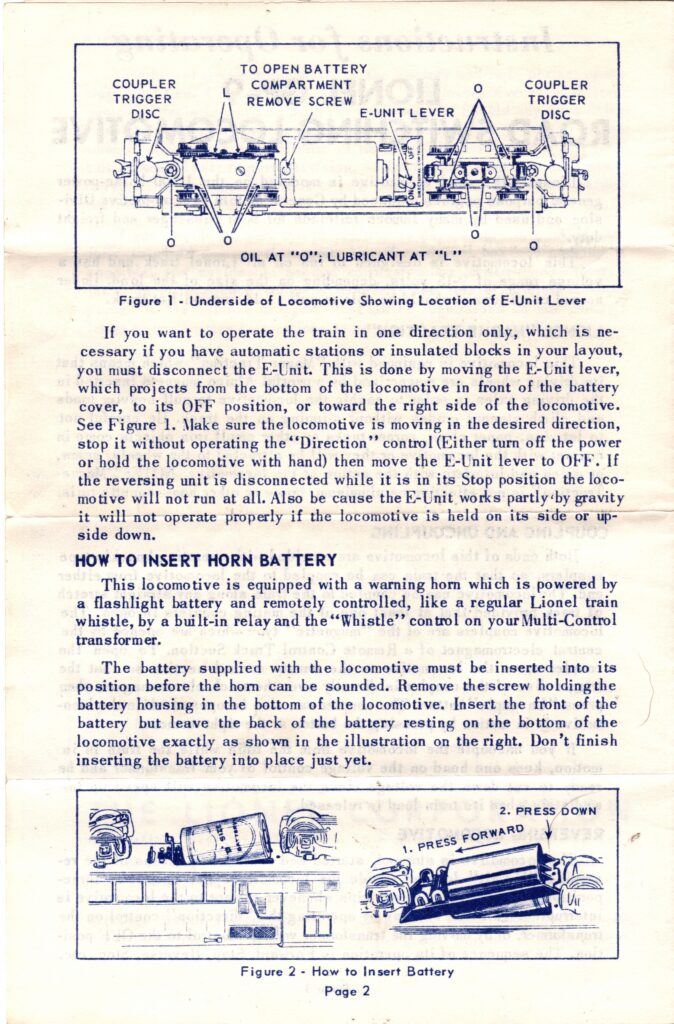

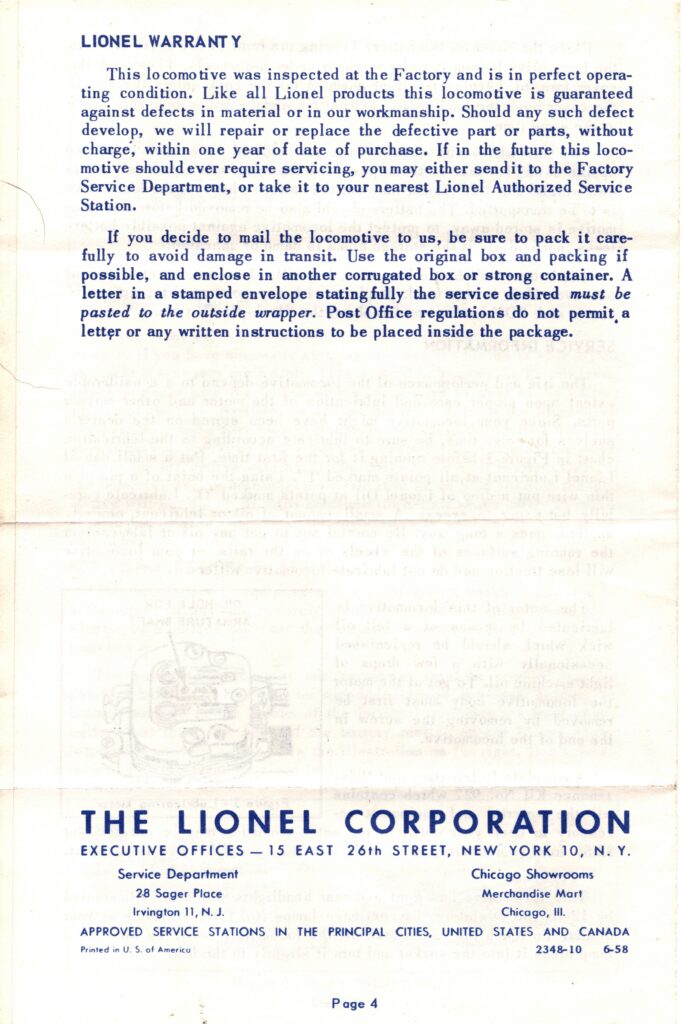

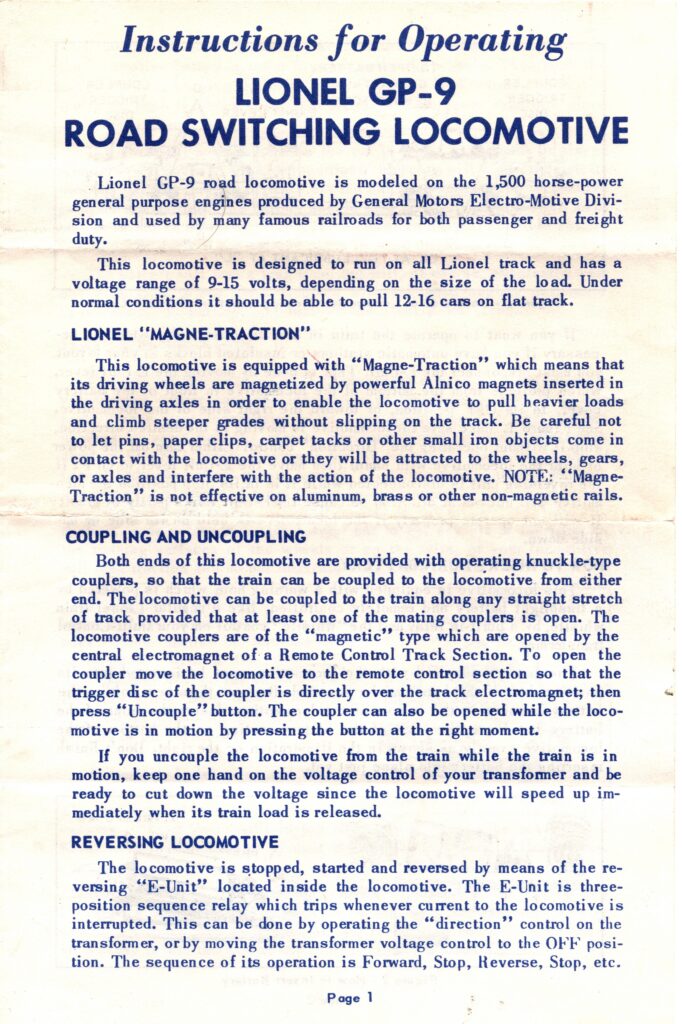

Inst. 2348 – 10 dated 6 – 58 printed in blue on white paper, 4 pages
No. 2348 M ST L GP 9’s 1958
red shell painted red and white with white and red heat stamped lettering
DE0106
ANGLE VIEW
END VIEW
TOP VIEW
VIEW WITH SHELL REMOVED
one vertical motor
3 position E unit
with magnetraction
lights on both ends
number boards and headlight lens on both ends
with horn
operating couplers on both ends
with ornamental horns
with front wire handrails
with belly fuel tank
STAR CONTAINER corrugated box # 2348 – 6
Inst. 2348 – 10 dated 6 – 58 printed in blue on white paper, 4 pages
THE No. 2349 NORTHERN PACIFIC GP 9’s
No. 2349 NORTHERN PACIFIC GP 9’s 1960
black shell painted black, gold & red with gold & red heat stamped lettering
DE0107
ANGLE VIEW
END VIEW
TOP VIEW
VIEW WITH SHELL REMOVED
one vertical motor
3 position E unit
with magneatraction
lights on both ends
number boards and headlight lens on both ends
with horn
operating couplers on both ends
with ornamental horns with front wire handrails
with belly fuel tank
MEAD CONTAINERS corrugated perforated box # 2349-10
with rubber stamped X on both ends after No. 2349
with perforated sleeve # 2349 – 12
Inst # 2348 – 10 dated 6 – 58 printed in blue on white paper
No. 2349 NORTHERN PACIFIC GP 9’s 1960
gray shell painted black, gold & red with gold & red heat stamped lettering
DE0273
ANGLE VIEW
END VIEW
TOP VIEW
VIEW WITH SHELL REMOVED
one vertical motor
3 position E unit
with magnetraction
lights on both ends
number boards and headlight lens on both ends
with horn
operating couplers on both ends
with ornamental horns with front wire handrails
with belly fuel tank
UNITED CONTAINER corrugated perforated box # 2349 – 10
with perforated sleeve # 2349 – 12
Inst # 2348 – 10 dated 6 – 58 printed in blue on white paper
THE No. 2359 BOSTON & MAINE GP 9’s
No. 2359 BOSTON & MAINE GP 9’s 1961 – 1962
gray shell painted blue, black and white with white and black lettering on cab sides and logo on sides DE0108
ANGLE VIEW
END VIEW
TOP VIEW
VIEW WITH SHELL REMOVED
one vertical motor
3 position E unit
with magnetraction
lights on both ends
number boards and headlight lens on both ends
with horn
operating couplers on both ends
with ornamental horns with front wire handrails
with belly fuel tank
MEAD perforated box # 2359 – 13
with orange sleeve # 2349 – 12
Inst # 2348 – 14 dated 8 – 59 printed blue on white paper
THE No. 2365 C & O GP 7’s
No. 2365 C & O GP 7’s 1962 – 1963
black shell painted blue with yellow heat stamped lettering
DE0109
ANGLE VIEW
END VIEW
TOP VIEW
VIEW WITH SHELL REMOVED
one vertical motor
3 position E unit
with magnetraction
lights on both ends
number boards and headlight lens on both ends
without horn
non operating couplers on both ends
with ornamental horns
with front wire handrails
without belly fuel tank
NEED PICTURE OF BOX
MEAD corrugated box # 2365 – 12
Inst # 2365 – 11 dated 6 – 62 printed in black on white
WHERE WOULD YOU LIKE TO GO NOW ?
