THE FOLLOWING LATER WORK CABOOSES WILL BE DOCUMENTED BELOW
Click or Scroll Down
GENERAL INFORMATION
No. 6119 D L & W WORK CABOOSES
No. 6119 – 25 D L & W WORK CABOOSES
No. 6119 – 50 D L & W WORK CABOOSES
No. 6119 – 75 D L & W WORK CABOOSES
No. 6119 – 100 D L & W WORK CABOOSES
No. 6119 – 125 RESCUE UNITS
No. 6120 WORK CABOOSES
No. 6130 SANTA FE WORK CABOOSES
No. 6219 C & O WORK CABOOSES
No. 6814 RESCUE UNITS
No. 6814 – 50 RESCUE UNITS
No. 6824 MEDICAL CABOOSES
The cabs on the latter work cabooses had three mold variations as shown and described below
cab mold TYPE 1
without builders plate in lower left corner of cab
with slats below name plate in center of cab
the name plates can come stamped or blank
cab mold TYPE 2
with builders plate in lower left corner of cab
the builders plate can come stamped or blank
with slats below name plate in center of cab
the name plates can come stamped or blank
cab mold TYPE 3
with builders plate in lower left corner of cab
the builders plate can come stamped or blank
without slats below name plate in center of cab
the name plates can come stamped or blank
The cabs part # 6119 – 6 were produced in a two cavity mold
cabs were molded in red, gray, yellow, brown, orange and olive plastic
shell produced in cavity 1
shell produced in cavity 2
The trays were produced in a three cavity mold
trays were molded in red, gray, yellow, brown, orange and olive plastic
tray produced in cavity1
tray produced in cavity 2
tray produced in cavity 3
THE No. 6119 D L & W WORK CABOOSES
No. 6119 D L & W WORK CABOOSES 1955
unpainted red tray & cab
with short diecast smoke stack
box flap # 6119-10, w/LINER
C0168
THE No. 6119 – 25 D L & W WORK CABOOSES
No. 6119 – 25 D L & W WORK CABOOSES 1956
unpainted tray lighter orange than unpainted orange cab and dark orange painted frame
with short diecast smoke stack
late classic box flap # 6119-32, with liner
C0170
comparison for differences in shades of orange
top from previous entry
bottom from following entry
No. 6119 – 25 D L & W WORK CABOOSES 1956
unpainted orange tray matches unpainted orange cab dark orange frame
with short diecast smoke stack
late classic box flap # 6119-32, with liner
C0169
THE No. 6119 – 50 D L & W WORK CABOOSES
No. 6119 – 50 D L & W WORK CABOOSES 1956
unpainted brown tray matches unpainted brown cab
with short diecast smoke stack
late classic box flap # 6119-57
C0301
comparison for differences in shades of brown
top from previous entry
bottom from following entry
No. 6119 – 50 D L & W WORK CABOOSES 1956
unpainted tray lighter brown than unpainted dark brown cab
with short diecast smoke stack
late classic box flap # 6119-57
C0171
THE No. 6119 – 75 D L & W WORK CABOOSES
No. 6119 – 75 D L & W WORK CABOOSE (R10)
unpainted gray tray matches unpainted gray cab with blue heat stamped lettering
gray painted frame with blue heat stamped serif lettering
with short diecast smoke stack
C0320
opposite side with blue heat stamped lettering on cab & frame
No. 6119 – 75 D L & W WORK CABOOSES 1957
unpainted gray tray matches unpainted gray cab
gray painted frame with black heat stamped gothic lettering
with short diecast smoke stack
late classic box flap # 6119-76
C0172
No. 6119 – 75 D L & W WORK CABOOSES 1957
unpainted gray tray matches unpainted gray cab
gray painted frame with black rubber stamped widely spaced serif lettering
with short diecast smoke stack
late classic box flap # 6119-76
C0173
No. 6119 – 75 D L & W WORK CABOOSES 1957
unpainted gray tray matches unpainted gray cab
gray painted frame with black rubber stamped closely spaced serif lettering
with short diecast smoke stack
late classic box flap # 6119-76
C0174
THE No. 6119 – 100 D L & W WORK CABOOSES

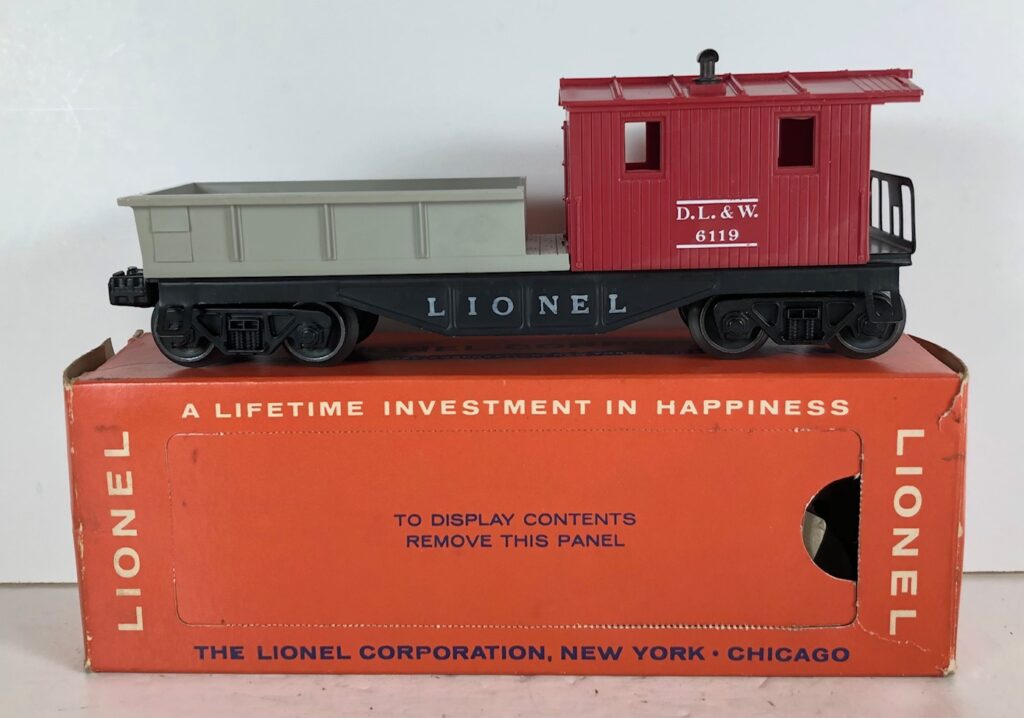

No. 6119 – 100 D L & W WORK CABOOSES 1957
black painted frame, with white heat stamped gothic lettering
red unpainted cab, gray unpainted tray
with short diecast smoke stack
C0175
No. 6119 – 100 D L & W WORK CABOOSES 1957
black painted frame, without lettering
red unpainted cab, gray unpainted tray
with short diecast smoke stack
C0285
No. 6119 – 100 D L & W WORK CABOOSES 1957
black painted frame, with white rubber stamped serif lettering
red unpainted cab, gray unpainted tray
with short diecast smoke stack
box flap # 6119-101
C0177
No. 6119 – 100 D L & W WORK CABOOSES 1959
black painted frame, with white heat stamped gothic lettering
red unpainted cab, gray unpainted tray
with short diecast smoke stack

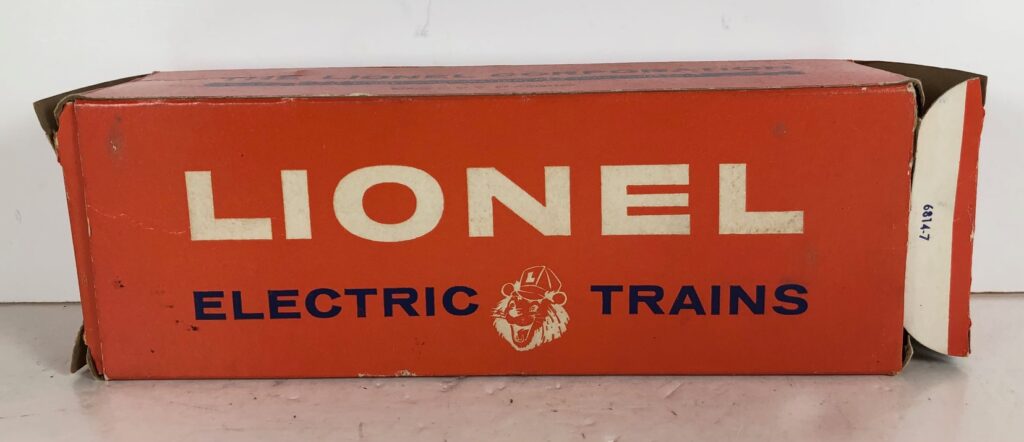

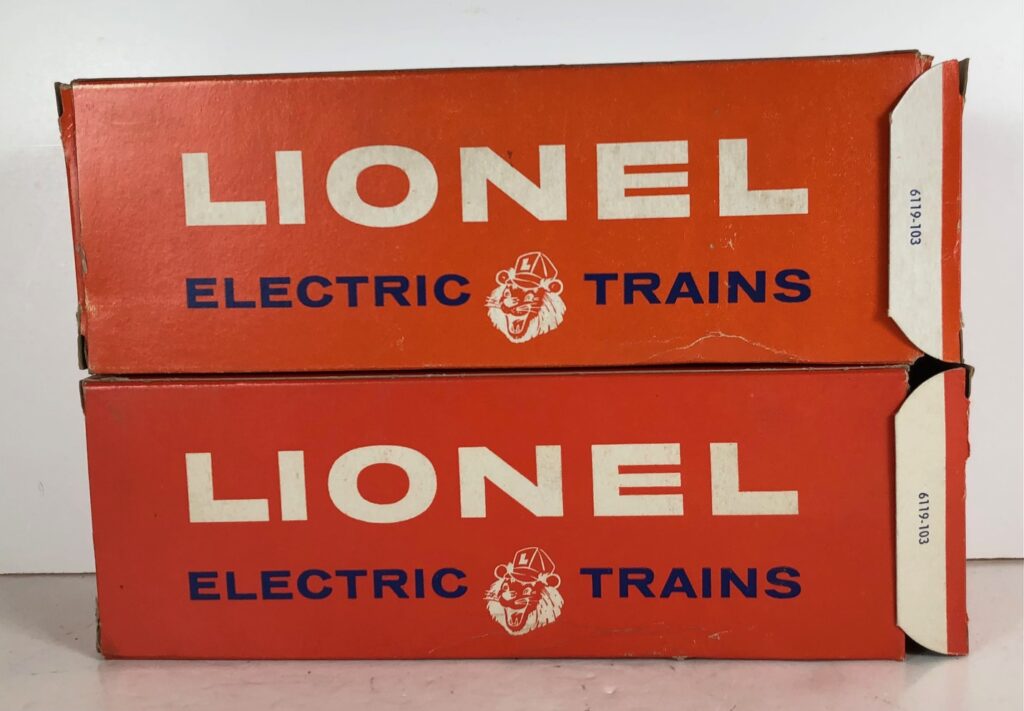

perforated box flap # 6119-103
C0181
No. 6119 – 100 D L & W WORK CABOOSES 1961
black painted frame, with white rubber stamped serif lettering
red unpainted cab, gray unpainted tray
with short diecast smoke stack
with 1 operating & 1 dummy early AAR trucks
C0180
No. 6119 – 100 D L & W WORK CABOOSES 1966
black painted frame, with white heat stamped gothic lettering
red painted cab, gray unpainted tray
with short diecast smoke stack
C0182
No. 6119 – 100 D L & W WORK CABOOSES 1966
blackened frame, without lettering
red unpainted cab, gray unpainted tray with BUILT BY LIONEL, with slats
with short diecast smoke stack
with 1 operating & 1 non operating
C0183
No. 6119 – 100 D L & W WORK CABOOSES 1966
blackened frame, without lettering
red unpainted cab, gray unpainted tray with BUILT BY LIONEL, without slats
with short diecast smoke stack
with 1 operating & 1 non operating late AAR trucks
C0184
No. 6119 – 100 D L & W WORK CABOOSES
NEED PICTURE
with lettering on sides of gray tray
No. 6119 – 100 SANTA FE WORK CABOOSES 1965
red unpainted cab, gray unpainted tray
with blank builders plate without slates below logo
goldish blacked frame, without lettering
with short diecast smoke stack
with 1 operating late & 1 dummy early AAR or 2 operating late AAR trucks

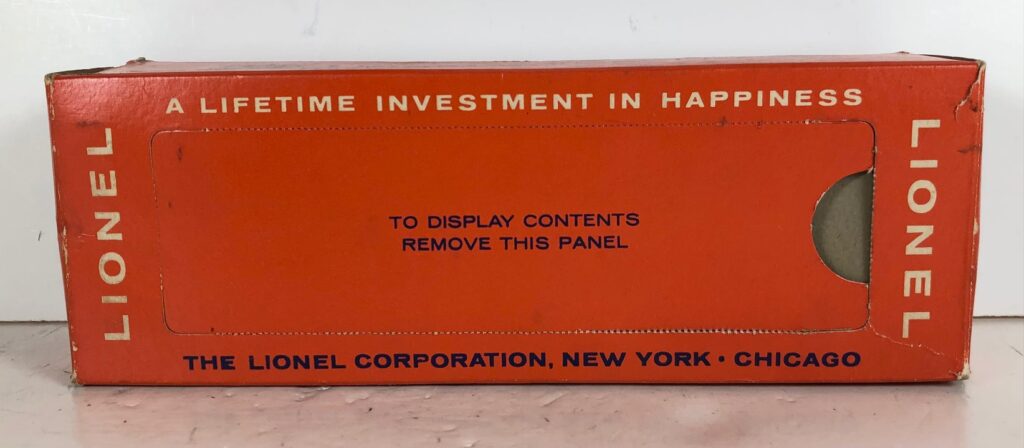

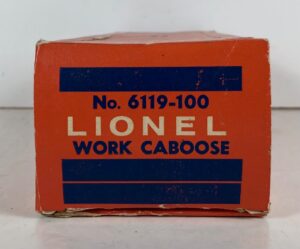

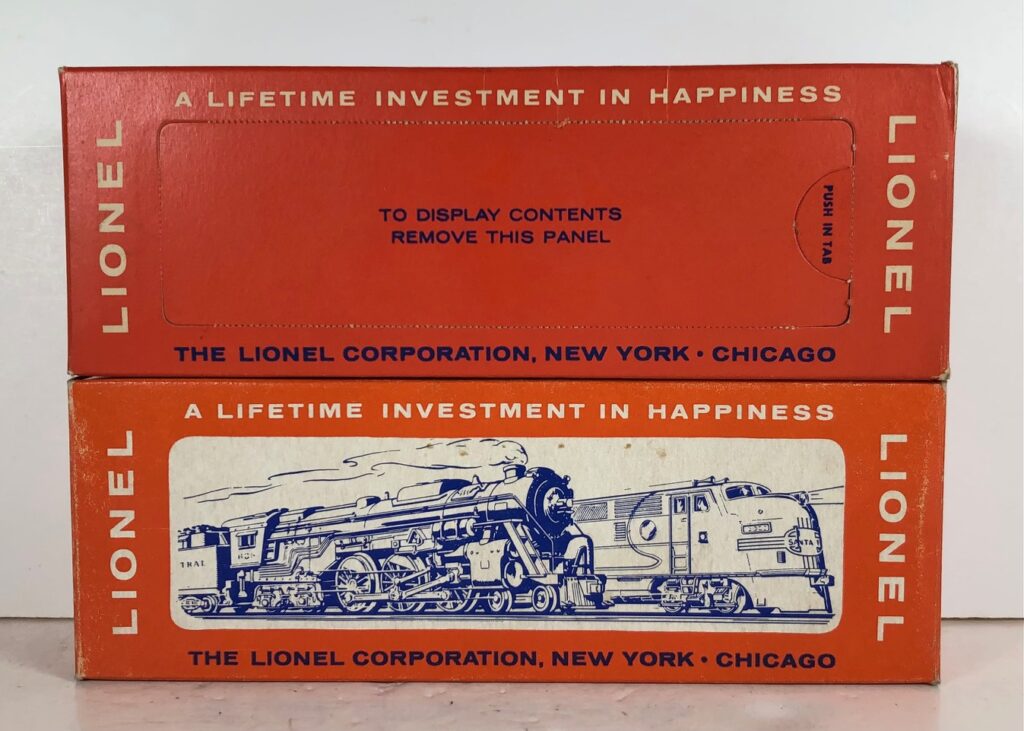

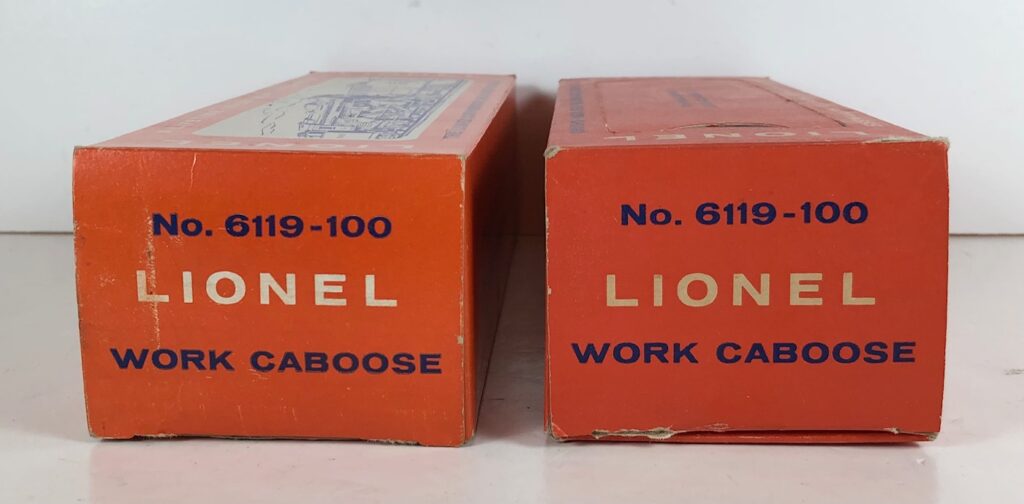

INTERESTING OVER STAMPED No. 6119 – 100 D L & W WORK CABOOSE BOX
No. 6814 perforated box flap # 6814 – 7 over stamped for No. 6119 – 100
Courtesy of “THE LEVERICH COLLECTION”
top view of perforated top
showing No. 6814 perforated box flap # 6814 – 7
THE No. 6119 – 125 RESCUE UNITS
No. 6119 – 125 RESCUE UNIT
molded olive plastic shell unpainted
black painted frame, with white rubber stamped serif lettering
with short diecast smoke stack
C0281
THE No. 6120 WORK CABOOSES
No. 6120 WORK CABOOSES
molded yellow plastic shell, unpainted
without smoke stack
with open smoke stack holes
with 1 non operating & dummy ARCH BAR trucks
C0187
THE No. 6130 SANTA FE WORK CABOOSES
No. 6130 SANTA FE WORK CABOOSES 1959 – 1965
molded gray cab & tray painted red
without builders plate
with slates below logo
black painted frame, with white rubber stamped serif lettering
with 1 operating late & 1 dummy early AAR trucks
C0189
No. 6130 SANTA FE WORK CABOOSES 1965
molded gray cab & tray, painted red
without builders plate
with slats below logo
with black painted frame, with white heat stamped gothic lettering
with 1 operating late & 1 dummy early AAR trucks
picture box without flap #
C0191
No. 6130 SANTA FE WORK CABOOSES
red painted cab & tray
with blank builders plate
with slates below logo
blackened frame, unlettered
with 1operating & 1 non operating late AAR trucks
cellophane box flap # 12-234 over stickered 6130 on ends
C0193
No. 6130 SANTA FE WORK CABOOSES
red unpainted cab & tray
with blank builders plate
without slats below logo
blacked frame, unlettered
with 2 operating late ARR trucks
C0300
No. 6130 SANTA FE WORK CABOOSES 1968 – 1969
red unpainted cab & tray
with blank builders plate
without slats below logo
blacked frame showing a goldish color, unlettered
with 1 operating & 1 non operating late AAR trucks
C0316
Hagerstown box flap # 12 – 278
rubber stamped “No. 6130 WORK CABOOSE” in black on both ends
THE No. 6219 C & O WORK CABOOSES
No. 6219 C & O WORK CABOOSES 1960
molded light gray plastic, painted blue
with yellow rubber stamped lettering
blackened frame with yellow rubber stamped lettering
unboxed
C0197
No. 6219 C & O WORK CABOOSES 1960
molded light gray plastic, painted blue
with yellow rubber stamped lettering
blackened frame with yellow – orange rubber stamped lettering
unboxed
C0276
THE No. 6814 RESCUE UNITS
No. 6814 RESCUE UNITS 1959
cab & tray painted white
with red heat stamped lettering
gray painted frame with black heat stamped serif lettering
with 1 operating & 1 dummy early AAR trucks
perforated box flap # 6814-7
C0198
cab & tray painted white
with red heat stamped lettering
gray painted frame with black heat stamped sanserif lettering
with 1 operating & 1 dummy early AAR trucks
Note missing tray & contents
Courtesy of the Leverich Collection
THE No. 6814 – 50 RESCUE UNITS
No. 6814 – 50 RESCUE UNITS 1964
cab & tray painted white
with red heat stamped lettering
black painted frame with white heat stamped gothic lettering
with 1 operating & 1 dummy early AAR trucks
C0223
THE No. 6824 MEDICAL CABOOSES
No. 6824 MEDICAL CABOOSES 1960
olive painted cab & tray
with white heat stamped lettering
olive painted frame with white rubber stamped lettering
C0259
